SmartPool Sunheater Installation And Operation Manual page 6

INSTALLATION OF MORE THAN ONE
END
CAP
END
CAP

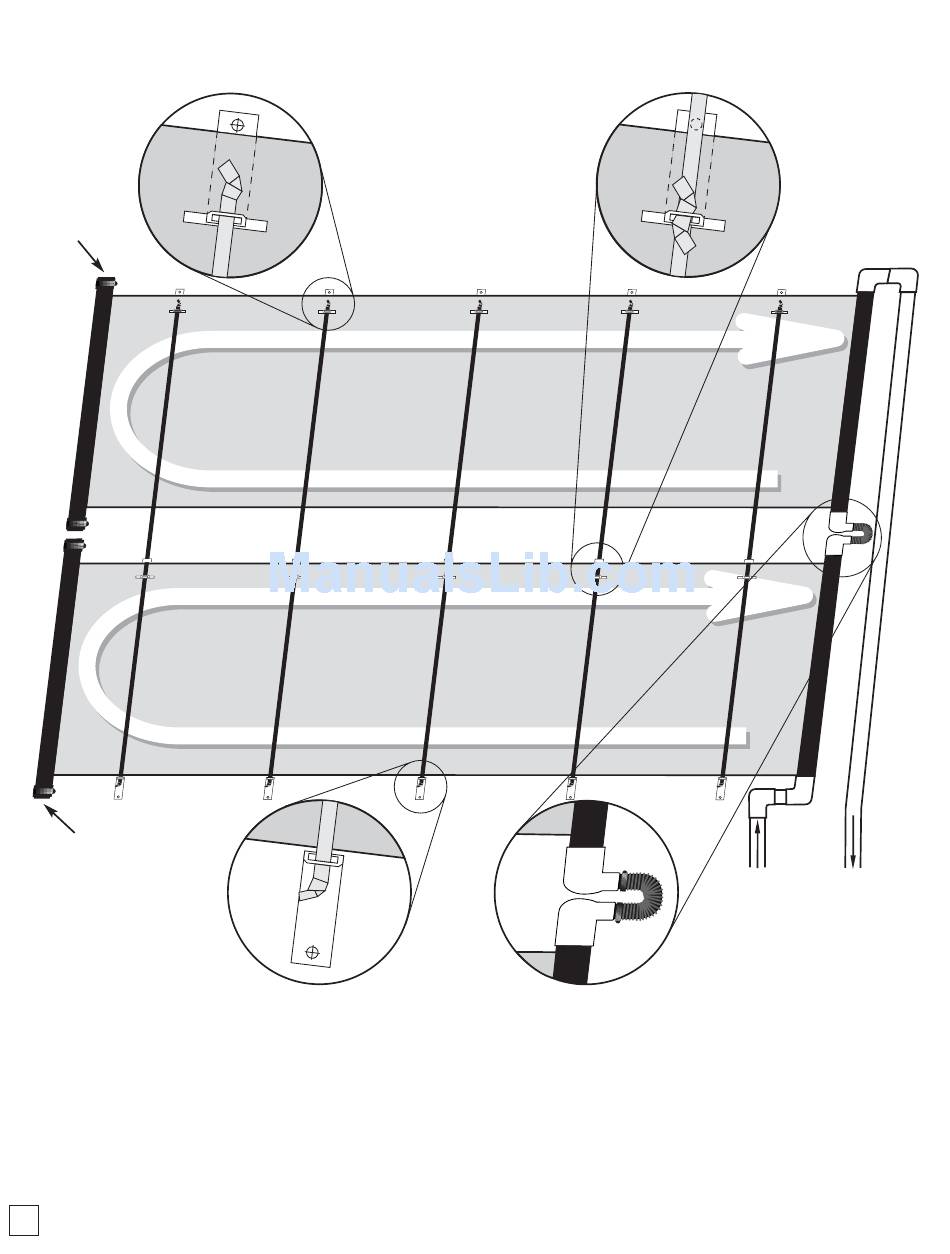

• Slots are provided in each solar collector for mounting with brackets as shown.
• Maximum of two 4'x20' collectors may be plumbed in series, or three 2'x20' collectors.
• Pitch the collectors slightly toward the end caps for winterizing and draining (1"-2").
• Do not use mounting hardware other than what is available from the manufacturer.
Your warranty is void if other hardware is used.
6
COLLECTOR
