#PKA1XX
Knight's Armor Pen Kit
PKA100
PKA110
•
Kit Features:
• Easy to turn with a straight or profi led barrel
• Single tube design
• Minimum parts - easy to assemble
• Available in Multiple fi nishes
• Uses Parker® Style Refi ll
• Attractive Medieval Times Styling
• Overall length: 5 -1/16"
Required Accessories:
• 7mm Pen Mandrel
• Drill Bit: 3/8" #PKEXEC-38
• Bushing set(2pc) #PKMAJSQBU
• Barrel Trimming set #PKTRIM38
• Live Tailstock Center
• 2 Part Epoxy Glue or Insta Cure (Cyanoacrylate) Glue
• Pen Blank: Minimum Size - 3/4" x 3-1/4" Long
Tip Coupler
Tip
Spring
Preparing the Blank:
• Cut a blank to the length of the tube and add 1/16" for squaring off.
• Drill a 3/8" hole lengthwise through the blank.
• Spread glue over the tube, insert into the blank with a twisting motion to spread the glue evenly inside.
• Center the tube lengthwise inside the blank.
• W hen the glue is dry, square the ends of the blank. Use a 3/8" barrel trimmer shaft or a universal pen blank squar-
ing jig with a power disc sander. Take the excess material down fl ush with the ends of the brass tube. (do not trim
beyond the length of the tube since this may interfere with operation of the mechanism and assembly).

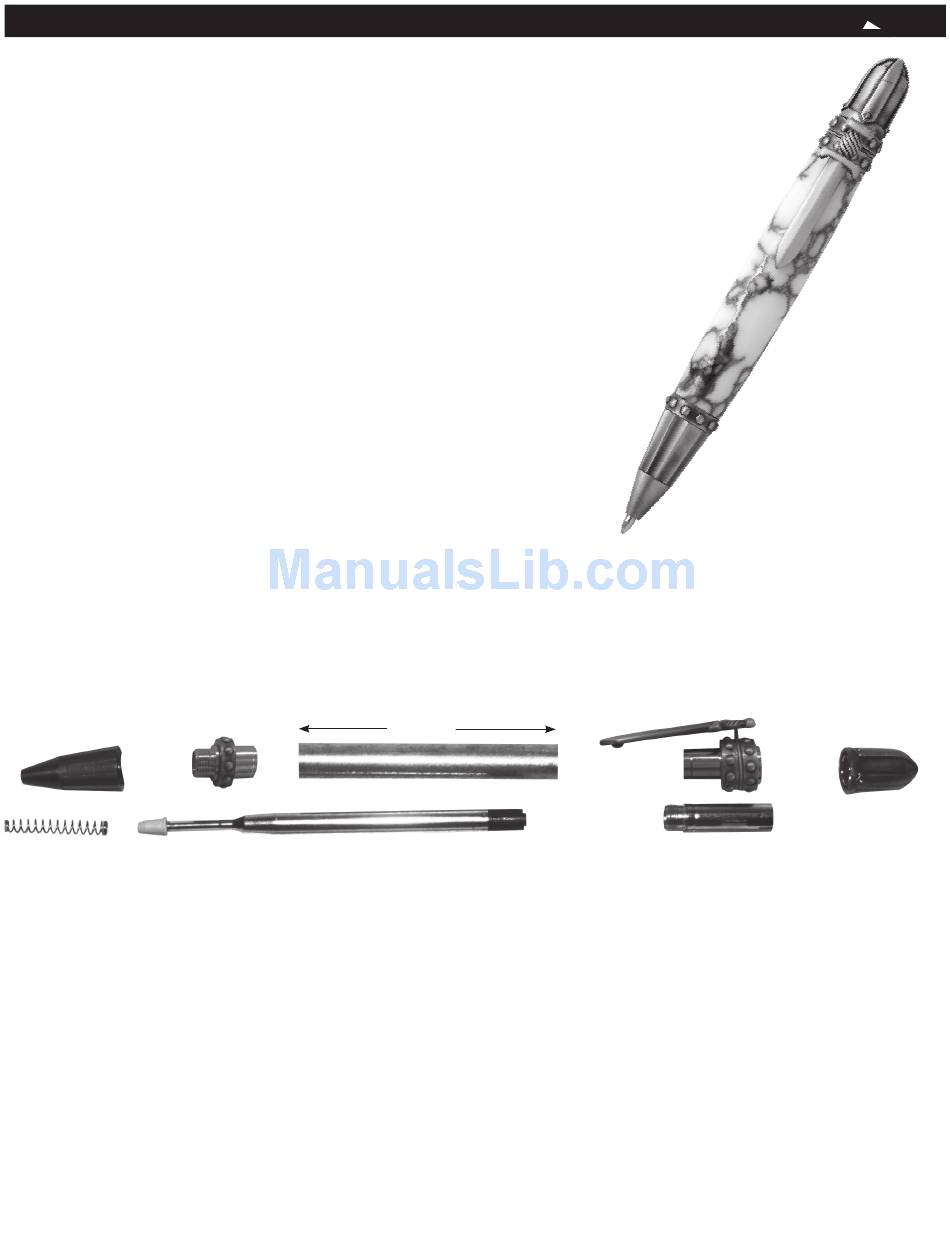

DIAGRAM A / PARTS LAYOUT
Tube/Barrel
2.665"
Refi ll
PSI Woodworking Products
PSI Woodworking Products
Clip Assembly
Twist Mechanism
Cap
