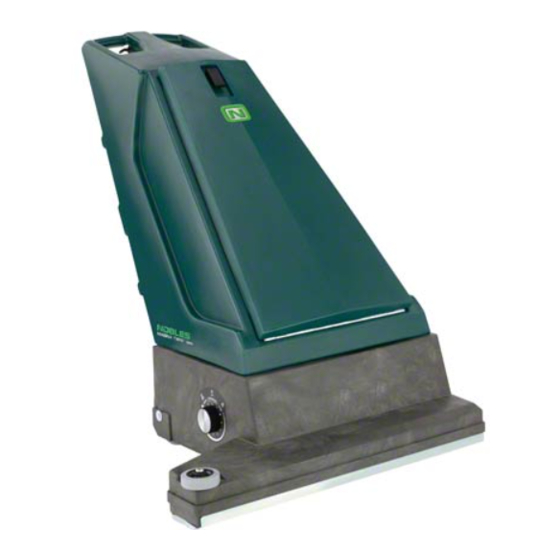

Magna Twin
Model No.:
608577 – 120V
609227 – 120V CSA
TENNANT COMPANY
701 NORTH LILAC DRIVE
MINNEAPOLIS, MN 55422
MAILING ADDRESS:
TENNANT COMPANY
P.O. BOX 1452
MINNEAPOLIS, MN 55440–1452
NOBLES CUSTOMER SERVICE:
1–800–365–6625
FAX: 1–800–678–4240
TECHNICAL SUPPORT:
1–800–522–7839 EXT. 5356
Home
Find... Go To..
t
3000
Wide Area Vacuum
Operator and Parts Manual
Rev. 01 (03-04)
608582
Advertisement
Table of Contents
Related Manuals for Nobles Magna Twin 3000
Summary of Contents for Nobles Magna Twin 3000
- Page 1 609227 – 120V CSA TENNANT COMPANY 701 NORTH LILAC DRIVE MINNEAPOLIS, MN 55422 MAILING ADDRESS: TENNANT COMPANY P.O. BOX 1452 MINNEAPOLIS, MN 55440–1452 NOBLES CUSTOMER SERVICE: 1–800–365–6625 FAX: 1–800–678–4240 608582 TECHNICAL SUPPORT: Rev. 01 (03-04) 1–800–522–7839 EXT. 5356 Home Find... Go To..
-
Page 2: Table Of Contents
1999, 2004 Tennant Company Printed in U.S.A. subsidiaries. Nobles is a registered United States trademark of Tennant Company. This machine will provide excellent service. However, Magna Twin is a United States trademark of Tennant Company. the best results will be obtained at minimum costs if: The machine is operated with reasonable care. -
Page 3: Safety Precautions
OPERATION The following information signals potentially dangerous conditions to the operator or SAFETY PRECAUTIONS equipment: FOR SAFETY: This machine is intended for commercial use only. 1. Do not operate machine: It is designed exclusively to pick up dirt, dry debris and dust in an indoor environment and is –... -
Page 4: Grounding Instructions
OPERATION GROUNDING INSTRUCTIONS Grounded Machine must be grounded. If it should 3 Hole Outlet malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electrical shock. This machine is equipped with a cord having an equipment–grounding conductor and grounding plug. -
Page 5: Machine Setup
OPERATION MACHINE SETUP 1. Install selected filter bag by opening bag access door and sliding rubber collar on bag completely onto the intake chamber. Make sure bag is totally within housing before closing door (Figure 1). FOR SAFETY: Do not operate machine without bag and/or filters in place. -
Page 6: Hose Attachment Operation
OPERATION ATTENTION: To prevent overheating, do not operate brush motor without vacuum motor running. 2. Pull either one or both triggers to activate brush motor. With motor running, push machine forward to vacuum. Revolving brush should help assist in propelling of machine (Figure 5). FIG. -
Page 7: Weekly Maintenance
OPERATION WEEKLY MAINTENANCE (Every 20 Hours of Operation) 1. Inspect intake chamber for any accumulated debris. Clean if necessary (Figure 8). FIG. 3. Check brush drive belt for proper tension and alignment. 4. Check vacuum bag for tears, replace if necessary. FIG. -
Page 8: Belt Adjustment Or Replacement
OPERATION FIG. FIG. 14 3. Slide complete brush and block assembly from 3. To replace belt, follow BRUSH & BELT lower housing, and turn rubber blocks until ADJUSTMENT instructions. Use only original Number “2” appears with arrows pointing toward equipment replacement parts. front of machine. -
Page 9: Trouble Shooting
OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine not operating. Machine not operating. Power cord not plugged in. Connect to power supply. Damaged power cord. Contact Service Center. Tripped circuit breaker in building. Reset breaker in building. Loose or damaged internal wiring. Contact Service Center. -
Page 10: Specifications
OPERATION SPECIFICATIONS MODEL Magna Twint 3000 LENGTH 1010 mm (39.75 in) WIDTH 775 mm (30.5 in) HEIGHT 914 mm (36 in) WEIGHT 41.28 Kg (91 lb) CLEANING PATH WIDTH 762 mm (30 in) COVERAGE RATE (MAX) 4,267 m (14,000 sq ft) per hour VACUUM BAG 35.24 L (1 bushel) BRUSH MOTOR... -
Page 11: Electrical Diagrams
ELECTRICAL DIAGRAMS 120V WIRING DIAGRAM 115 VAC, 1 PHASE, 60 HZ, 15 AMP POWER THREE WIRE CABLE TO HANDLE ASSY. VACUUM SWITCH BRUSH MOTOR SWITCH BLACK BLACK VACUUM MOTOR VACUUM MOTOR 6 AMP CIRCUIT BREAKER BRUSH MOTOR BLACK WHITE Magna Twin t 3000 (03–04) Home Find... -
Page 12: Parts List
PARTS LIST UPPER HOUSING GROUP 43 44 39 41 49 50 Magna Twin t 3000 (03–04) Home Find... Go To.. - Page 13 (STANDARD) 579029 NUT, M06 X 1.0 ∇ 57 DHOSE, 3” X 23” BLACK 614132 ASM., HANDLE, GREEN 608252 608484 DECAL, “MAGNA TWIN 3000” 608253 CLAMP, HOSE 4” GEAR ∇ 573042000 DECAL, “CAUTION VAC ON” 039708155 ASM, VAC/GASKET DMOTOR, VAC FAN...
-
Page 14: Lower Housing Group
PARTS LIST LOWER HOUSING GROUP 3 60 Magna Twin t 3000 (03–04) Home Find... Go To.. - Page 15 DPULLEY, 1.625” DIA BRUSH 578413 101107 FRAME, LOWER CHARCOAL 578261000 WASHER, .31 X .83 140356 SCREW, 1/4–20 X 1” 608185 DECAL, NOBLES LOGO 6.75” 069767136 CIRCUIT BREAKER, 7 AMP DBEARING 32492 WASHER, FLAT 0.38 039708064 630508 O–RING, 9.2 ID X 12.7 578728 WASHER, M6.1 LOCK...
-
Page 16: Console Group
PARTS LIST CONSOLE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. DCORD, POWER 14/3 – 75’ 575577 CONTROLBOX, TRIGGER 573082 DSWITCH, ROCKER 578005000 573059 WIRE HARNESS, 14/4 DSTRAIN RELIEF 578002000 ARM, TRIGGER CONTROLBOX 130181 578082000 SPACER, TRIGGER 578260000 ASM, WIRE 16 GA. BLACK 578186000 WASHER, M4.3 X 12 X 1.0 FLT 573406... -
Page 17: Options
OPTIONS WAND AND HOSE KIT PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. ∇ DKIT, WAND/HOSE ACCESSORIES DTOOL, RUG & FLOOR W/WHEELS 573070 605588 ∇ DASM., HOSE 1–1/4” X 28” BLACK DTOOL, DUST BRUSH 606159 190715 DHOSE, VAC 1–1/4” X 28” BLACK DTOOL, CREVICE 160475 190714...
