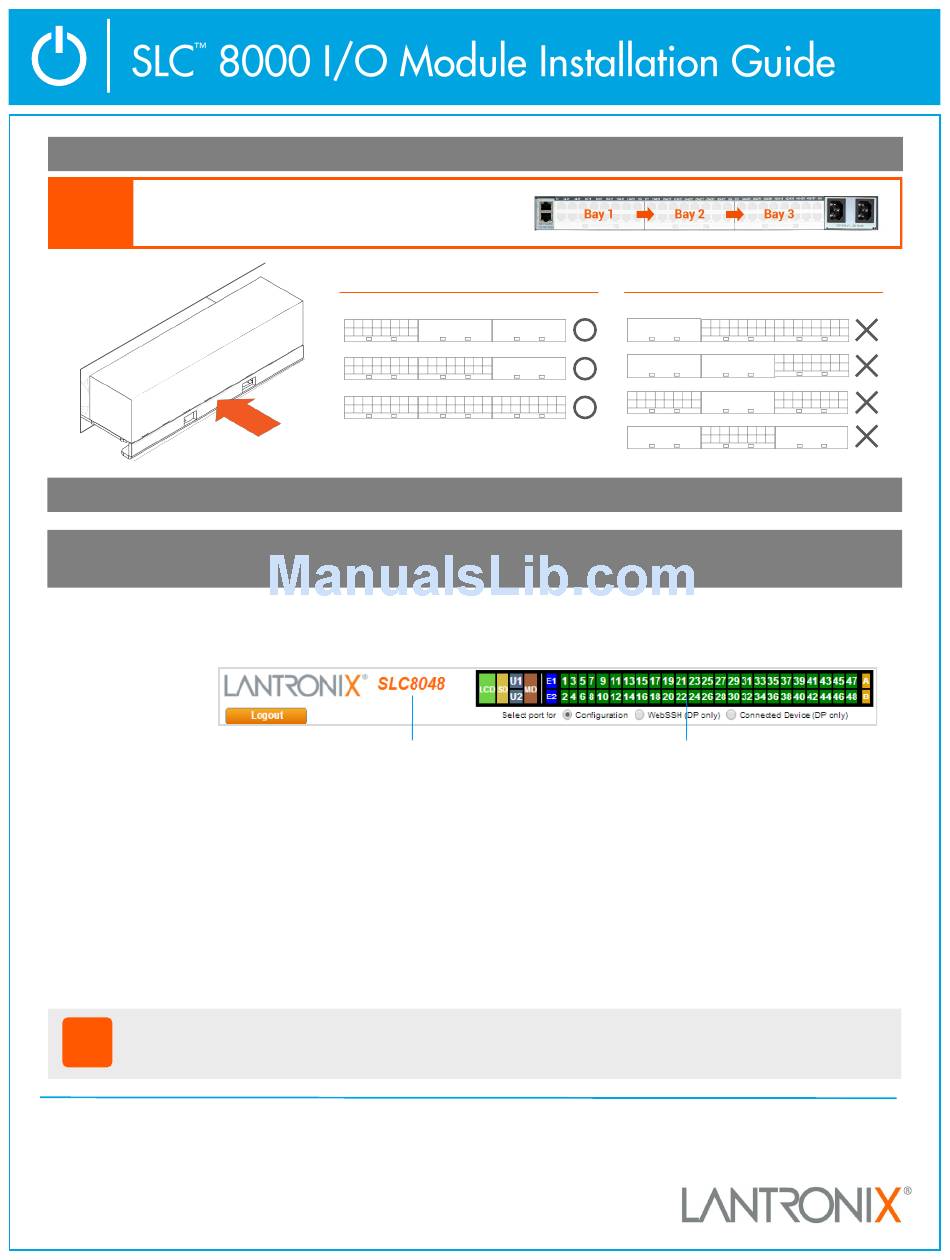

Lantronix SLC 8000 Installation Manual page 2

3. Insert the new I/O module into the unpopulated bay with the module's blades aligned to the SLC 8000 unit's rails.
Note
Each Bay must be populated in order from 1 to 3.
4. Plug the power cord(s) back in and power on the SLC 8000.
5. The SLC 8000 automatically detects the new module. After boot up has completed, you can confirm that the new
module has been detected via the Web Manager's About Page (
A) Web Manager: While the model number will change to reflect the final port count (e.g. SLC8024, SLC8032,
SLC8040, SLC8048), the dashboard will also show the newly added active ports in green.
The active modules can be checked in order from Bay 1 to 3 under I/O Module Type(s):
(e.g. RJ45-08, RJ45-16, USB-16)
B) Command Line Interface
admin version
show sysstatus
!
Thank you for choosing Lantronix. Please register this product in order to receive notifications for
firmware and documentation updates at www.lantronix.com/product-registration.
Contact Technical Support
For technical support queries, visit http://www.lantronix.com/support
Latest Firmware For the latest firmware downloads, visit
IP Address Assignment Tutorial To view a tutorial on how to assign an IP address, visit
© 2015 Lantronix, Inc. Lantronix is a registered trademark, and SLC is a trademark of Lantronix, Inc. All other trademarks are the
property of their respective owners. Specifications subject to change without notice. 900-722-R Rev C
Correct
Bay 1 Bay 2
Empty
Model Number
Note: Using this command allows you to check the new model number reflecting the
final port count, and all of installed I/O modules under I/O Module Type(s).
Note: Using this command also allows you to check how many device ports are
detected and what the status of each one is.
or call (800) 422-7044 Monday – Friday from 6:00 a.m. – 5:00 p.m., Pacific Time, excluding holidays.
