Broadcast Wireless Systems Ltd
Unit 9, Swanwick Business Centre
Swanwick
Southampton
SO31 7GB
Phone: +44 (0) 01489 505034
Email:
sales@broadcastwirelesssystems.com

Advertisement

Table of Contents
loading

Summary of Contents for Broadcast Sapphire HEVC

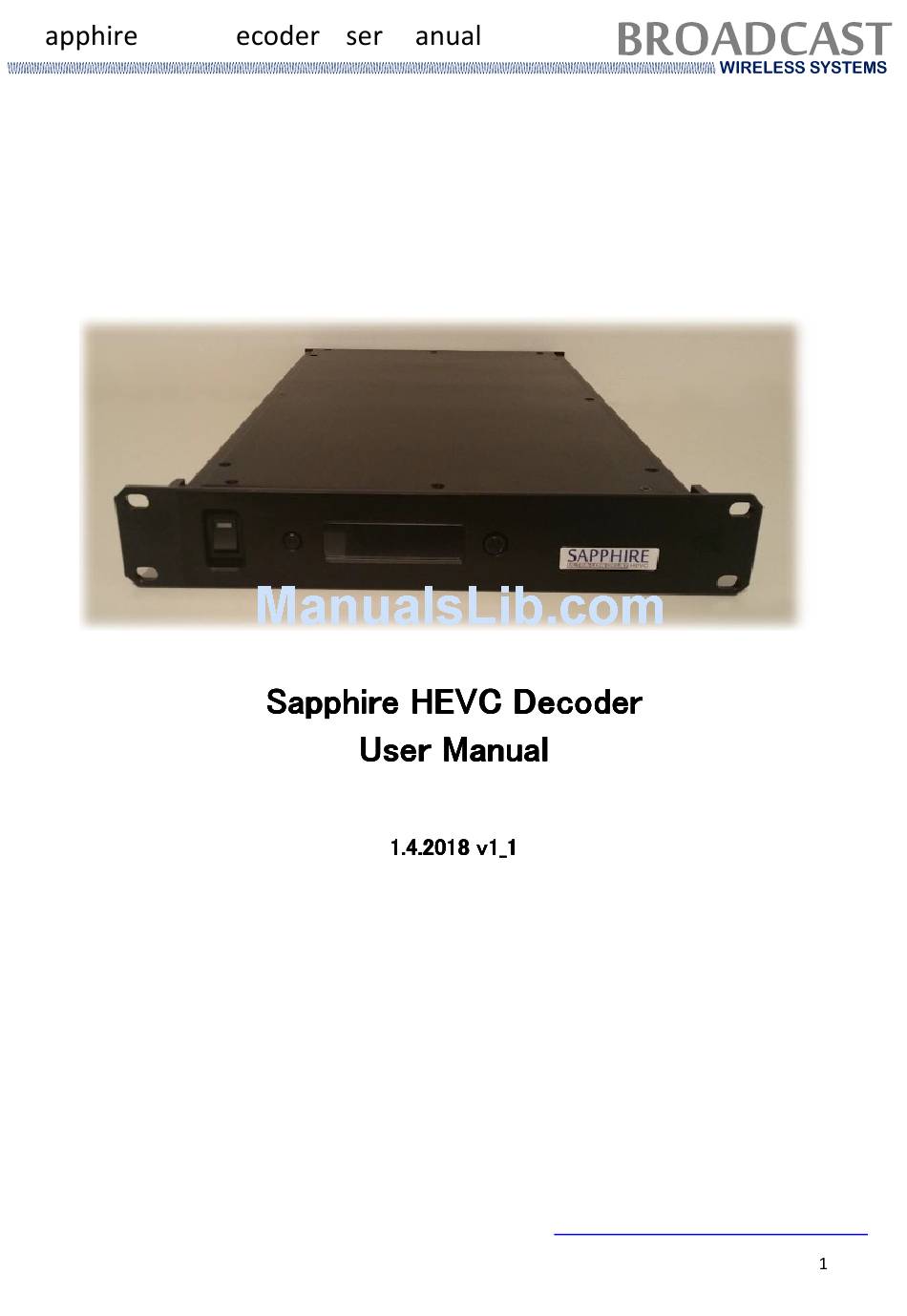

  • Page 1 ,s  Broadcast Wireless Systems Ltd Unit 9, Swanwick Business Centre Swanwick Southampton SO31 7GB Phone: +44 (0) 01489 505034 Email: sales@broadcastwirelesssystems.com...
  • Page 2 ,s  Table of Contents ,s  D ^ ,s  ,s  & & > > & ,s  ,s  &...
  • Page 3: Change History

    ,s  Change History Version Date Change Summary Author V1.0 1.4.2018 Initial Draft V1.1 9.5.2018 Minor corrections & formatting...
  • Page 4: Warranty And Support

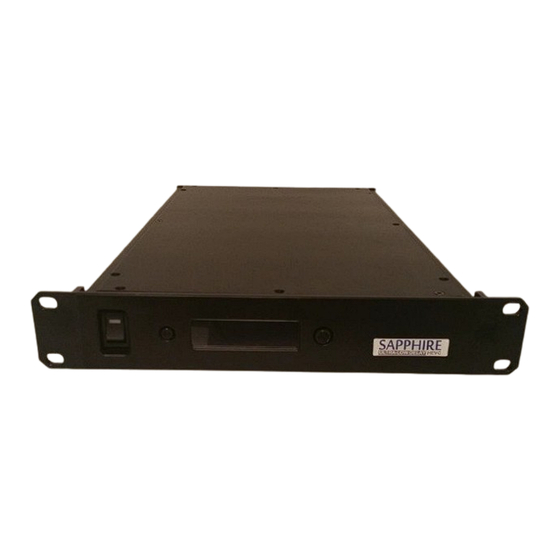

    This user manual describes the operation of the Sapphire HEVC Decoder. The user manual is split into two sections. Section one is the user guide, in which the reader is introduced to the Sapphire HEVC Decoder and its operation. The various control options are described. A guide to installation of the system is given.
  • Page 5 4K UHD formats required for contribution as the additional efficiency of HEVC makes wireless transmission of 4K possible from smaller, less powerful systems. The Sapphire HEVC Decoder offers Downlink and MCR Operators a simple and cost- effective method of upgrading their existing infrastructure to HEVC operation as it functions as a ‘bolt-on’...
  • Page 6: Safe Operating Procedures

    ,s  Safe Operating Procedures Operate within the environmental limits specified for the product. • Only authorized, trained personnel should open the product. There are no functions • that require the User to gain access to the interior of the product. EMC / Safety Approvals The equipment has been designed to meet and has been tested against the following harmonized EMC and safety standards:...
  • Page 7 Unpacking the Sapphire HEVC Decoder The Sapphire HEVC Decoder is provided in dedicated protective packaging as shown below. The Sapphire HEVC Decoder custom packaging should be retained and reused in the event that the Sapphire HEVC Decoder requires onward transportation.
  • Page 8 ,s  Connecting to the Sapphire HEVC Decoder There are two principle modes of operation for the Sapphire HEVC Decoder. Mode 1: 4K Ultra HD Mode. The input video format is 4K Ultra HD Mode 2: HD Mode. The input video format is HD video, this can be up to 4 separate HD video services.
  • Page 9 ,s  Secondary Connections in mode 1 are as follows: Ethernet Network: Ethernet is only required for web browser control of the Sapphire HEVC Decoder, or for Ethernet streaming applications. Both of these are only supported in version 1.4 software or higher. Analogue Audio: These connections are only required if analogue audio is employed.
  • Page 10 ,s  Secondary Connections in mode 2 are as follows: Ethernet Network: Ethernet is only required for web browser control of the Sapphire HEVC Decoder, or for Ethernet streaming applications. Both of these are only supported in version 1.4 software or higher. Analogue Audio: These connections are only required if analogue audio is employed.
  • Page 11 With the primary connections in place as described previously, the Sapphire HEVC Decoder is ready to be powered. The Sapphire HEVC Decoder can be powered on by connecting an IEC mains cable to the mains socket and setting the On/Off switch on the front panel to the On position. The front panel switch will illuminate to show that the unit is On.
  • Page 12: Front Panel Status Indicators

    FORMAT must match the video format generated by the encoder. Ultra Low Delay vs. Low Delay The Sapphire HEVC Decoder has two styles of decoding, Ultra Low Delay and Low Delay. In Ultra Low Delay the Decoder is optimised to minimise end to end video latency. The latencies shown below can be achieved when using a Sapphire HEVC Encoder and Decoder in Ultra Low Delay mode.
  • Page 13 Sapphire HEVC decoder. When Genlock mode is selected the Sapphire HEVC Decoder must first achieve lock to the Genlock signal, lock can be established by looking at the Genlock Lock status in the status menus.
  • Page 14 ,s  Front Panel Menus Structures Control of the Sapphire HEVC Decoder is achieved by using the Front Panel Display. During boot up the front panel display will show the text ‘INITIALISING…’. This will last for approximately 45 seconds. Until the ‘Status’ screen is shown. The Home screen is the default screen for the Sapphire HEVC Decoder.
  • Page 15 The Home menu displays the following information Video format ASI input lock status Navigating the Sapphire HEVC Decoder Menus The Enter and Cancel buttons can be used to Navigate the menu structure as shown below. h, ,s  ^/ >...
  • Page 16 ,s  The Configuration Menu Structure The Configuration menu structure with example settings is shown below. The up and down joystick button is used to navigate between menus. VIDEO FORMAT 2160p50 SAMPLE FORMAT LATENCY MODE Ultra Low Delay SERVICE SELECT MODE Manual MANUAL VIDEO PID MANUAL AUDIO PID...
  • Page 17 ,s  Status Menu Structure The Status menu structure with example settings is shown below. The up and down joystick button is used to navigate between menus. Status Menu 1 is shown below and is used to indicate selected video format and ASI Input lock status.
  • Page 18 ,s  192.168.0.215 DHCP SOFTWARE VER B110 V1.3b6 CTRL V1.3b1 TEMPERATURE PSU 53.8 FPGA 68.3...
  • Page 19 For 19’’ Rack mounting there are two options. Option 1 allows a single Sapphire HEVC Decoder to be mounted in a 19’’ rack by using the 19’’ Long Ear Rack Mount bracket option as shown below.
  • Page 20 To carry out a web update follow the procedure below. From a PC with a suitable browser application such as’ Firefox’ or ‘Chrome’, navigate to the IP address of the Sapphire HEVC Decoder. The iP address can be found on the front panel menus.
  • Page 21: Connector Interfaces

    8) On boot up the unit will be operating the new firmware. Upgrading B130 Front Panel Code The Sapphire HEVC Decoder front panel can be upgraded to show latest menu structures. Once the main update has completed, the front panel should go back to normal operation.
  • Page 22 ,s  Video 1 – 4 Audio 2 Connector: BNC Female (note 3GHz Connector: 6 pin Hirose HR10 Female specified) Part Num: HR10-7R-6S(73) Audio 1 – L / R Pins Audio 2 L- Connector: XLR 3 Pin Male Audio 2 L+ Pins 1: GND 2: Audio-...
  • Page 23: Technical Specifications

    ,s  Technical Specifications Connectors HDSDI 3G 1-4 4x BNC Female 75 ohm ASI IN BNC Female 75 ohm ASI OUT BNC Female 75 ohm Network RJ45 Audio XLR 3 pin Male AC In Video Decoder Profiles 4K UHD. 4:2:2/4:2:0, 8/10-bit 2160p / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 4:2:2/4:2:0, 8/10-bit 720p / 50 / 59.94 / 60...
  • Page 24 ,s  Dimension Drawings...
