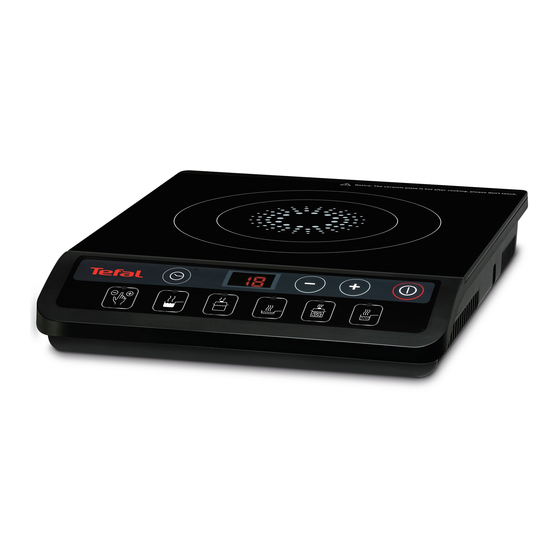

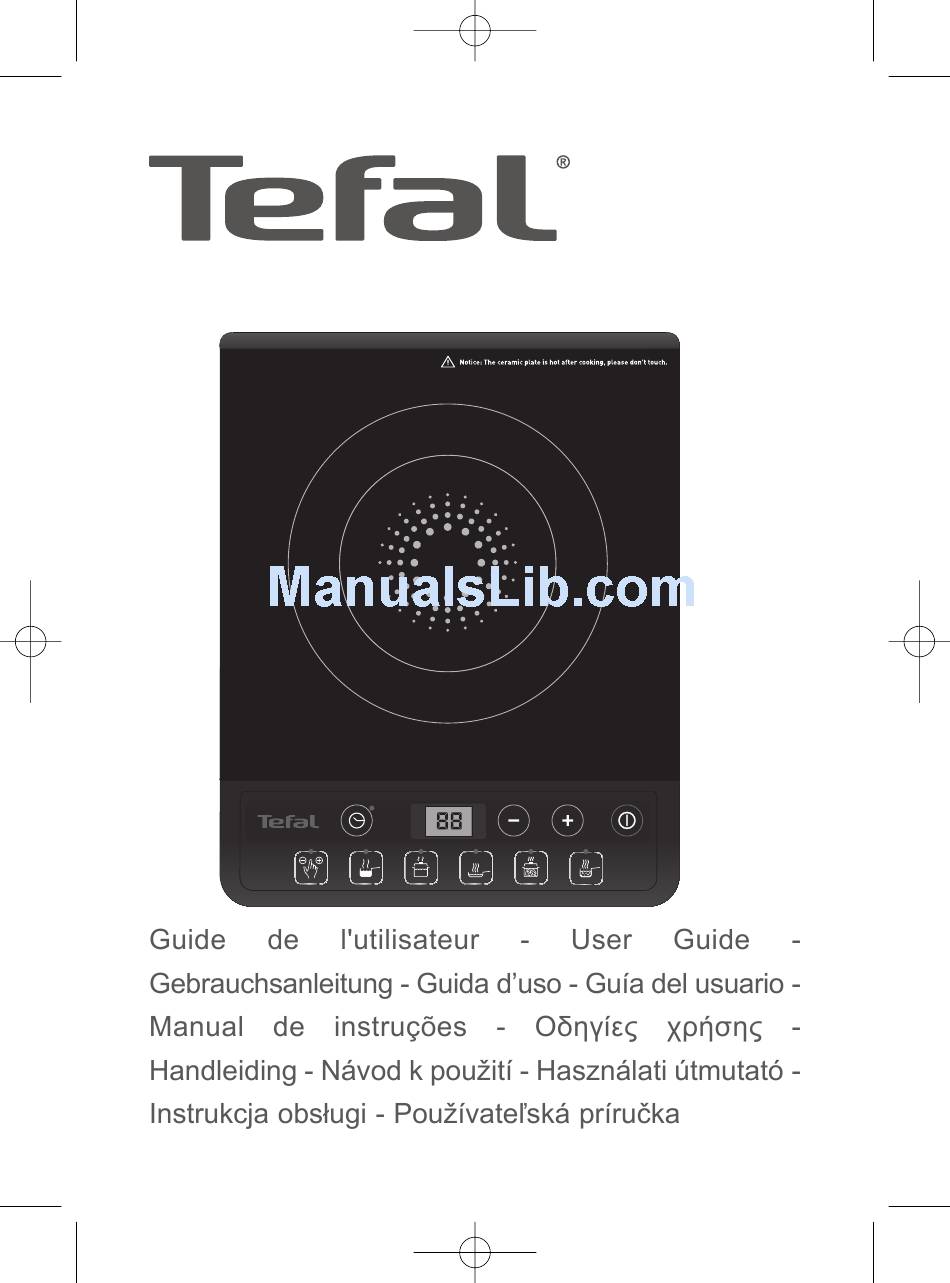

- Page 1 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 1 INDUCTION COOKER www.tefal.com...
-
Page 2: Important Safety Instructions
TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 16 IMPORTANT SAFETY INSTRUCTIONS • Read these instructions for use carefully before using your appliance for the first time and keep them to hand for future reference. • This appliance is not intended to function using an external time-switch or a separate remote control system. - Page 3 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 17 • As this appliance is for household use only, it is not intended for use in, and the guarantee will not apply for : - Staff kitchen areas in shops, offices and other working environments ; - Farm houses ;...
- Page 4 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 18 must be replaced by an Approved Service Centre. • Any intervention other than normal cleaning and maintenance by the customer must be performed by an Approved Service Centre. • Never touch the hot surfaces of the appliance, they will remain so for a while after use.
- Page 5 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 19 • Do not place or use this appliance in high humidity environments. • Do not place or use the induction plate on steel or aluminium surfaces. • Maintain a gap of at least 10cm (4 inches) on all sides of the appliance to ensure adequate ventilation.
-
Page 6: Specification
Specification Maximum Power Adjustment Display Applicable Power Model Input Power Range Type Supply Digital 220V-240V/ IH2018 2100W 450W-2100W Display 50Hz Product Structure A. Ceramic glass H. Stew Button B. Air entry Fry Button C. Air exit Deep fry Button D. Control panel K. -
Page 7: Direction For Use
TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 21 Characteristics Multiple Safety Protections • Protection against voltage drops/surges. • The induction cooker is only suitable for induction pots with a diameter between 12 and 24 cm (part in contact with the ceramic plate). • Protection against appliance overheating. •... - Page 8 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 22 MANUAL HEAT mode • After having turned on the hotplate with the ON/OFF button, activate manual heat mode. The light above the button is switched on and a beep sounds confirmation. • The default power setting is level 3 and the LCD shows “P3”. •...
- Page 9 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 23 • When the temperature reaches 85°C the program stops automatically and the hob beeps 3 times. • The timer function is not available for this mode. STEW mode (slow cooking) • After having turned on the plate with the ON/OFF button, activate stew mode.
-
Page 10: Boil Mode
TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 24 FRY mode This mode allows you to fry food in a large quantity of oil, up to 2 l. • After having turned on the plate with the ON/OFF button, activate fry mode. The light above the button is switched on and a beep sounds confirmation. - Page 11 TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 25 • When the water reaches 100° C, the appliance emits 3 beeps and stops heating. • If you want to cancel boil mode, you can select another program or press the on/off button. • The timer function is not available for this mode. Timer function for all functions except boiling water and heating milk •...
-
Page 12: Cooking Utensils
TE-PLAQUINDUCTION-NC00127885_Q7_final 12/9/14 11:37 Page 26 Cooking utensils Suitable cooking pots Double-bottomed ferromagnetic pans (enamel, cast iron or stainless steel) or pans made of flat-bottomed magnetic induction material with a diameter between 12 and 24 cm (part in contact with the ceramic plate). To know if a utensil is ferromagnetic, place a magnet on it. -
Page 13: Error Codes
Please Note: If the power cord is damaged do not use the appliance. Have it replaced by a Tefal Approved Service Centre to avoid any danger. ERROR CODES • Receptacle missing or not the correct type: if the pot base diameter is less than 12 cm or if the pot material is unsuitable, the buzzer will sound and the digital display shows E1.
