Escort PASSPORT Max2 Quick Reference

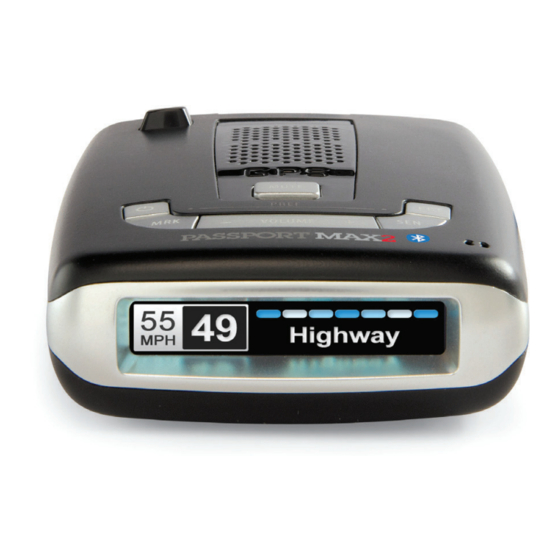

Controls & Features
Mute
Press to mute an alert;
Mount Release
press three times to
Press to remove device
lock out a false alert;
from mounting
press twice while
bracket
receiving a locked-out
Power
alert to unlock
Press to turn Max2
on or off
Brightness (BRT)
Press to adjust display
brightness (Min, Med,
Max, Auto, Dark)
Sensitivity (SEN)
Press to adjust detector
sensitivity (Highway,
Auto, Auto NoX)
Mark Location (MRK) Volume
To mark a location for Press and hold + or −
future alerts, press MRK to adjust volume
twice, then VOL + or –
to select the type of
Display
marker, then MRK
Alert area
again to confi rm. Press
Display
twice while receiving
Current speed
marker alert to unmark
Display (OSP)
OverSpeed alert setting that can be
OverSpeed Alert
adjusted in Preferences. Bluetooth
icon will appear on display screen
Bluetooth
blue when paired to phone and
Speed limit data will show here
Speed Limit Sign
when ESCORT Live App is open.
7
Settings & Preferences
Press and hold the MRK and SEN buttons to access Preferences. To exit Preferences, simply wait a
Completed
few seconds without pressing a button. The unit will display to confi rm your selections.
Press MRK to go from Press VOLUME + or – to change
one category to the next your setting within a category
User Mode Advanced* Access and customize all Settings and Preferences
Novice Access and customize units and display color, (all other
Settings are set to factory defaults)
NOTE: Switch back to advance mode to view all Preferences
Pilot Scan Bar* Scanning Bar with Full Word
Full Word Full Word: Auto, Auto NoX, or Highway
Display Color Blue*/Green/Red/Amber Set color to match your vehicle's dash display
Speed Display On* Displays current speed
Off Displays battery voltage
Cruise Alert 20 mph* Off ers double beep alert tones below specifi ed speed
Off / 20-90 mph
Over Speed 70 mph* Reminds you when you exceed a specifi ed speed
Off / 20-90 mph
Meter Mode Standard* Single band with bar graph of signal strength
Spec Single band with numeric frequency
Expert Multiple bands with bar graph of signal strengths
Simple Simple messages replace bands:
Caution (if traveling below cruise alert limit)
Slow Down (if traveling above cruise alert limit)
Tones Standard* Standard ESCORT alert tones
Mild Mild doorbell chime alert tones
AutoMute On* / Off Automatically reduces audio during alert
AutoLearn On* / Off Automatically stores and locks out false alarms
Units English* / Metric Units for distance and speed
Language English* / Espanol Language for voice and text
Voice On* / Off Voice announcements
GPS Filter On* / Off Enables GPS-powered features
8
AutoPower Off Power turns on or off depending on your vehicle's ignition
type (constant power or switched)
1 Hour Powers off automatically after 1 hour
2 Hours Powers off automatically after 2 hours NOTE: AutoPower only works
4 Hours* Powers off automatically after 4 hours with constant power ignition
8 Hour Powers off automatically after 8 hours
NOTE: If auto power is on, the display screen goes blank after 30 minutes
to save screen life. Display screen will turn on automatically after you reach
10 MPH
Band Enables Default* Default Settings for North America
Modifi ed Customize the bands you want to monitor
Press SEN to go from one Press VOLUME + or – to change
band category to the next your setting within a category
X Band On* / Off
K Band On* / Off
Ka Band On* / Off
Ka-POP On / Off *
Laser On* / Off
TSR On* / Off Automatically rejects traffi c fl ow sensors-monitoring false alarms
Marker Enable On* / Off Other, Red Light Camera, Red and Speed Camera, and Speed Trap
Modifi ed Customize the types of locations you want to mark for future reference
Press SEN to go from one Press VOLUME + or – to change
marker category to the next your setting within a category
Other On* /Off Other location
Redlight On* / Off Red light camera
Red & Speed On* / Off Red light & speed camera
Speed Cam On* / Off Speed camera
Speed Trp On* / Off Speed trap
Air Patrol On* / Off Known aircraft patroled areas
NOTE: User cannot mark an air patrol location
Clear Locations Marked Clear all user Marked locations. Press SEN button to confi rm
Lockouts Clear all lockouts. Press SEN button to confi rm
Defender Clear all DEFENDER data. Press SEN button to confi rm
Format Clear DEFENDER database, all markers, and all lockouts.
Press SEN button to confi rm
*Default Setting
9
Notes for Settings & Preferences
For descriptions of features and functions
available when connected to ESCORT Live and
download the PASSPORT Max2 Owner's Manual.
To view serial number and software revision
press MRK and MUTE while powering on
detector.
To restore PASSPORT Max2 to its original
factory Settings, press and hold SEN and BRT
while turning the power on. A "Restored"
message will display, acknowledging the reset.
Software Updates
PASSPORT Max2's red light and speed camera
DEFENDER database is easily updated using our
exclusive detector software tools found on our
web site. Firmware, or the operating software
for the detector, can also be updated using
these tools.
In order to have access to these updates, please
register your PASSPORT Max2. Once registered,
you will receive email notifi cations that updates
are now available for your database or fi rmware.
To handle your software and DEFENDER
updates you need to connect your Max2 to a
computer fi rst. Y ou can connect Max2 to a
For Android
computer via USB A / Mini B cable (not
Made for iPhone 4, iPhone 4s, iPhone 5, iPhone 5c, iPhone 5s. iPhone is a
included). trademark of Apple Inc., registered in the U.S. and other countries. "Made
for iPhone" means that an electronic accessory has been designed to
connect specifi cally to iPhone and has been certifi ed by the developer
to meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPhone may aff ect
wireless performance. Android is a registered trademark of Google Inc.
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG,Inc. and any use of such marks by ESCORT is under license.
