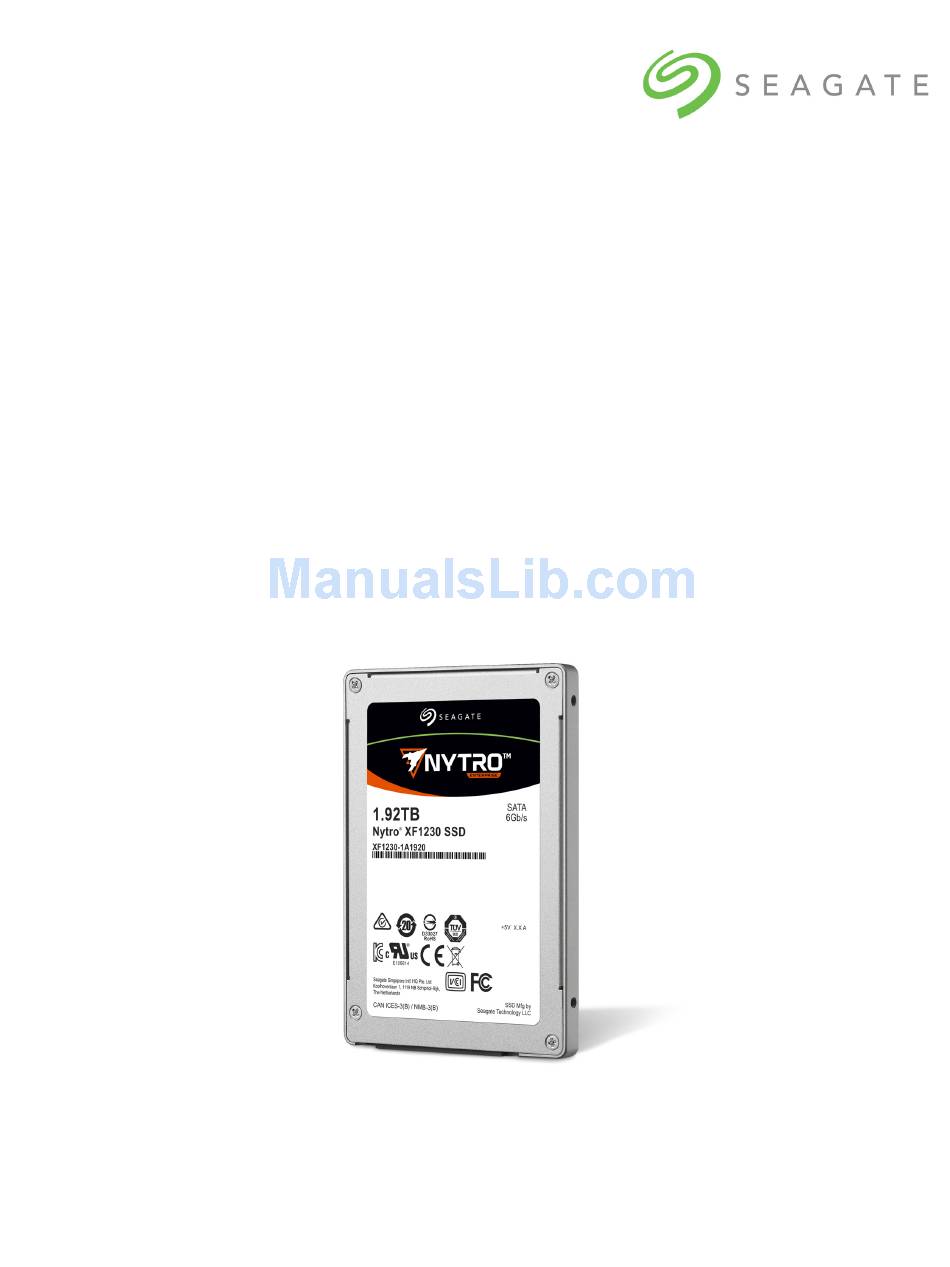

- Page 1 Seagate® Nytro® XF1230 SATA SSD Product Manual XF1230-1A0240 XF1230-1A0480 XF1230-1A0960 XF1230-1A1920 100797573, Rev. H October, 2017...
-
Page 2: Revision History
Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice,... -
Page 3: Table Of Contents
7.2.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment ..........23 Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 4: Seagate Nytro Xf1230 Sata Ssd Product Manual, Rev. H
7.3 Reference Documents ......................25 Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 5: Seagate Technology Support Services
Global Support Services telephone numbers & business hours Authorized Service Centers For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/ For Seagate Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 6: Introduction
Introduction 1. Introduction The Seagate® Nytro® XF1230 SSDs provide high reliability and sustained performance for enterprise Server and Storage products. The Nytro XF1230 series offers SATA interface, fully compatible with SATA 3.1 6.0Gb/s. Table 1 Nytro XF1230 Card Features... - Page 7 , 10~20 KHz 5V±5% Voltage Five years limited Warranty with Media Usage, based on the shorter of term or endurance usage of Warranty the drive. up to 85g ±5% Weight Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H...
-
Page 8: Specifications
Measured on system with Intel Xeon E5-2640v3 and C610 chipset with on-board AHCI controller running Microsoft Windows® 2012 R2 DC. System variations may affect measured results. MB/s = 1,000,000 bytes/second. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 9: Power
error-free while subjected to intermittent shock not exceeding specification. Shock may be applied in the X, Y, or Z-axis. Shock must not be repeated more than once every 2 seconds. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 10: Reliability
DWPD is drive write per day. SSD Endurance is lifetime on finite amount of writes. Limited Warranty with Media Usage provides coverage for the warranty period or the endurance usage of the drive. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 11: Mechanical Information
Mechanical Information 3. Mechanical Information Dimensions and Weight Weight: 0.187 lbs, 85 g Height: Maximum 7 mm Width: 69.85±0.25 Length: 100±0.25 NOTE All dimensions are in millimeters. Figure 1 Nytro XF1230 Dimensions Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 12: Pin And Signal Descriptions
Pin and Signal Descriptions 4. Pin and Signal Descriptions Serial ATA Interface Connector Figure 2 Connector Physical Dimension and Connector Assembly Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 13: Pin Locations
Table 11 Serial ATA Connector Pin Signal Definitions—2.5-inch Form Factors Name Definition Ground Ground Differential signal pair A and A- Ground Ground Differential signal pair B and B- Ground Ground NOTE Key and spacing separate the signal and power segments. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 14: Power Pin Signal Definitions
Using DAS function increases current because of the Activity LED operation. The DAS Firmware feature is disabled and the R das is opened when the DAS function is not in use. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... - Page 15 Pin and Signal Descriptions Figure 4 Circuit of SSD Activity LED indication Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H...
-
Page 16: Supported Ata Command List
READ FPDMA QUEUED WRITE DMA FUA EXT READ LOG DMA EXT WRITE DMA WITHOUT RETRIES READ LOG EXT WRITE FPDMA QUEUED READ MULTIPLE WRITE LOG DMA EXT READ MULTIPLE EXT WRITE LOG EXT Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 17: Security
5.3.1 Password Loss If you lose the user password, you can access the device using the master password. If both passwords are lost, there is no way to access the device. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 18: Smart Support
Execute SMART Conveyance self-test routine in captive mode 84h* Execute SMART Selective self-test routine in captive mode SMART READ LOG SMART WRITE LOG SMART ENABLE OPERATIONS SMART DISABLE OPERATIONS SMART RETURN STATUS *Low LBA values Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 19: Smart Attributes
SSD Life Left (%) Indicates the approximate SSD life left, in terms of program/erase cycles or Flash blocks currently available for use. Lifetime NAND programs in GB Lifetime NAND programs in GB Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 20: Smart Trip
SMART trip (threshold exceeded condition) indicates impending degradation or fault condition. The host can issue a SMART return status command (B0h/DAh) to communicate the reliability status of the drive. The threshold-exceeded condition is also checked during drive self tests. Seagate Nytro XF1230 SATA SSD Product Manual, Rev. H... -
Page 21: Safety, Standards, And Compliance
The drives also meet the requirements of The Low Voltage Directive (LVD) 2014/35/EU. Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. -
Page 22: South Korean Kc Certification Mark
Ramadan 1436 (16 July 2015) on electromagnetic compatibility of equipment. For drives with the Morocco Mark, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user. -
Page 23: Japan Vcci
Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead,... -
Page 24: Substances Of Very High Concern (Svhc)
The European Union REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) Regulation (EC) 1907/2006 regulates chemicals shipped into and used in Europe. A number of parts and materials in Seagate products are procured from external suppliers. We rely on the representations of our suppliers regarding the presence of REACH substances in these articles and materials. -
Page 25: Taiwan Requirements — Taiwan Rohs
CNS 15663, Guidance to reduction of the restricted chemical substances in electrical and electronic equipment. Seagate products must comply with the “Marking of presence” requirements in Section 5 of CNS 15663, effective January 1, 2018. This product is Taiwan RoHS compliant. - Page 26 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100797573, Rev. H...
