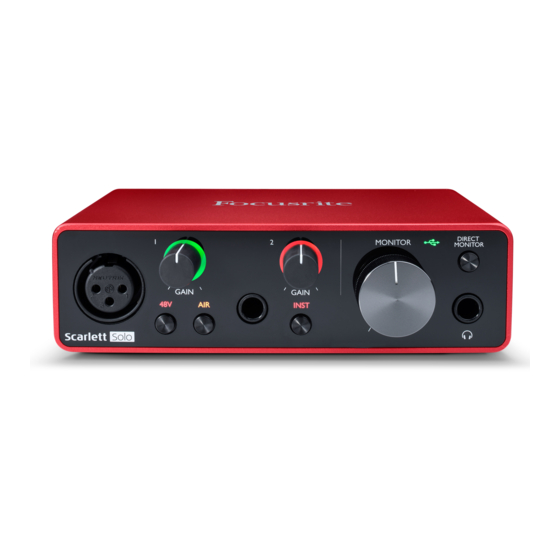

Focusrite Scarlett Solo User Manual
  1. Manuals
  2. Brands
  3. Focusrite Manuals
  4. Accessories
  5. Scarlett Solo
  6. User manual

Focusrite Scarlett Solo User Manual

Hide thumbs Also See for Scarlett Solo:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Guide
www.focusrite.com
FFFA001410

Advertisement

Table of Contents
loading

Related Manuals for Focusrite Scarlett Solo

Summary of Contents for Focusrite Scarlett Solo

  • Page 1 User Guide www.focusrite.com FFFA001410...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Introduction ..

  • Page 3: Overview

    Introduction Thank . you . for . purchasing . this . Second . Generation . Scarlett . Solo, . one . of . the . family . of . Focusrite . professional .audio .interfaces .incorporating .high .quality .Focusrite .analogue .pre-amplifiers. .You .now .

  • Page 4: Box Contents

    Along .with .your .Scarlett .Solo .you .should .have: • . .Bundle .code* .for .accessing .the .following .on-line .resources: - .Solo .USB .Drivers .for .Windows - .Focusrite .Red .2 .& .3 .Plug-in .Suite - .Softube .Time .and .Tone .bundle - .ProTools .| .First - .Ableton .Live .Lite...

  • Page 5: Getting Started

    2. Go to "System Preferences" then "Sound" available . for . download . from . the . Focusrite . website . www.focusrite.com/register. . You . will . find . a . . and select "Scarlett Solo" as the input and 2.

  • Page 6: Mac Os Only

    Your .OS .should .automatically .switch .the .computer’s .default .audio .inputs .& .outputs .to .the .Scarlett . Solo. .To .verify .this, .go .to .System Preferences > Sound, .and .ensure .that .the .input .and .output . are .set .to .Scarlett Solo. .For .more .detailed .setup .options .on .a .Mac, .open .Applications > Utilities > Audio MIDI Setup.

  • Page 7: Connecting Your Scarlett Solo

    . y our . S carlett . S olo . o nline. . T o . i nstall . e ither . D AW, . d ownload . a nd . s ave . t he . d esired . i nstaller . fi le . from . your . registered . Focusrite . “My . Products” . as . described . on . page . 5, . and . then . run . it, . following .
  • Page 8 Once . the . Scarlett . Solo . is . set . as . the . preferred . Audio . Device* . in . your . DAW, . its . inputs . and . outputs . will .appear .in .your .DAW’s .Audio .I/O .preferences. .Depending .on .your .DAW, .you .may .need .to .enable . certain .

  • Page 9: Examples Of Use

    Examples of use The .Scarlett .Solo .is .an .ideal .audio .interface .for .many .DAW .applications .running .on .a .laptop .or .other . computer, .PC .or .Mac. A .typical .set .of .connections .is .illustrated .below. Connecting a microphone/instrument This .setup .illustrates .a .typical .configuration .for .recording .using .DAW .software .on .your .Mac .or .PC. . In .this .case, .you .might .record .vocals .through .Input .1 .and .guitar .through .Input .2 .into .your .recording .

  • Page 10: Using Direct Monitoring

    If .you .are .using .a .“studio” .condenser .(capacitor) .microphone .designed .on .operate .on .48 .V .phantom . power, .press .the .48V .button. .Other .types .of .microphone .(including .the .common .dynamic .type) .do . not .require .phantom .power, .and .may .suffer .damage .if .phantom .power .is .applied. .Some .lower .spec. . condenser .

  • Page 11: Connecting Scarlett Solo To Loudspeakers

    Connecting Scarlett Solo to loudspeakers The . phono . (RCA) . outputs . on . the . rear . panel . can . be . used . to . connect . monitoring . speakers. . . Self-powered . monitors . (i.e., . typical . computer . speakers) . incorporate . internal . amplifiers . with . a .
  • Page 12 The .line .output .connectors .are .standard .phono .(RCA) .sockets. .Typical .consumer .(hi-fi) .amplifiers . and .small .powered .monitors .will .have .inputs .on .phono .(RCA) .sockets .or .a .single .3.5 .mm .3-pole .jack . plug .(intended .for .direct .connection .to .a .computer). .In .either .case, .use .a .suitable .connecting .cable . with .phono .plugs .(RCA .jacks) .at .one .end.

  • Page 13: Hardware Features

    HARDWARE FEATURES Front Panel The . f ront . p anel . i ncludes . t he . i nput . c onnectors . f or . m ic . a nd . l ine/instrument . s ignals, . a nd . t he . i nput . g ain . and .monitoring .controls.

  • Page 14: Back Panel

    Back Panel 11. . K (Kensington . security . lock) . – . secure . your . Scarlett . Solo . to . a . suitable . structure . if . desired. . Please . see . www.kensington.com/kensington/us/us/s/1704/kensington-security-slot.aspx . for .further .information .on .how .to .use .this .feature. 12.

  • Page 15: Performance Specifications

    PERFORMANCE SPECIFICATIONS Clock .Source . .Internal Supported .sample .rates 44.1 .kHz, .48 .kHz, .88.2 .kHz, .96 .kHz, .176.4 .kHz, .192 .kHz Microphone Input Dynamic .Range 106 .dB .(A-weighted) Frequency .Response 20 .Hz .to .20 .kHz .±0.1 .dB <0.002% . .(minimum .gain, .-1 .dBFS .input .with . . THD+N 22 .Hz/22 .kHz .bandpass .filter) Noise .EIN...

  • Page 16: Physical And Electrical Characteristics

    Headphone Output Dynamic .Range 107 .dB .(A-weighted) > .+10 .dBu Maximum .Output .Level <0.002% .(minimum .gain, .-1 .dBFS .input, .1 .kHz, .with . . THD+N 22 .Hz/22 .kHz .bandpass .filter) Physical and Electrical Characteristics Analogue Input 1 Connector Balanced, .via .female .3-pin .XLR .on .front .panel Phantom .power 48 .V .phantom .power .switch Analogue Input 2...

  • Page 17: Troubleshooting

    Focusrite . i s . a . r egistered . t rade . m ark . a nd . S carlett . S olo . i s . a . t rade . m ark . o f .
