BCST-20
► USB wired + 2.4G wireless communication
► Built-in FLASH memory, supports breakpoint resume
► Can store 2600 pieces Code-128 codes under offline state
► Supports Windows XP, Win7/8, Wince, mobile OS PC
BCST-20 Barcode Scanner
Quick Start Guide
Packing list:
BCST-20*1unit
USB cable*1pce
Wireless Adapter*1pce
Quick Start Guide
Note:
The device is not equipped with the charger, please charge the device
via USB output charging equipment.
2
Offline Mode
If you are heading for a working area which lies outside the
Bluetooth signal range, you may activate the offline mode
of the scanner, following the steps described below. Under
this enhanced offline mode, all scanned data will be stored
directly into the buffer memory of the device. Furthermore,
the data entries will be permanently saved in the buffer
memory prior to the manual upload into the working
station, so that you may upload them time and again to
your liking.
Due to the fact that the data entries will be automatically
wiped from the buffer memory during upload, a data loss is
possible when malfunctions occur during upload, e.g. if the
working station suffers a unanticipated system shut down.
An operation in offline mode is strongly recommended
under the following scenarios:
1) During the scanning process, the device often leaves
the Bluetooth signal range;
2) Due to a high quantity of blocking objects, the Bluetooth
signal's stability can't be ensured.
1. By scanning the following barcode, the offline mode
will be activated.
4
Prefix and Suffix Setting
1. Scan the "Enter Setup" barcode
Enter setup
2. Scan the "Prefix Setting" or "Suffix Setting" scanner
Prefix Setting
Suffix Setting
3. Scan certain barcodes sequentially to generate your
own prefix/suffix. Example: If you want to add "#" as
prefix or suffix, according to the barcode list provided on
our website, you need to scan the "3" barcode first and
then scan the "5" barcode.
(Please refer to www.inateck.com for the number and
symbol barcode list.)
1
BCST-20 Barcode Scanner Overview
BCST-20 integrates high-performance processor and decoding board, it has fast decoding, high-precision reading ability, and high anti-interference ability. It can easily read barcodes on
paper, goods and other media. The DOF has greatly improvement with similar products, also it has highly scanning speed, powerful reading ability with high accuracy.

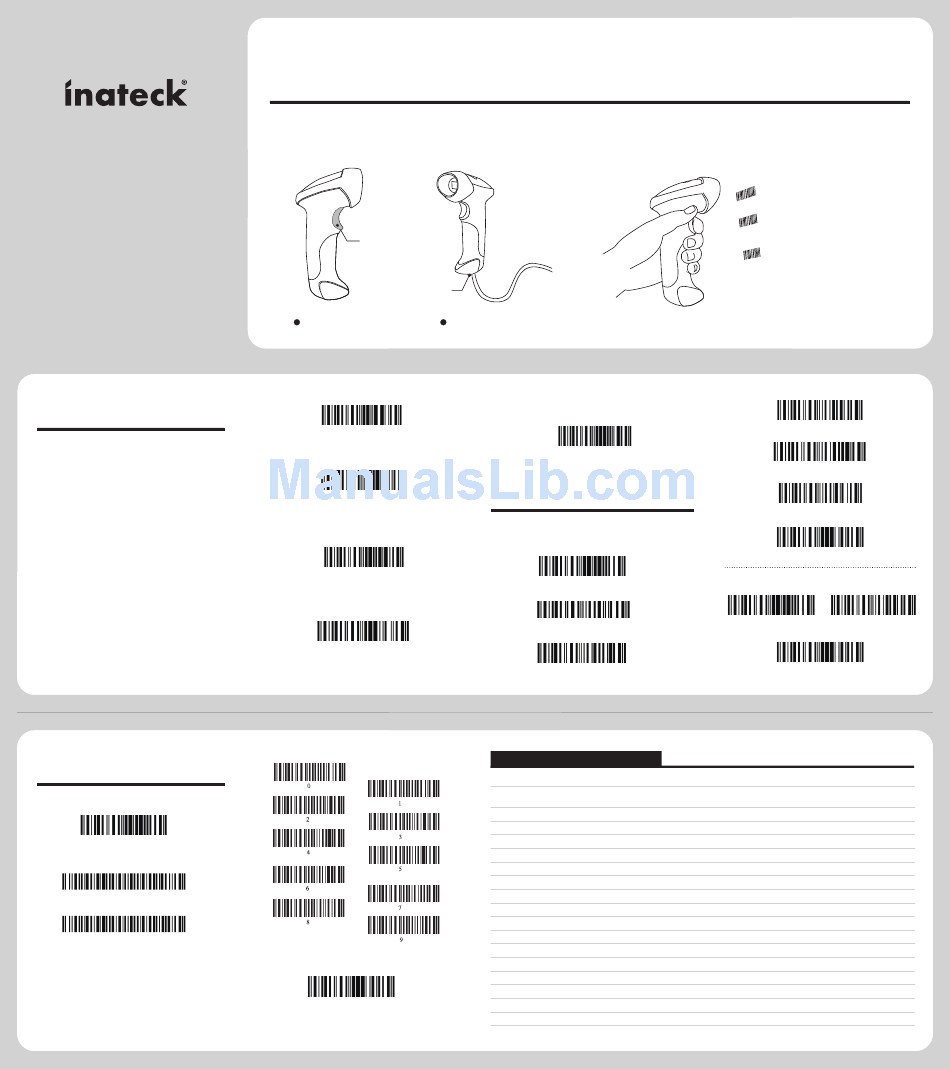

Appearance:
Power
USB Port
2.4G Wireless mode
Offline mode activation
2. By scanning the following barcode, all data in the buffer
memory will be deleted (only in offline mode).
Buffer data purge
3. By scanning the following barcode, all data entries in the
buffer memory can be manually uploaded after reconnect-
ing to the working station (only in offline mode).
Manual data upload
4. By scanning the following barcode, the gross quantity of the
uploaded data entries will be summarised (only in offline
mode).
Summarising of uploaded data entry quantity
4. Scan the "Exit with Save" barcode.
Exit With save
Functions Setup:
BCST-20 Barcode Scanner change all the default functions setup through reading the setup
barcodes.
USB Wired mode
5. By scanning the following barcode, the device leaves the
offline mode, normal mode will be reinitialised.
Quit offline mode
3
Keyboard Language Setting
Read 'Enter setup' Barcode - 'Select your keyboard language'
- Exit With save - Change your PC language as selected.
Read 'Enter setup' Barcode
Italian Keyboard
US Keyboard
Performance Characteristics
Light Source (Laser)
Laser LED 650+/-20nm
Decode Capability
Codabar, Code 93, MSI, Code 128, UCC/ EAN-128, Code 39, EAN-8, EAN-13, UPC-A,
UPC-E, ISBN, Industrial 25, Interleaved 25, Standard 25, 2/5 Matrix, USPS, FedEx
Resolution
3mil
Nominal Working Distance
6~30cm
Decode Rate
100 decodes per second
Scan width
30mm
Decode mode
Single-Line Aiming
Scan mode
Manual mode
Print Contrast Minimum
30%
Scan angles
Roll 30° Pitch 75° Yaw65°
Cylinder Horizontal Scan
Diameter 35mm
Indication
Beeper, LED
Radio Range
10m Visual range
Interfaces Supported
USB2.0
Processor
ARM 772MHz
EEPROM
256K, can store thousands of barcodes
Wireless Communication
2.4G Wireless transmission
Battery
1500mAh lithium battery
Scan the"Enter Setup"
barcode
You can change your
scanner setting by scan
a certain barcode.
Scan the "Exit with Save"
barcode to finish the
setting.
German Keyboard
French Keyboard
Spainish Keyboard
Exit With save
Eg: Switching to German keyboard
Read 'Enter setup' Barcode
German Keyboard
Exit With save
