Device layout
To turn on the device, press and hold the Power key
for a few seconds.
QUICK
Memory
card tray
START
Volume key
GUIDE
SIM card
tray

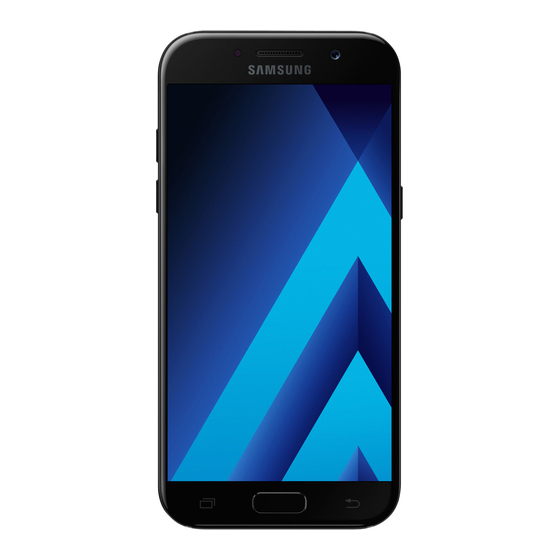

SM-A520W
Recents key
Multipurpose
jack (USB
Type-C)
Printed in Korea
GH68-47545A Rev. 1.0
English (CA) 02/2017
A520W_QSG_CA_Eng.indd 1
Accessing more information
Visit www.samsung.com/ca to view device
information, the user manual, and more.
•
The user manual may not be available
depending on the web browser or service
provider.
•
You may incur additional charges for
accessing the Internet.
Power key
Back key
Home key
(Fingerprint
recognition
sensor)
Installing a nano-SIM card and a
microSD card
Insert the ejection pin into the hole on the tray to
loosen the tray.
Gently press the card into the tray to secure it.
•
Ensure that the ejection pin is perpendicular
to the hole. Otherwise, the device may be
damaged.
•
If the card is not fixed firmly into the tray,
the card may leave or fall out of the tray.
Nano-SIM cards and microSD cards are sold
separately.
Correct card installation
Charging the battery
Before using the device for the first time, you must
charge the battery.
Nano-SIM card
microSD card
Use only a nano-SIM card.
The charger should remain close to the
electric socket and easily accessible while
charging.
2/9/2017 10:25:03 AM
