Summary of Contents for Humminbird HRS1
-

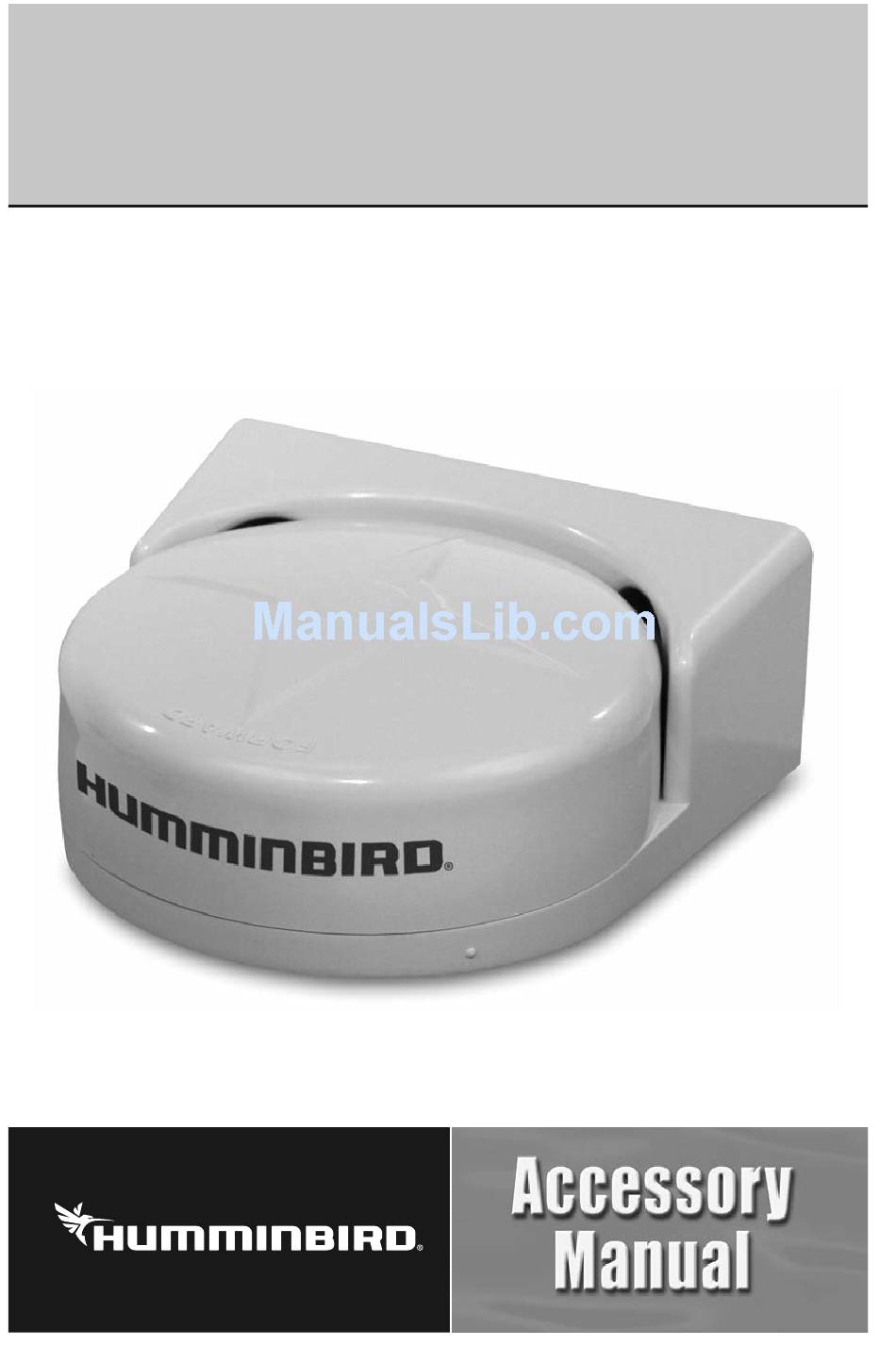

Page 1: Installation Manual
HRS1 Heading Sensor HRS1 Heading Sensor Installation Manual Installation Manual 532006-2_A... -
Page 2: Table Of Contents
Choosing the Mounting Location..........6 Installing................... 7 Mounting on a Vertical Surface..........7 Flush Mounting on a Horizontal Surface........10 Connecting................11 Calibrating the Compass............15 Maintenance................16 Troubleshooting................ 16 Contact Humminbird .............. 20 ® Humminbird® is a registered trademark of Johnson Outdoors Marine Electronics, Inc. -
Page 3: Introduction
Thank You! Thank you for choosing Humminbird®, the #1 name in Fishfinders. Humminbird® has built its reputation by designing and manufacturing top-quality, thoroughly reliable marine equipment. Your Humminbird® accessory is designed for trouble- free use in even the harshest marine environment. -
Page 4: Safety Instructions
WARNING Navigation Aid Only—The sensor is only an aid to navigation and should never be solely relied upon. It is not a replacement for traditional navigation aids and techniques, and human judgement. Only official government nautical charts contain all the information needed for safe navigation. Follow the safety precautions below to reduce the risk of poor product performance, property damage, personal injury, and/or death. -
Page 5: Tools & Materials
WARNING: Disassembly and repair of this electronic unit should only be performed by authorized service personnel. Any modification of the serial number or attempt to repair the original equipment or accessories by unauthorized individuals will void the warranty. Materials Supplied Installation and Operations Manual Heading Sensor Bag of Heading Sensor hardware... -
Page 6: Choosing The Mounting Location
Choosing the Mounting Location For accurate readings, selecting the best location for the sensor is very important. It can be mounted on either a vertical or a horizontal surface. Choose a location that balances the requirements below. • Mount the Heading Sensor as close to the boat’s center of gravity as possible. The lower it can be mounted, the more stable it will be, thus giving more accurate compass readings. -
Page 7: Installing
CAUTION: Mount the sensor near the center of gravity of the boat and reasonably level with the waterline for accurate pitch and roll readings. IMPORTANT: Plan the cable route between the sensor and the Humminbird ® Multi-Function Display and/or network before beginning the installation. - Page 8 Preparing the Sensor WARNING: Do not use the studs if there is any danger that a person may be injured by the protruding metal. 1. Remove the label from over the sensor’s socket (part A) (see Figure 2). 2. There are two ways to attach the sensor to the bracket. Choose either a or b. a.
- Page 9 Attaching the Sensor to the Bracket 1. Feed the cable through the mounting bracket (see Figure 3). 2. Align the word ‘FORWARD’ pointing forward and parallel to the centerline of the boat while holding the gasket firmly against the sensor. a.
-
Page 10: Flush Mounting On A Horizontal Surface
Flush Mounting on a Horizontal Surface 1. Remove the label from over the sensor’s socket (part A) (see Figure 4). 2. Apply removable thread locker to the two studs supplied. Screw the studs into the underside of the sensor. 3. Using a torpedo level, check that the mounting surface is reasonably level. If necessary, use shims to level the surface or choose another mounting location. -
Page 11: Connecting
CAUTION: Coil any excess cable(s) and secure with cable ties to prevent damage. Hole Drilling & Cable Routing 1. Select a convenient dry mounting location for the Junction Box within 1m (3') of the Humminbird Multi-Function Display. Wherever possible, maintain a ®... - Page 12 Use a heat gun to shrink the tubing. power cable Power single wire (5) Source small grommet (3-5) large grommet (5-7) Heading Humminbird® Sensor Display serial sensor cable cable (RS-232) Figure 5. Cables inserted in the Junction box...
- Page 13 Wiring CAUTION: The Serial Cable (RS-232) has both a black and a dark-grey wire. Be sure to correctly identify them. 1. Make the connections using the supplied butt connectors. See Table 1 on the next page and insert the end of the first colored wire from the Serial Cable (RS- 232) into one of the holes in a butt connector (see Figure 6).
- Page 14 7. Connect the Serial Cable (RS-232) to the Humminbird display. Hand-tighten ® the screw nut on the Serial Cable (RS-232) connector to secure the cable. 8. Your installation is complete. To begin receiving data, see your Humminbird ® operations manual.
-
Page 15: Calibrating The Compass
Calibrating the Compass WARNING: The internal compass may need to be calibrated on the water after the sensor is installed. Perform the pretest to determine if calibration is necessary. CAUTION: The Pretest and AutoCalibration Procedures must be done in calm seas in a 0.8 km (0.5 mile) open area away from other boats and ferrous objects such as structures and aids to navigation. -
Page 16: Maintenance
Maintenance CAUTION: Do not disassemble the sensor. There are no user-serviceable parts inside. Removing the screws from the sensor (part A) will damage the waterproof seal, thus voiding the warranty. CAUTION: Do not immerse in water or pressure wash. Doing so may allow water to infiltrate the sensor, voiding the warranty.
