INSTALLATION AND OPERATION MANUAL
FTA/FRA2C1(M,S)1 and FXA2C1(M,S)1
2 AudIo ChANNElS + 1 CoNTACT CloSuRE
The ComNet

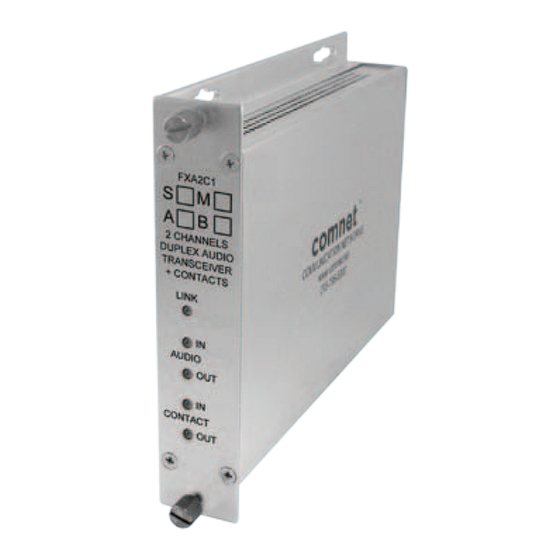

FTA/FRA2C1 Series audio multiplexer provides the transmission of two
™
audio signals and one contact closure over one multimode or single mode optical
fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit
96khz sample rate digital encoding for superior transmission of balanced line-level
audio. Plug-and-play design ensures ease of installation and no electrical or optical
adjustments are required.
These extenders are designed for long-term, reliable operation in harsh industrial
environments, and a fault-specific lEd indicator is provided for rapidly ascertaining
the operating status of the extender and the link. See Figure 9 on Page 5 for an
explanation of lEd indicators.
Packaged in the exclusive ComNet ComFit housing, these units may be either wall or
rack mounted. See Figure A on Page 6 for mounting instructions.
See Figures 1 – 9 for complete installation details.
INS_F(T,R)A2C1(M,S)1_FXA2C1(M,S)1_REV– 04/25/12 PAGE 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Comnet FTA2C1M1
Summary of Contents for Comnet FTA2C1M1
- Page 1 See Figure 9 on Page 5 for an explanation of lEd indicators. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack mounted. See Figure A on Page 6 for mounting instructions.
- Page 2 INSTALLATION AND OPERATION MANUAL FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1 FIGURE 1 – FTA2C1 TRANSMITTER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED Power Supply: 8-15VDC @ 2W Note: Remove Electrical Connector for Rack Mount Units FIGURE 2 – FTA2C1 TRANSMITTER FRONT PANEL REAR PANEL Tech SupporT: 1.888.678.9427...
- Page 3 INSTALLATION AND OPERATION MANUAL FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1 FIGURE 3 – FRA2C1 RECEIvER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED Power Supply: 8-15VDC @ 2W Note: Remove Electrical Connector for Rack Mount Units FIGURE 4 – FRA2C1 RECEIvER FRONT PANEL REAR PANEL Tech SupporT: 1.888.678.9427...
- Page 4 INSTALLATION AND OPERATION MANUAL FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1 FIGURE 5 – FXA2C1 TRANSCEIvER MULTIMODE OR SINGLE MODE OPTICAL FIBER BLACK BLACK WITH WHITE STRIPE/RED Power Supply: 8-15VDC @ 2W Note: Remove Electrical Connector for Rack Mount Units FIGURE 6 – FXA2C1 TRANSCEIvER FRONT PANEL REAR PANEL Tech SupporT: 1.888.678.9427...
- Page 5 INSTALLATION AND OPERATION MANUAL INSTALLATION AND OPERATION MANUAL FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1 FTA/FRA2C1(M,S)1 AND FXA2C1(M,S)1 FIGURE 7 – AUDIO WIRING Wiring panel terminal block is located on the back panel of each unit. Channel 2 Channel 2 Signal Out to Signal In from Customer Equipment Customer Equipment Channel 1...
-
