Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2017 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17i
Advertisement
Table of Contents
Related Manuals for AMES 64016
Summary of Contents for AMES 64016
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.
-
Page 2: Table Of Contents
Indicates a hazardous situation which, if not avoided, could result in death or serious injury. Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. Addresses practices not related to personal injury. Page 2 For technical questions, please call 1-888-866-5797. Item 64016... -
Page 3: Safety
Power this Meter using only determine if your judgment or reflexes the battery(ies) referenced in are impaired while taking drugs. If there the Specifications Chart. is any doubt, do not operate the Meter. Item 64016 For technical questions, please call 1-888-866-5797. Page 3... - Page 4 23. Use the proper settings, terminals, be supplied by the operator. techniques, and range for the tests performed. Start with the range stated in the instructions. SAVE THESE INSTRUcTIONS. Page 4 For technical questions, please call 1-888-866-5797. Item 64016...
-
Page 5: Specifications
(@ 33°F to 752°F) ± 2% of rdg + 2D Sampling Rate ~3 times/second Operating Range: 32° - 104°F Temperature Operating Humidity ≤ 75% RH Jaw Opening 12mm Display Battery 9V (included) Item 64016 For technical questions, please call 1-888-866-5797. Page 5... -

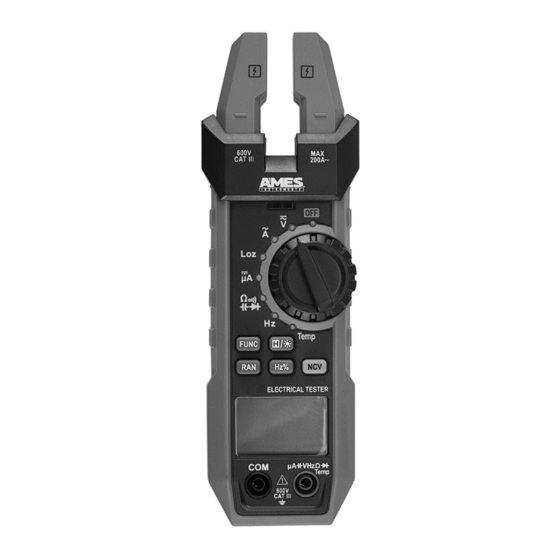

Page 6: Setup
CAT III 200A Rotary μA Switch Data Hold/ Function Light Button Temp Button FUNC Non-contact Range Voltage Button Button Frequency/Duty cycle Button Display μA Temp Input 600V Jack Jack CAT III Page 6 For technical questions, please call 1-888-866-5797. Item 64016... - Page 7 Direct Current Alternating Current Duty Cycle °c/°F Celsius/Fahrenheit nF, uF, mF Farads (Capacitance) μA, mA, A Amps (Current) V, mV Volts (Voltage) Hz, kHz Hertz (Frequency) Ω, kΩ, MΩ ohms (Resistance) Item 64016 For technical questions, please call 1-888-866-5797. Page 7...
-
Page 8: Operation
Press and hold RAN button to return to AUTO. To select manual range, press RAN button. Each press of Note: Manual range does button increases range. not work in all modes. Page 8 For technical questions, please call 1-888-866-5797. Item 64016... -
Page 9: Auto Power Off
To turn Meter back on, 15 minutes of non-use. To conserve press FUNc button. battery power, turn Meter off after use. To disable Auto Power Off, hold FUNc button down while turning Meter on. Item 64016 For technical questions, please call 1-888-866-5797. Page 9... -
Page 10: Ac Current Measurement
Turn Rotary Switch to position. When testing is complete, turn Rotary Switch to OFF, and store Meter. μA Temp 600V CAT III Page 10 For technical questions, please call 1-888-866-5797. Item 64016... -
Page 11: Resistance Measurement
Test Leads and store with Meter. Plug black Test Lead into black cOM Jack. Plug red Test Lead into red Input Jack. Item 64016 For technical questions, please call 1-888-866-5797. Page 11... - Page 12 Plug red Test Lead into red Input Jack. is reversed, display will read OL. Turn Rotary Switch to position. When testing is complete, turn Rotary Switch to OFF, remove Test Leads and store with Meter. Page 12 For technical questions, please call 1-888-866-5797. Item 64016...
-
Page 13: Temperature Measurement
Turn Rotary Switch to Temp position. Thermocouple and store with Meter. Press FUNc Button To choose WARNING! To prevent electric between °F and °C. shock, remove Thermocouple before switching between testing modes. Item 64016 For technical questions, please call 1-888-866-5797. Page 13... -
Page 14: Maintenance
When symbol appears on Remove screw and battery cover. display, replace battery(ies). Remove battery(ies) and Remove Test Leads from Meter. replace with same. Turn Meter over. Replace cover and screw. Page 14 For technical questions, please call 1-888-866-5797. Item 64016... - Page 15 Have Meter calibrated by a qualified technician every year. Record Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Item 64016 For technical questions, please call 1-888-866-5797. Page 15...
-
Page 16: Warranty
