AMES RVM 160 Instruction Manual

Handheld anemometer
Hide thumbs

Advertisement

Quick Links

Download this manual

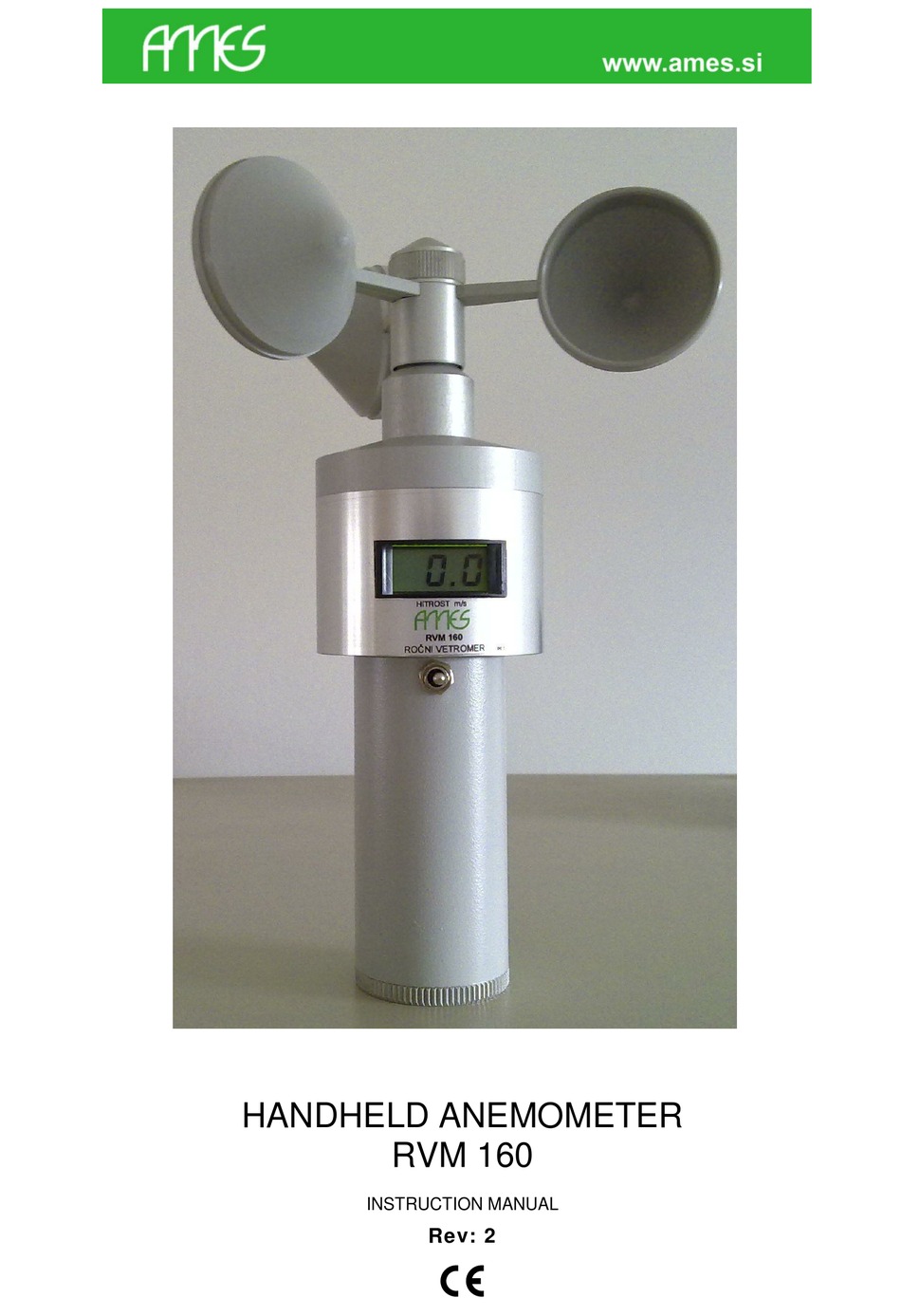

HANDHELD ANEMOMETER
RVM 160
INSTRUCTION MANUAL
Rev: 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the RVM 160 and is the answer not in the manual?

Questions and answers

Related Manuals for AMES RVM 160

Summary of Contents for AMES RVM 160

  • Page 1 HANDHELD ANEMOMETER RVM 160 INSTRUCTION MANUAL Rev: 2 ...
  • Page 2 RVM 160 Handheld Anemometer...

  • Page 3: Table Of Contents

    RVM 160 Handheld Anemometer CONTENTS 1. DESCRIPTION ____________________________________________________ 4 2. INSTRUCTIONS FOR USE __________________________________________ 5 3. BATTERIES _______________________________________________________ 5 4. MAINTENANCE ___________________________________________________ 6 5. TECHNICAL DATA ________________________________________________ 8 WARRANTY _________________________________________________________ 9 SPARE PARTS _____________________________________________________ 10...
  • Page 4 RVM 160 Handheld Anemometer...

  • Page 5: Description

    Instead of batteries, four rechargeable AA size NiCd accumulators may be used. RVM 160 may be placed on any standard photographic tripod, which can be fixed to the bottom of the RVM 160 handle by a standard 1/4” screw.

  • Page 6: Instructions For Use

    When measured wind speed exceeds 53 m/s, - - - is displayed on LCD. After turning it on, RVM 160 must be raised and held in the upright position at such a height that the display is at the eye level. Wind speed can be immediately read from the display.

  • Page 7: Maintenance

    In order to avoid any chemical damage to the device the batteries must be removed from it when RVM 160 will not be used for more than a week. Care should be taken not to mechanically damage the instrument by dropping it to the ground or handling it without care.
  • Page 8 RVM 160 Handheld Anemometer Normally, no other maintenance or recalibration is required.

  • Page 9: Technical Data

    RVM 160 Handheld Anemometer 5. TECHNICAL DATA WIND SPEED Measuring from 0 m/s to 50 range: or 0 to 100 knots or 0 to 180 km/h Starting 0.5 m/s speed: Accuracy and +/- 0.5 m/s linearity: Resolution: 0.1 m/s Measuring...

  • Page 10: Warranty

    (Signature & stamp) The device is warranted against all defects in material or labour for a period of 12 months from a date of purchase (either purchased directly from AMES or from an authorised representative). We commit ourselves to repair without charge any defects and technical deficiencies caused under normal operation.

  • Page 11: Spare Parts

    RVM 160 / SP 006: Coverlid for the handle RVM 160 / SP 007: Battery compartment RVM 160 / SP 008: Electronic assembly RVM 160 / SP 010: A set of inner mechanical parts, including the axis, the stroboscope and ball bearings.
