- Page 1 4 Input HDMI Switcher AC-1709 User manual...
- Page 2 I. Introduction This is a high performance 4x1 HDMI switcher, with features such as ARC, EDID and CEC. It supports HDCP repeater functions and fast switching between any of the Four HDMI ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives uses complete control over the selection of sources and makes the device incredibly user friendly.
- Page 3 III. Package HDMI 1.4 4x1 Switcher 5V DC Power Supply Adaptor Remote control Operation Manual IV. Specifications Frequency Bandwidth 2.97Gbps Input Ports 4 x HDMI Female ports. Output port 1 x HDMI Female port, 1x Toslink, 1 x 3.5mm stereo socket HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD Power Supply...

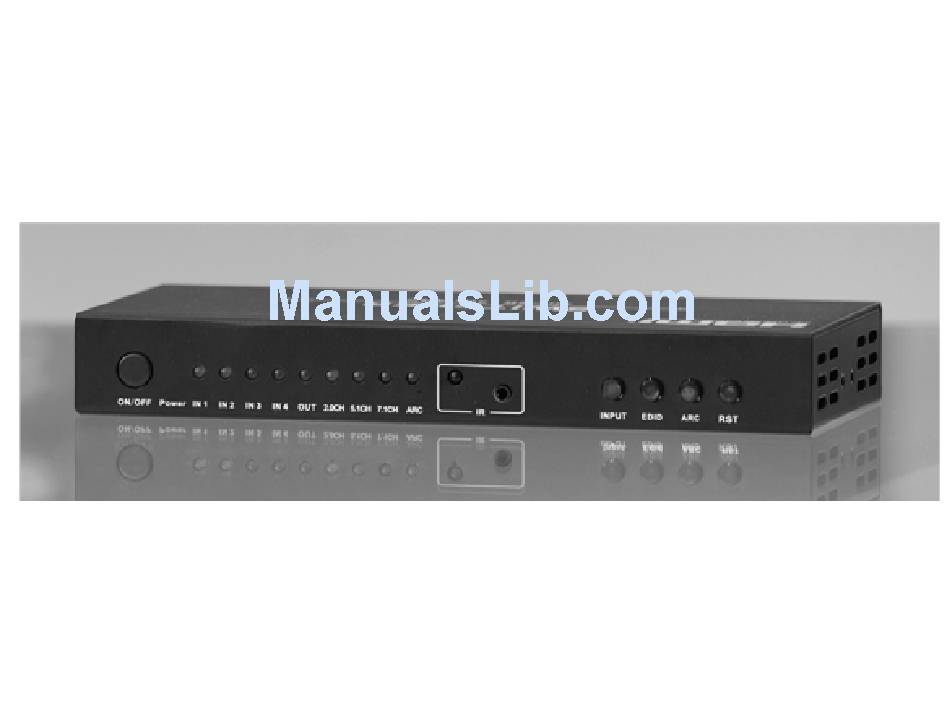

- Page 4 V. Operation controls and Functions Front Panel ON/OFF: Power on/off switch. POWER LED: This red LED illuminate when the device is connected to power & switched on. IN1/2/3/4 LED: One LED will illuminate when a selected input is being used. 2.0/5.1/7.1 LED: One LED will illuminate when a selected audio EDID format is being used.
- Page 5 Rear Panel HDMI Inputs: These sockets connect to a HDMI source output i.e. from a DVD player, Game console, etc. HDMI Output: This socket connects to a HDTV or monitor with HDMI cable. 3.5mm Stereo (Analogue) Audio output: This socket outputs the extracted audio signal from the selected HDMI source in analogue format;...
- Page 6 VI. Application Example...
- Page 7 VII. Remote control IN1, IN2, IN3, IN4: Press any numbered ‘IN’put button, the corresponding input will be selected. ARC: Press this button to turn the ARC function On or Off. 2.0CH: Press this button to select the 2 channel (stereo) audio output mode. 5.1CH: Press this button to select the 5.1 channel audio output mode.
- Page 8 IMPORTANT: - Never attempt to open, repair or modify any part of this unit or its accessories. - Never get any part of the device or its accessories wet. - Failure to adhere to these points will result in a void of warranty.
