5 Input HDMI UHD Switcher
AC-1762

User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-1762 and is the answer not in the manual?

Questions and answers

Related Manuals for DigiTech AC-1762

Summary of Contents for DigiTech AC-1762

  • Page 1: User Manual

    5 Input HDMI UHD Switcher AC-1762 User Manual...
  • Page 2 Box Contents 1 x 5 Input HDMI UHD Switcher 1 x 5V/1A DC Power Supply Adaptor 1 x Remote Control 1 x IR Receiver cable Connect and Operate Connect the signal sources such as Blu-Ray Player, Play Station 3, satellite receivers and computers equipped with HDMI output interfaces with a short high-speed HDMI cable to the HDMI Switcher...

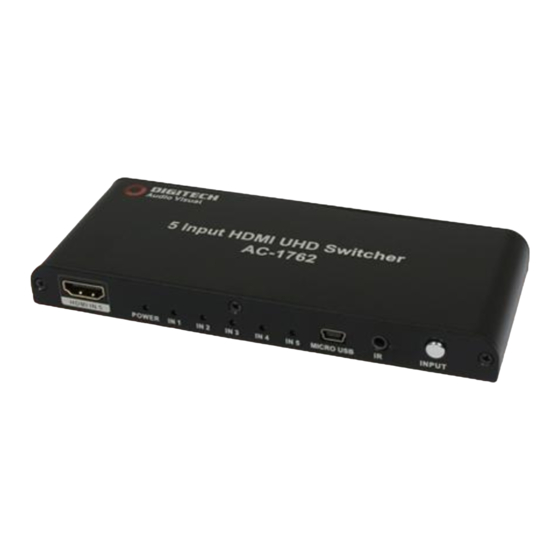

  • Page 3 1. HDMI IN5: HDMI input 5 port. 2. POWER LED: This blue LED illuminates when the device is connected with power supply. 3. IN LED: These blue LED illuminate when the Source is selected. 4. MICRO USB: Socket for micro USB connection. 5 IR: Remote control receiver, the 3.5mm socket for HDMI switcher IR extension.
  • Page 4 Specification Compatible with: HDMI2.0, HDCP2.2 and DVI 1.0 standards Video Bandwidth 300MHz/10.2 Gbps Input Ports 5 x HDMI (Female type) Output Ports 1 x HDMI (Female type) Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz with 12bit YCBCR 4:2:0, VGA~UXGA ESD Protection Human Body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply...
