Summary of Contents for DigiTech WAC1705
- Page 1 3 Input HDMI Switcher User manual...
- Page 2 I. Introduction This is a high performance 3 HDMI input and 1 HDMI output switch. It supports HDCP repeater functions and fast switching between any of the HDMI input ports. The system supports all 3D TV formats in addition to all HDTV formats up to 4Kx2K. Furthermore, the remote control gives uses complete control over the selection of sources and makes the device incredibly user friendly.
- Page 3 III. Package 3 x 1 HDMI 1.4 Switcher Remote control IR Receive Extend cable Operation Manual IV. Specifications Frequency Bandwidth 2.97Gbps Input Ports 3 HDMI Sockets, IR Receiver socket Output port 1 HDMI Socket HDMI Audio Output PCM2, 5.1, 7.1CH, Dolby 5.1, DTS5.1, D-TrueHD, DTS-HD ESD Protection Human Body Model: ±...

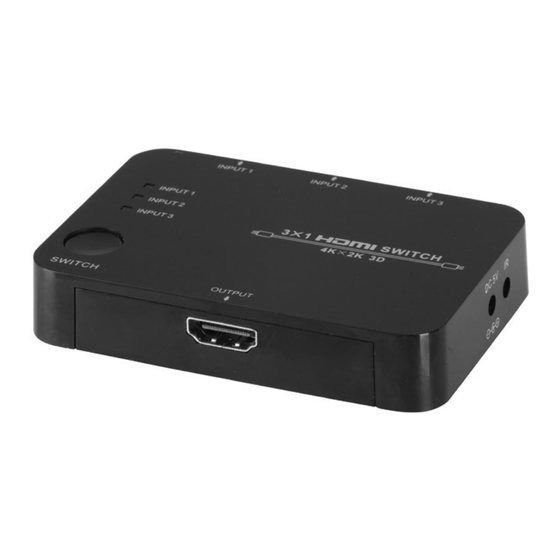

- Page 4 V. 3×1 Switch Operation controls and Functions Top Panel: ① Switch button; Press this button to select any sources, i.e. Blu-ray, Game Console, Set Top Box, etc, which is connected to the input and indicated by the number of the input, i.e.
- Page 5 Front Panel：Connect the output of the switcher to a monitor or HDTV that is equipped with a HDMI socket. The selected source will be displayed from this output. Rear Panel：3 HDMI inputs located on the rear of the device. Connect a HDMI source to any of these inputs.
- Page 6 Right Panel: ①DC 5V input port; this switcher does not require power to switch between the 3 available sources. The power input is available in cases where one or all HDMI leads is or exceeds 5 metres in length. ②IR receiver port: connect the supplied IR receiver cable to receive a remote signal.
- Page 7 VI. Application Example（3×1 Switch）...
- Page 8 VII. Remote control IN1、 IN2、 IN3： Press any of the “IN”put numbered buttons and the LED will indicate the corresponding selected input source. ：Press this button to cycle through the available input source and the LED will indicate the corresponding input source.
