  • Page 1 Gustard DAC-X22 High-performance DAC User Manual...
  • Page 2: Table Of Contents

    Table of Contents Front Panel Introduction· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·2 Rear panel introduction·...
  • Page 3: Front Panel Introduction

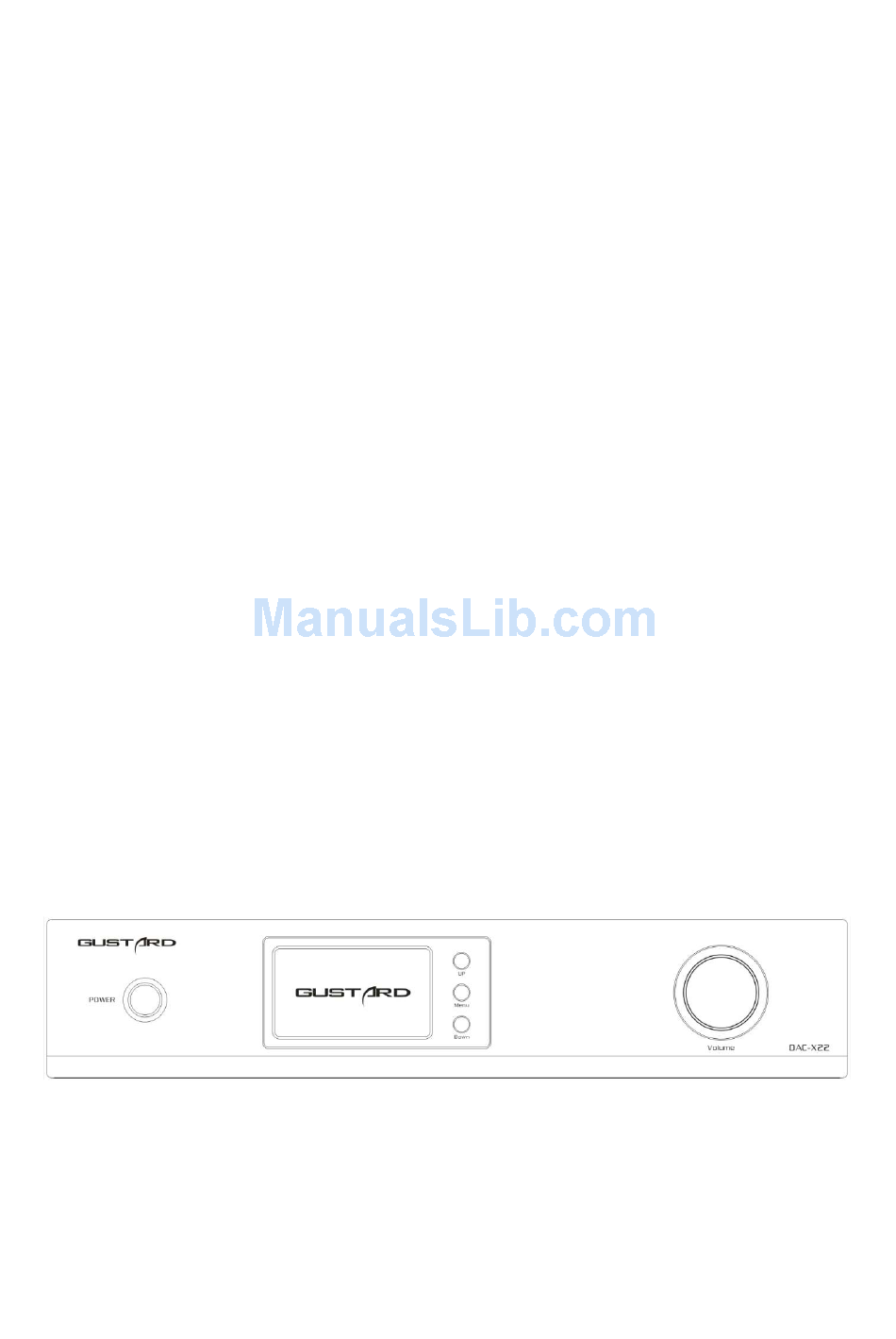

    Front panel 1. Power switch is a button,push it to start. 2. The monitor display the input channel encoding format sampling rate volume and others. 3. Multi-function button can archive all the functions and select the input channel. 4. Volume controller Clockwise to increase counter clockwise to decrease.;It aiso can change the options by rotation in the menu.
  • Page 4: Display And Menu

    Display and the menu Used large OLED monitor.Display the real-time status and functions The following figure shows an example 2. Input channel select: X22 has 5 channels to input. In main menu press the button to select in COAX——AES——USB——IIS——OPT. 3. Volume In main menu turn the knob to adjust the volume.
  • Page 5 Under normal circumstances, select NORMAL to match the most sources. When the DAC-X22 always out of lock, you can choose HIGH bandwidth to provide greater jitter tolerance, but at the same time there is a slight degradation in performance.
  • Page 6 d. MCLK MODE(主时钟模式) : After many years of research and development.X22 archive this unique function. In order to set the ES9038PRO in the best clock environment--True HI-END performance. When select AUTO.X22 will enter the adaptive master clock mode. A more accurate clock will be obtained by a set of high performance PLLs (phase-locked loop), and it will be transmitted to the ES9038 DAC.
  • Page 7: Remote Controller

    Return back to the main menu display. 5and6.Volume adjustment Button. It can adjust volume only when DAC-X22 shows the main menu on the screen. 7.Mute Button. DAC-X22 will be muted when this button is pressed, and mute will be released after another pressing. - 6 -...
  • Page 8 Notice! 1) Operating distance of the remoter varies depending on the angle. 2) If there something blocks the remoter and the sensor, operation might be failed. 3) If the remoter will not be used for a long time (one month or longer), the battery is recommended to be removed.
  • Page 9: Specification

    Product Specifications Digital Input COAX input format supported: PCM 16-24bit/44.1-192kHz; DSD DOP64 AES input format supported: PCM 16-24bit/44.1-192kHz; DSD DOP64 OPT input format supported: PCM 16-24bit/44.1-192kHz; DSD DOP64 USB input format supported: PCM 16-32bit/44.1-384kHz; DSD DOP64-DOP256;DSD Native DSD64-DSD512 IIS input format supported: 16-32bit/44.1-384kHz ;...
  • Page 10: Warranty And Service

    Free Warranty Service GUSTARD DAC-X22 from the purchasing date in the free warranty period, the user uses the product in normal, and the product fails due to component quality or manufacturing problems.
