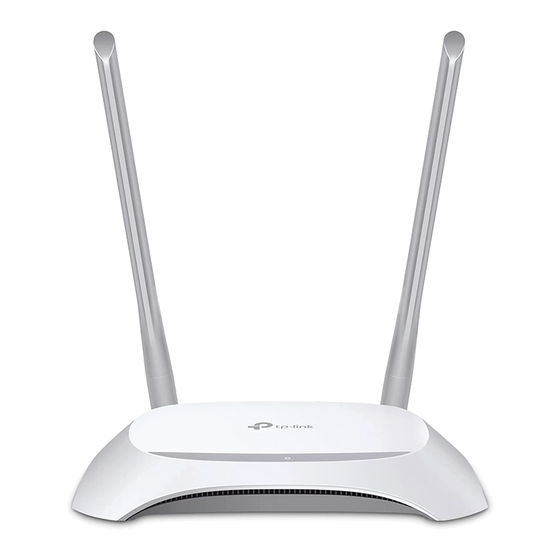

TP-Link TL-WR840N Quick Installation Manual

Quick Installation Guide
300Mbps Wireless N Router
TL - WR840N
7106505507 REV2.0.0
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the Ethernet
cable directly to the router's WAN port, then follow steps 4 and 5 to
complete the hardware connection.
Internet
Power adapter
Power adapter
Modem
1
Turn off the modem and
remove the backup battery
if it has one.
2
Connect an Ethernet cable from
the modem to the WAN port on
your router.
3
Turn on the modem and
then wait about 2 minutes
for it to restart.
4
Verify that the hardware
connection is correct by
checking these LEDs.
Power WLAN WAN
On On On
