UD.6L0208A0024A01

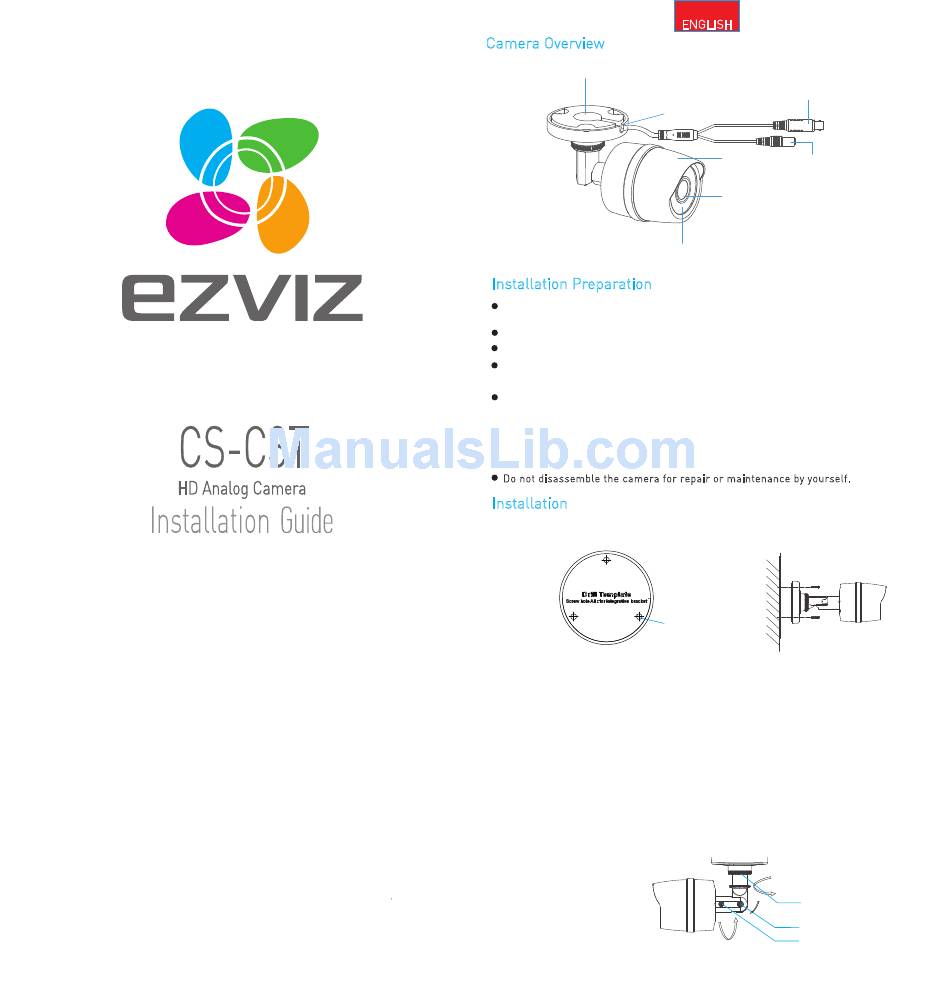

Camera Overview

Mounting Base

Installation Preparation

Make sure that the device in the package is in good condition and all the assembly
parts are included.
Make sure that all the related equipment is powered off during the installation.
Check whether the power supply matches your power output to avoid damage.
Make sure the wall is strong enough to withstand three times the weight of the
camera and the mounting.
If the wall is cement, you need to insert expansion screws before you install the
camera.
If the wall is wooden, you can use self-tapping screws to secure the camera.
If the product does not function properly, please contact us at 1-855-MYEZVIZ
(693-9849) or email us at service@ezvizlife.com.
Do not disassemble the camera for repair or maintenance by yourself.

Installation

1.
Place the drill template sticker on the surface where the camera will be mounted.
2.
Drill the screw holes according to the drill template, see figure 3-1.
3-1
3.
Route the camera cables through the mounting base and wire the cables
through the side opening.
4.
Fix the mounting base to the ceiling or wall with PA4×25 screws (supplied), see
figure 3-2.
5.
Adjust the surveillance angle, see figure 3-3.
- Loosen the No. 3 adjusting screw to adjust the panning position (0° to 360°).
- Tighten the No. 3 screw after adjusting.
- Loosen the No. 2 adjusting screw to adjust the tilting position (0° to 90°).
- Tighten the No. 2 screw after adjusting.
- Loosen the No. 1 adjusting screw to adjust the azimuth angle of the image (0°
to 360°).
- Tighten the No. 1 screw after adjusting.
3-3
6.
Connect the camera cables and finish installation.
ENGLISH
HD Video Cable
Side Opening
Sun Shield
Power Cable
Lens
IR LED
3-2
Screw hole
360°
3
90°
2
360°
1
