Ezviz CS-C4T Installation Manual

UD.6L0208A0026A01

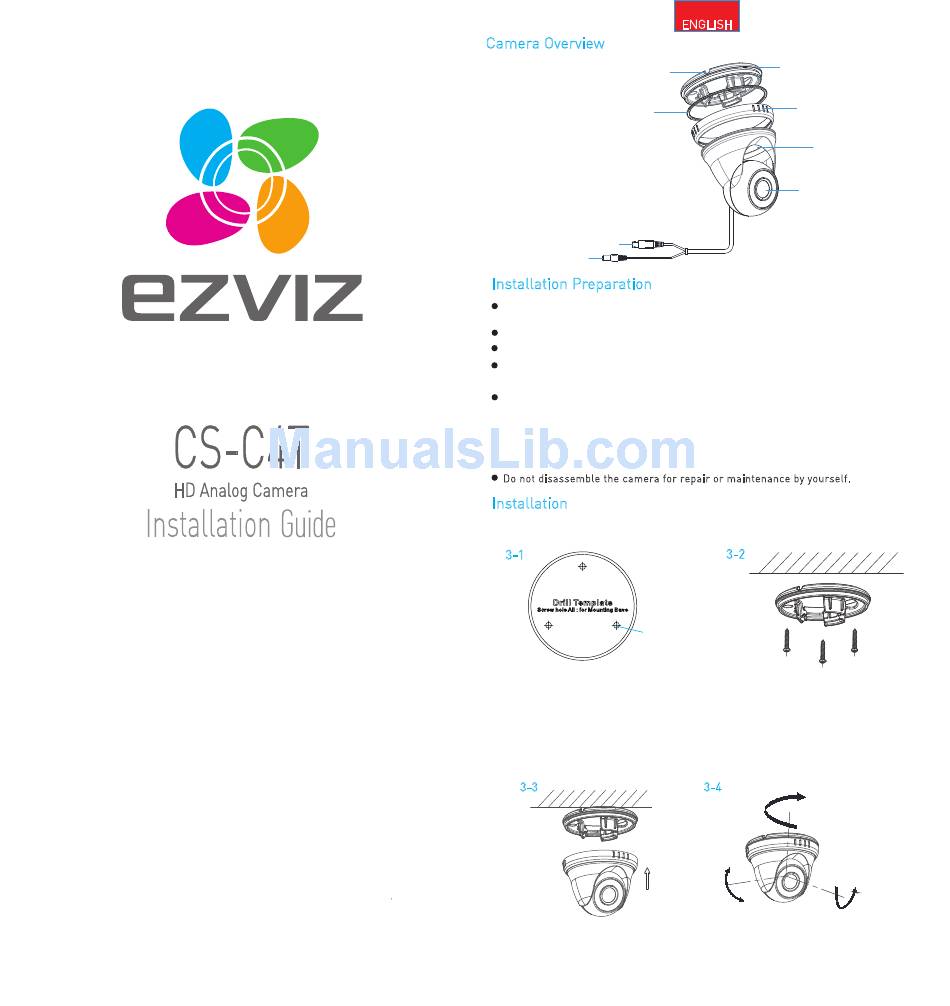

Camera Overview

Side Opening
Waterproof Circle
HD Video Cable
Power Cable
Installation Preparation
Make sure that the device in the package is in good condition and all the assembly
parts are included.
Make sure that all the related equipment is powered off during the installation.
Check whether the power supply matches your power output to avoid damage.
Make sure the wall is strong enough to withstand three times the weight of the
camera and the mounting.
If the wall is cement, you need to insert expansion screws before you install the
camera.
If the wall is wooden, you can use self-tapping screws to secure the camera.
If the product does not function properly, please contact us at 1-855-MYEZVIZ
(693-9849) or email us at service@ezvizlife.com.
Do not disassemble the camera for repair or maintenance by yourself.
Installation
1. Place the drill template sticker on the surface where the camera will be mounted.
2. Drill the screw holes according to the drill template, see figure 3-1.
3-1
Screw hole
3. Separate the mounting base by turning it counter-clockwise.
4. Route the camera cables through the mounting base and wire the cables
through the side opening.
5. Fix the mounting base to the ceiling or wall with the supplied screws, see figure
3-2.
6. Place the camera in the enclosure and combine with the trim ring, and then
secure them to the mounting base by turning the trim ring clockwise, see figure
3-3.
3-3
7. Adjust the camera according to figure 3-4 to get an optimum angle.
8. Connect the camera cables and finish installation.
ENGLISH
Mounting Base
Trim Ring
Enclosure
Camera
3-2
3-4
0° ~ 360°
0° ~ 75°
0° ~ 360°
