Intelligent Recording Call Assistant SD Quick Setup Manual page 2

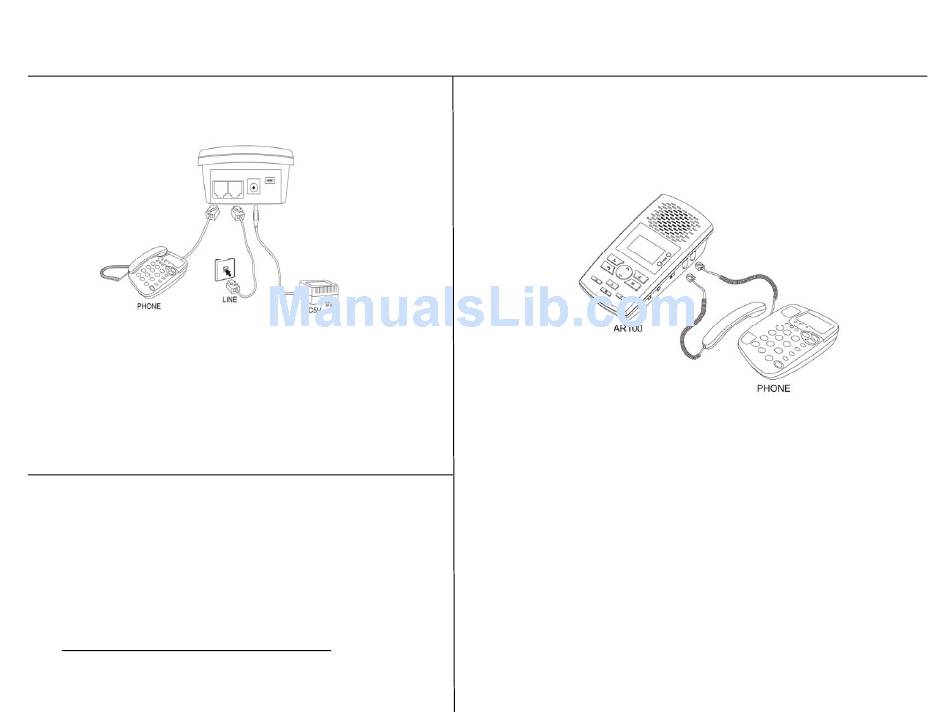

Line Mode Connection
Disconnect the telephone line cord from the base of your
telephone (the other end connects to wall socket) and plug
this into the Call Assistant SD. Connect the long cord supplied
between the Call Assistant SD and the socket on your phone
(where you removed the line cord). NOTE: The Call Assistant
SD will record calls when connected to the phone line, it is
not required that the telephone be connected to the device.
Playing Calls on the Call Assistant SD
To play calls on the speaker of the Call Assistant SD:
-
Press Soft Key One <LOG>
-
Use the Up and Down arrow keys to select the recording to play
-
Press the Play button on the Call Assistant SD
To Play Calls on your PC Consult the Users Guide from :
www.usbcallrecord.com//downloads_software.htm
Intelligent Recording
Call Assistant SD – Quick Setup Guide
HANDSET MODE CONNECTION
Handset mode connection is used when you cannot connect to the
analog telephone line directly. Examples of when you need to use
handset mode are on Digital PBX telephones, IP telephones and
Multi‐Line telephones.
To connect in handset mode, simply remove the curly cord from
your telephone base and connect into the Call Assistant SD and
connect the short handset lead supplied between the telephone
handset socket and the Call Assistant SD as shown above.
IMPORTANT ‐ SETTINGS FOR HANDSET MODE
You will need to select the correct TRIGGER MODE to ensure
handset mode operation is set. To select the correct mode:
‐ Press Soft Key 2 <Settings>
‐ Press Soft Key 1 to select <Recording>
‐ Press Down Arrow Key to select <Auto/Manual Rec> and then
press <OK>
‐ Use Down Arrow Key to select <Trig> and the press <OK>
‐ Press the <Back> key until you return to the main recording
screen
