Summary of Contents for Dr. Kern Tan Can 4000

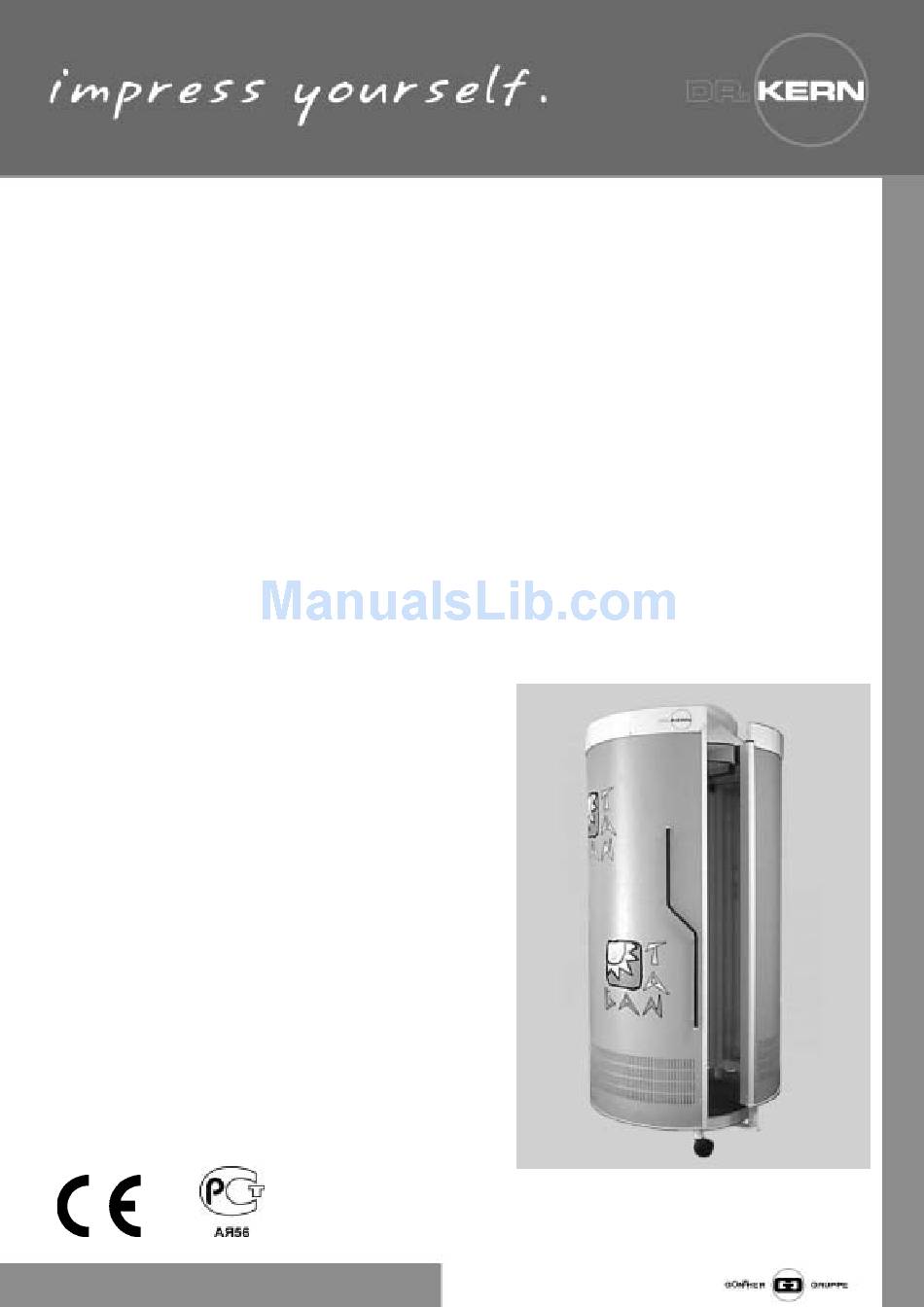

- Page 1 NSTALLATION AND UIDE UNSHOWER Tan Can 4000 Tan Can 8000 29492854 / 08.06 20013492...
-
Page 2: Table Of Contents
Contents Please note! ........................3 Interesting facts about tanning ..................3 General safety precautions ....................3 Tanning times ........................4 Tanning program ....................... 4 After tanning ........................4 System installation ....................... 5 Operation ..........................9 Operation via external timer control .................. 9 Modification to coin box operation .................. -
Page 3: Please Note
Dear Customer, Interesting facts about tanning With your purchase of a Dr. KERN tanning system, you The radiation of the tanning units is of an optimal have opted for a technically superior, high-performance composition. The special lamps emit a particularly high unit. -
Page 4: Tanning Times
After tanning Therefore, the following safety precautions must be observed: - Always use protective goggles. It is advisable to apply a moisturizing lotion to the skin - Remove cosmetics in time for tanning and do not after tanning. use any type of sunscreen agent. - Do not tan when taking medication which increases the sensitivity of the skin to ultraviolet radiation. -
Page 5: System Installation
System Installation Á Right tanning element Remove the right element (A) from package 1. You must The system is delivered in several separately packed now carry out the initial assembly of the two stand sections for transport to its final installation point. The feet. - Page 6 Ã Now lift the stand foot (8) on the lower left side into the Installing the tanning elements positioning tongue (14) in the baseplate (Fig. 9). preassembled in steps 2 and 3 Installation of the right element Lift the element and place it in the tongues provided (13 + 1) in the baseplate (Figs.
- Page 7 Ä Now bolt the operating panel (18) to the lower ceiling Installation of the exhaust unit plate (Fig. 13), using the bolts provided in the accessory Remove the following parts of the exhaust unit (E) from pack. package 4: - Ceiling plate (17) with integral central fan and The following auxiliary elements are built into to ceiling operating panel (18) plate of the TAN CAN 8000...
- Page 8 Now screw the castor (26) onto the retaining bolt (25) (Fig. Ç Installing the upper trim panels 16). Finally, fit the three trim panels (37) around the upper edge of the system (Fig. 20), using for each panel two Lift the door element with the pre-assembled bearing self-tapping screws (38) on the outside, and two M4 screws in the central area.
-
Page 9: Operation
Operation The tanning unit will be switched on by using the On/Off- À switch (fig. ) at the digital-timer. Ã Ä With the keys (fig. 25) you can select your tanning time (max. 30 minutes). Ä Ã = up, =down After loose of time the digital timer of the tanning unit switches off automatically. - Page 10 Fig. 26...
-
Page 11: Modification To Coin Box Operation
Modification to coin box operation For this procedure 2 persons are needed. l If the coinbox is not connected yet, separate the appliance completely from power supply. l During one person keeps pushing simultaneously the up and down button at the timer, the other person is connecting the appliance to power supply again. -
Page 12: Cleaning The Sunshower And The Acrylic Plates
Hose output diameter should not be reduced at any point in the exhaust line, as this may result in air blockage. Technical Specifications Tan Can 4000 Lamp tubes: 33 x 100 W UVA reflectorlamps 30 x 25 W spaghettilamps Fig. -
Page 13: Warranty
Guarantee Service address: DR. KERN GmbH The guarantee is taken over according to the legal regulations Adolf-Weiß-Straße 43 at present. 35759 Driedorf, Germany Tel. +49 (0)2775 82-240 Fax +49 (0)2775 82-455 Manufacturer’s warranty servicecenter@dr-kern.de www.dr-kern.de The period of warranty starts from the date of purchase and lasts upto 12 months.
