Installation Guide

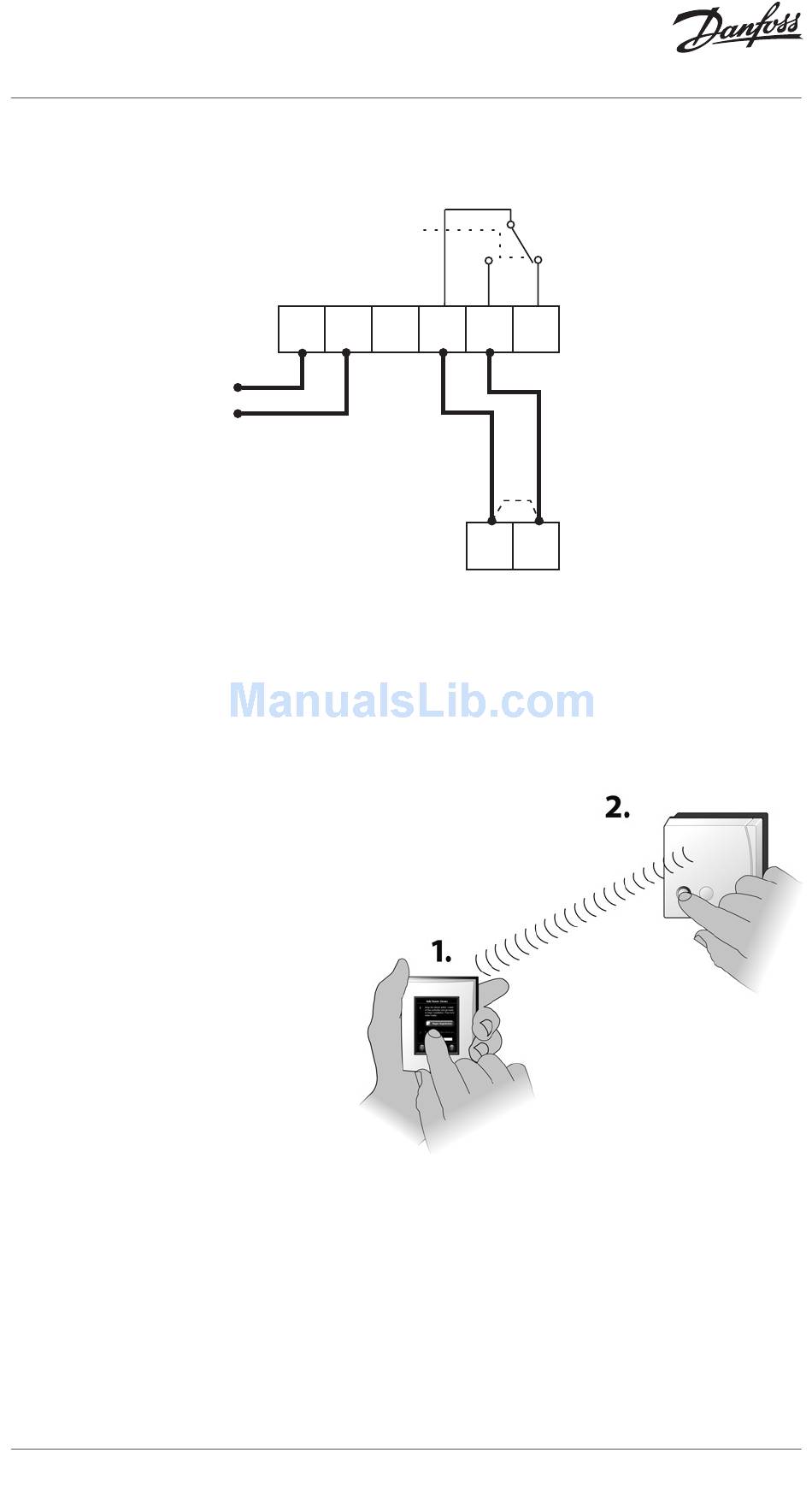

Wiring
Danfoss Link™ BR
Electronics
Note: Refer to boiler manufacturer's manual for wiring connections
to the boiler.
Adding the device
The process of adding the Danfoss Link™ BR
to a system is performed on the Danfoss
Link™ CC .
Note that the Danfoss Link™ BR
must be added as a Service
Device .
When adding, press and
release the install button,
and observe that the LED
gives a fast green flash .
If adding is successful the LED turns green permanently .
For further information, see the Danfoss Link™ CC instruction
manual .
Note: If adding the Danfoss Link™ BR to the Danfoss Link™ CC is
unsuccessful, make sure the right Danfoss Link™ CC software
version is applied. Correct version: 2.3.27 or higher.
4
Danfoss Link™ BR
N L
1
230 V AC
Boiler ON/OFF terminals
VIFZM202
2 3 4
© Danfoss
04/2012
Remove
jumper
if fitted
