Drayton HTS3 Installation Instructions

Drayton HTS3 Installation Instructions

Cylinder thermostat

Advertisement

Quick Links

T echnical Data
Setting Range
50° – 80°C
Differential
8°C approx.
Switch rating
3 (1) A 230V ac
Switch type
SPDT
Rated impulse
2.5kV
voltage
Double insulated
Earth
– not required
C – common
Connections
1 – call
2 – satisfied
Plastic-coated spring wire
Fixing
with hook and eyelet.
Pollution Degree 2
Ball pressure
110ºC
Test Temperature
I = 1% (Acc. EU
Energy Class
811/2013, 812/2013,
813/2013, 814/2013)
Conforms to the essential
requirements of the following directives:
2004/108/EC – Electromagnetic compatibility
Directive
2006/95/EC – Low Voltage Directive
2011/65/EU – Restriction of the Use of Certain
Hazardous Substances (RoHS)
Cylinder thermostats
Make
Model
Common
Call Satisfied
HTS 3
C
1
2
Lifestyle
HTS 2
R
B
Y
Danfoss
AT (CN4)
1
2
3
Randall
Drayton
CS 1/CS 2
1
2
3
Honeywell L641A
C
1
2
Landis
RAM 1
1
2
3
& Gyr
Potterton
PTT 1
L
H
C
Myson
Sunvic
1452/
3
1
2
SA2451
Sopac
SAY
C
1
2
Smiths
SCT 1
1
2
3
Tower
CS 1
R
B
Y
Barlo
CT 1
R
B
Y
Customer Service Tel: 0845 130 5522
Customer Service Fax: 0845 130 0622
Technical Helpline Tel: 0845 130 7722
Website: www.draytoncontrols.co.uk
Email: customer.care@invensys.com
090-728 ISSD

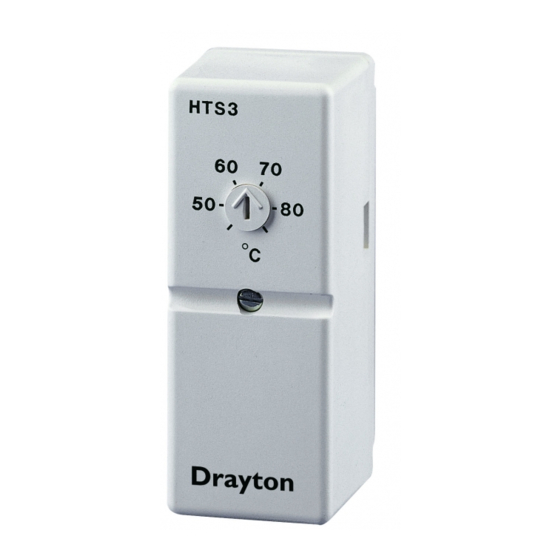

HTS3 Cylinder
Thermostat

Installation instructions
