Haswill AL8010F+ User Manual

User's Manual of AL8010F+
Heating or Cooling Controller (TC2-1412-1006)
1.

Features


Within adjustable Aim Temperature Value, Temp. Difference Value, Compressor Delay
Time, calibration value and Upper and Lower temperature setting limit.

It will change the room temperature by turn on / off the load automatically.

Auto memory exist data if electric off, need not to configure it again once power back.

With 0.1°C precision and ±1.0°C accuracy;

Different vividly icon indicators for freezing and heating mode easy to distinguish working
mode and save time compare to similar controller from other suppliers.

Alarm once room temperature exceed the measureable temperature limit.
2.

Application

Suit to refrigeration, deep freeze, seafood machine, water heater and other occasions where needs
basically function of temperature control.
3.

Package

Controller 1PCS
Fasteners 2PCS
Sensor 1PCS
Manual 1PCS
Waterproof Cover 1PCS
4.

Specification

Input Power 220V AC ± 10% 50/60HZ; (12V/24/110V Option)
Maximum current 10A (Default) under 220V AC
NTC, 25°C /10 KΩ, sensor cable 200cm
Sensor
Protection Class IP65 to front panel
Storage -10°C ~ 60°C, RH<90%, without condensation
Meas. & Control: -40°C ~ +110°C
Precision: 0.1°C
Accuracy: ± 1°C
≤ 5W
Rated Power:
5.

Environmental Information

Package: The packages material is 100% recyclable. Just dispose it through
specialized recyclers.
Product: The electro components can be recycled or reused if it is disassembled
for specialized companies.
Disposal: Please do not burn or throw the controllers in domestic garbage,
observe the respectively law in your region concerning the
environmental responsible manner of dispose its devices.
www.thermo-hygro.com

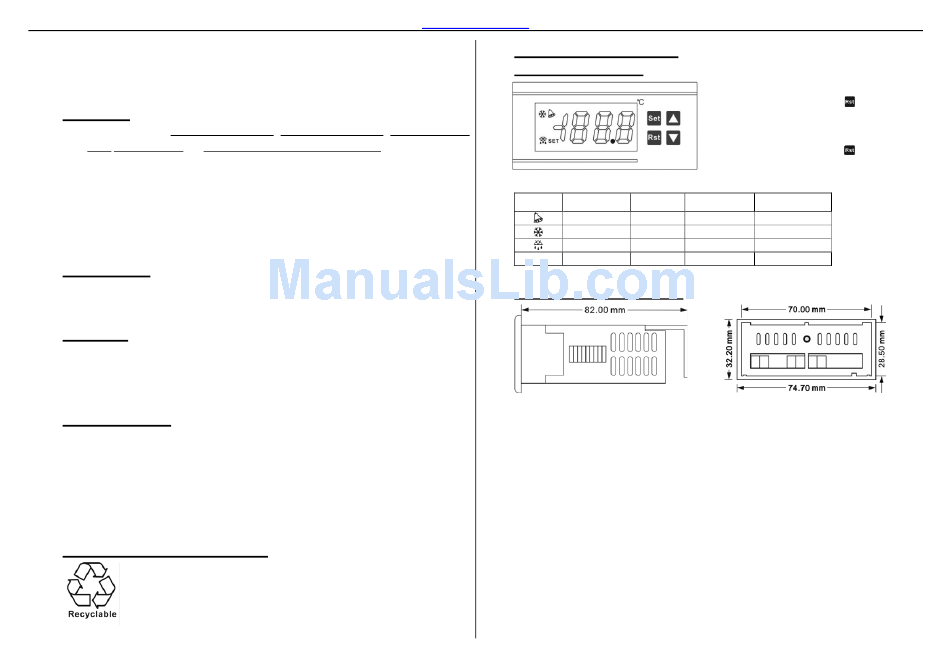

6. Interface & Operation
6.1. Front Panel & Icon
Indicator / Character in Display
Indicator Meaning
Temp. Alarm
Cooling Status Working
Heating Status Working
SET Setting Status
6.2. Dimensions & Installation
A. Suggested amount dimension: 71.0*29.0*85.0mm (W*H*D)
B. Detach the slide fasteners, put the controller into the hole, wiring follow diagram;
C. Install the fasteners, and install the waterproof cover.
D. Please avoid installing in the below environments:

Relative humidity > 90%, have condensation

The places that temperature <-10°C or >60°C;

The places that have inflammables and explosives;

Strong vibration or struck

Exposed to the continuous water mist spraying;

Exposed to the dust;

Exposure to corrosive and pollution gas (for example：the gas, smoke or salt
fog that contain sulfur or ammonia;

Wireless electromagnetic interference or strong magnetic fields (near to
transmitting antenna or switch board room);
1 / 2
Under normal status

When screen light, Press
3s to turn off the display, attention it is just
dim the screen not turn off controller;

When screen dark, Press
light on the screen.
On Hide Wink
Abnormal Normal Sensor Error
Not Working N/A
Not Working N/A
N/A Normal mode In setting mode
and hold on
and release, to
