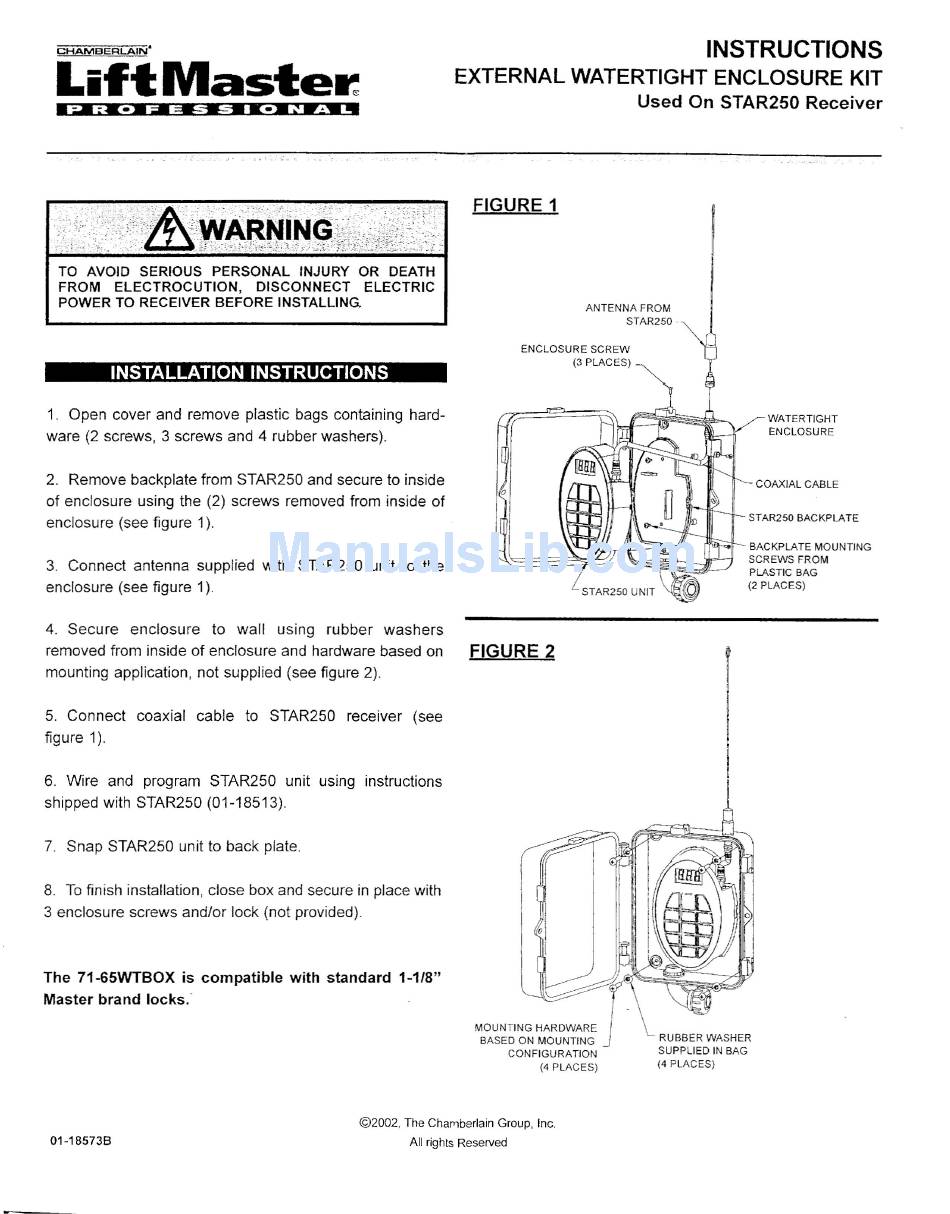

Chamberlain STAR250 Installation Instructions

Lift Mastelr!
INSTRUCTIONS
EXTERNAL WATERTIGHT ENCLOSURE KIT
Used On STAR250 Receiver
CHAMBERLAIN'
PROFESSIONAL
TO AVOID SERIOUS PERSONAL INJURY OR DEATH
FROM ELECTROCUTION, DISCONNECT ELECTRIC
POWER TO RECEIVER BEFORE INSTALLING.
INSTALLATION INSTRUCTIONS
1. Open cover and remove plastic bags containing hard-
ware (2 screws, 3 screws and 4 rubber washers).
2. Remove backplate from STAR250 and secure to inside
of enclosure using the (2) screws removed from inside of
enclosure (see figure 1).
3. Connect antenna supplied with STAR250 unit to the
enclosure (see figure 1).
4. Secure enclosure to wall using rubber washers
removed from inside of enclosure and hardware based on
mounting application, not supplied (see figure 2).
5. Connect coaxial cable to STAR250 receiver (see
figure 1).
6. Wire and program STAR250 unit using instructions
shipped with STAR250 (01-18513).
7. Snap STAR250 unit to back plate.
8. To finish installation, close box and secure in place with
3 enclosure screws and/or lock (not provided).
The 71-65WTBOX is compatible with standard 1-1/8"
Master brand locks.'
FIGURE 1
ANTENNA FROM
STAR250·
BACKPLATE MOUNTING
SCREWS FROM
PLASTIC BAG
(2 PLACES)
ENCLOSURE SCREW
(3 PLACES)
WATERTIGHT
ENCLOSURE
COAXIAL CABLE
o
STAR250 BACKPLATE
FIGURE 2
MOUNTING HARDWARE
J
BASED ON MOUNTING
CONFIGURATION
(4 PLACES)
RUBBER WASHER
SUPPLIED IN BAG
(4 PLACES)
01-185738
©2002, The Chamberlain Group, Inc.
All rights Reserved
