PREPARING THE CABINET - GLASS FROSTERS
Uncrating and Inspection
Remove all crating material. Carefully inspect
cabinet for hidden damage. If damage is
discovered, file your claim immediately with the
transport company. Perlick is not responsible for
damage in transit.
Plumbing
No plumbing connections are required.
Condensate from the cooling coil automatically
evaporated through a condensate pan located in
the condensing unit section.
Electrical
The cabinet must be connected to a separately
fused power source (see Electrical Specification
Plate affixed to unit) in accordance with National
and Local electrical codes.
Do not attempt to operate
CAUTION
the equipment on any
other power source than that listed on the
Electrical Specification Plate.
Installing Shelves (when provided)
The front and rear horizontal shelf brackets have
been factory installed for a 2 shelf kit glass froster.
Installing Casters or Legs (optional)
Attach casters or legs to the cabinet bottom in
holes provided. Use the supplied 1/4" - 20 hex
head self-tapping machine screws. If unit is tipped
on its back for an extended period of time, wait
24 hours after unit is uprighted to plug the unit in.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
Printed in USA
Glass Frosters Installation & Operation Manual
Placing the Cabinet
To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment. It is important to allow at least
two inched of clearance at the back or left end
of the cabinet. Do not place anything in front of
the cabinet that would obstruct air flow at these
grilles. Do not place the unit in an unventilated
small room.
CAUTION
spacers without providing proper left side grill
clearance for compressor air flow will void the
warranty.
Cabinet should be leveled.

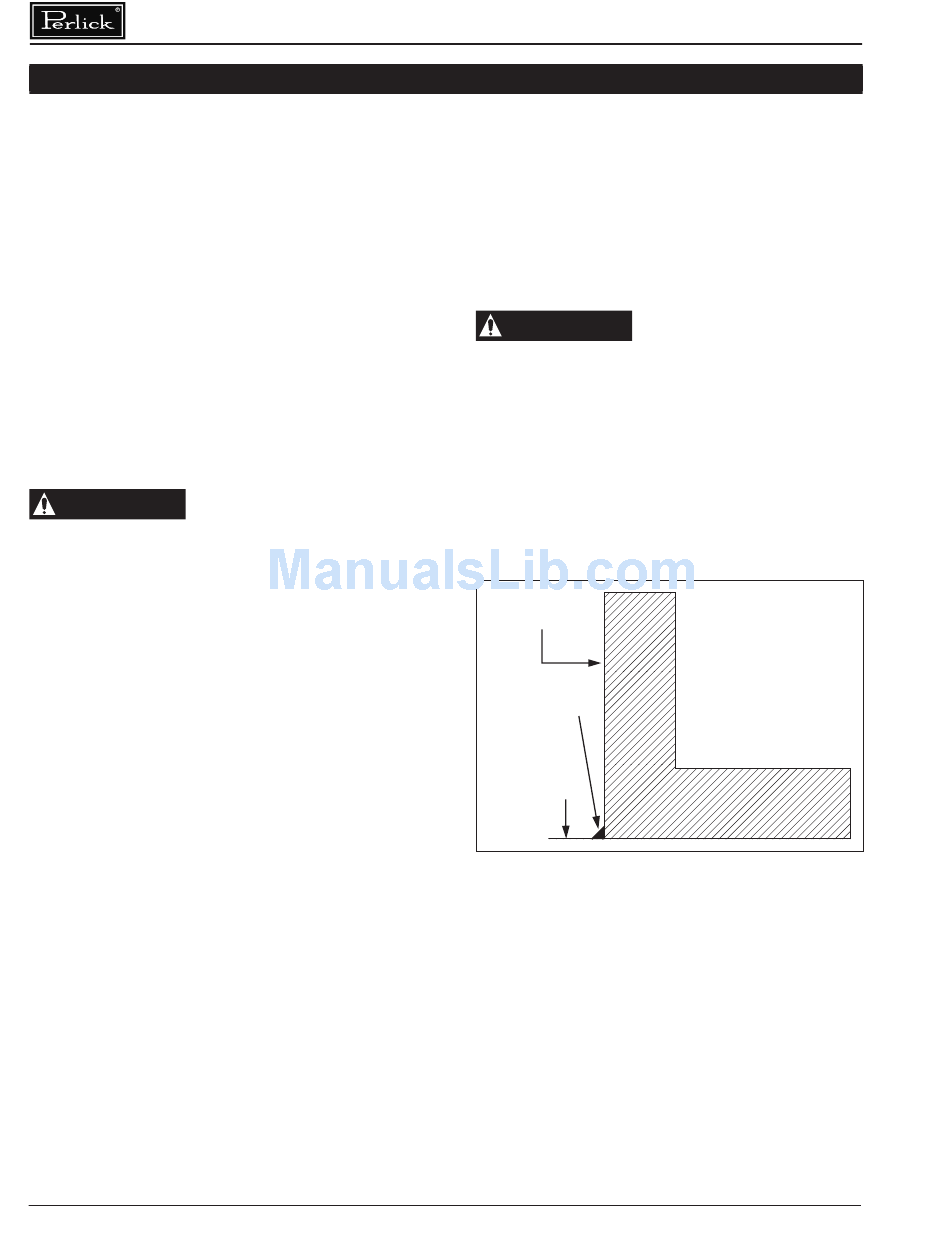

For sanitation purposed, it may be necessary to
seal the base of the cabinet to the floor. This can
be accomplished by laying a bead of silicone
sealant along the base of the cabinet as shown
by the figure below (figure 1).
Cabinet
Bead Silicon
Sealer (RTV)
Floor
Figure 1. Sealing Cabinet to Floor
4
Removing the factory
installed back clearance
