Boss Audio Systems BVML500 Quick Start Manual

QUICK START GUIDE

Universal Car Audio A/V
AirBLINK Wireless Mirror Converter
BVML500
SAFETY NOTICE
Warning: You should never operate a moving vehicle while
watching videos or playing games.
Abide all Federal, State, and Local laws
INSTALLATION PRECAUTIONS
To avoid potential shorts in the electrical
system, be sure to disconnect the (–)
battery cable before installation. Use this
unit with a 12-volt battery and negative
grounding system only. Failure to do so
may result in a fire or malfunction.
1) Ensure the Wi-Fi antenna is not attached to, or behind metal.
2) Never install this product in a heated location, expose it to
direct sunlight, high humidity, or water.
3) Do not install the BVML500 next to the vehicles electronics.
3
INTRODUCTION
Android 4.2 or newer
Congratulations on your new purchase of the BOSS AUDIO
SYSTEM BVML500. The BVML500 is a universal Wi-Fi™ mirror
converter for Android / iOS Smart devices, you can now easily
and wirelessly enlarge the view of your favorite GPS navigation
APP, listen to your favorite local audio and videos all from your
head unit. Other conveniences include a USB charging port for
keeping your Smart Devices battery topped off.
AV-OUT (USB cable not included)
INSTALLATION
RED -------------------------------------------------------------------------------IGNITION
YELLOW ------------------------------------------------------------------------- BATTERY
BLACK ---------------------------------------------------------------------------- GROUND
RED RCA -------------------------------------------------------- RIGHT AUDIO OUTPUT
WHITE RCA ------------------------------------------------------- LEFT AUDIO OUTPUT
YELLOW RCA ------------------------------------------ COMPOSITE VIDEO OUTPUT
WIRING CIRCUIT
REAR A/V A/V
Your
INPUT OUTPUT
Multimedia
Head Unit
RUN
IGNITION
RED
SWITCH
Replace with 2A AGC Fuse type only
YELLOW
BATTERY
Chassis
ground
point
4
WHAT'S INCLUDED IN THE BOX
BVML500
POWER HARNESS
ANTENNA
WIRE TIES
WARRANTY CARD
6.0 or newer
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
SUPPORTED DEVICES
iOS 6
or Newer
Device
ANDROID 4.2
or Newer
Device
BLACK
Ground wire
Chassis
ground
point
Metal frame
GETTING TO KNOW YOUR BVML500
1

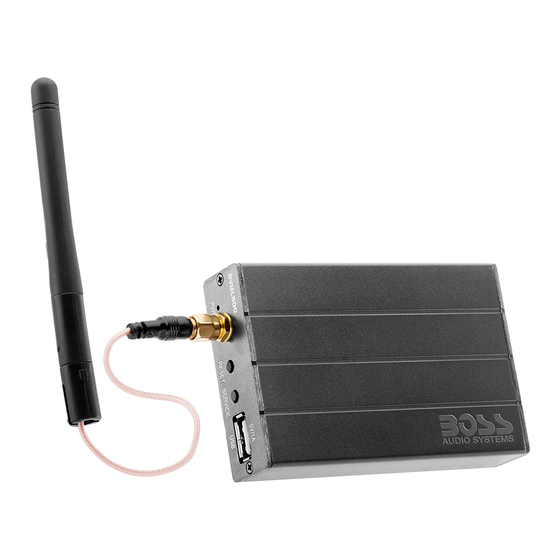

1) POWER INDICATOR: BLUE LED = ON
2) Wi-Fi SMA ANTENNA CONNECTOR (use only supplied antenna)
3) RESET: Press 1 second for RESET
4) SERVICE: Future FIRMWARE Updates (Do not use)
5) USB: Charging Port (5VDC / 1A)
6) POWER I/O: Power input and composite A/V outputs
1
SPECIFICATIONS
Power source: -------------------------------------- 14.4VDC (10.8V ~ 16V allowable)
To use AirPlay Mirroring, you will need the
following devices:
Grounding System: ------------------------------------------------------ Negative type
iPhone 4S / 5 / 5C / 5S or later Maximum current consumption: ---------------------------------------------- 1.75A
iPad 2 / 3 / 4 / Air or later USB output: -------------------------------------------------------------------- 5VDC @ 1A
iPad Mini / Mini Air or later Wi-Fi: -------------------------------------------------------------------------- 802.11 b/g/n
iPod Touch (5th Generation or later)
Wi-Di compatibility: ----- AirPlay/MiraCast/AllShare/Screen Mirroring/DLNA
Use Miracast / WLAN Display / AllShare Cast Video output type: ---------------------------------------- Analog composite (CVBS)
Screen Mirroring Devices
Color system: ---------------------------------------------------------- NTSC / PAL (Auto)
Samsung Note 2, Note 3, Note 10.1, S3, S4, S5
Chassis dimensions HxDxW: -----0.79"x 2.56" x 3.74" / 20mm x 65mm x 95mm
Unit weight: ------------------------------------------------------------ 0.25lbs / 0.114kg
Storage temperature: -------------------------------- -4°F to 160°F / -20°C to 70°C
Operation temperature: ------------------------------ 32°F to 110°F / 0°C to 45°C
Replace fuse with AGC type only
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
