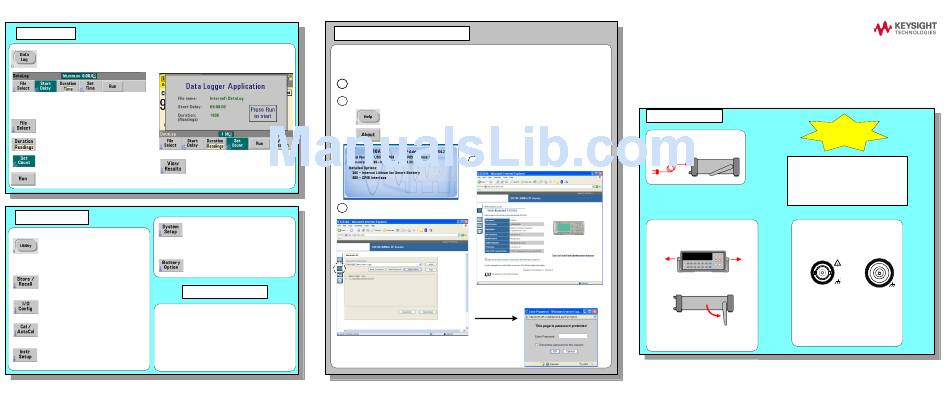

Keysight Technologies 53210A Quick Start Tutorial

6. Data Logging
Use the 'Data Log' key to log
Readings are saved and displayed within a
readings over time or based on trend chart as they are logged. (The application
reading count. can be stopped before the duration ends.)
Example: - log 1,000 readings
- use default path and file name
- specify location of data log file
(default = Internal\DataLog)
- set logging duration ('Readings')
- number of readings to log
- displays the trend chart when logging
is complete.
- starts data logging
(select 'Yes' to overwrite existing file)
7. Utility Functions
- display control, date/time settings,
folder and data/state file operations,
Utility functions are counter operations
browser control (internal and external
and settings common to multiple types
memory)
of counter measurements. Below is a
summary of what the utility menus
provide. - battery option 300 enable and
charge level (if installed)
- store and recall user-defined states, set
specific power-on states, restore factory
default settings
For Further Information
- enable/edit LAN, USB, and GPIB
interface settings
1. Keysight 53210A User's Guide
- perform a calibration or auto-calibration, 2. Keysight 53210A/53220/53230A Service Guide
read temperature within instrument
3. Keysight 53210A Programmer's Reference
- self-test, time base, measurement time
4. Keysight 53210A/53220/53230A Product Reference
out, auto-level
CD
www.keysight.com/find/53210A
Using the 53210A Web User Interface
The Web User Interface (UI) is a built-in instrument utility that provides SCPI programming control of
the instrument through its LAN interface. The Web UI uses a Java™-enabled PC Web browser and
requires no external instrument drivers.
Connect a standard LAN cable directly between the counter and the PC, or between the
1
counter and a network switch. Open the Web browser.
Obtain the IP address from the counter's 'About' window using the following keys:
2
- open the Help topic window
- press the About softkey
Enter the IP address in the browser's address
3
window. This opens the Web UI home page.
4 Open the Interactive IO window by clicking
on the 'Remote Control' menu icon.
If prompted, click on 'Enter Password' to view
the password protected page. When shipped
from Keysight, there is no password
protection.
Enter commands from the counter's SCPI command set using
the 'Command' window. Query commands which include '?'
return data and can be sent using Send & Read. Commands which
do not return data are sent using Send Command.
Keysight 53210A
350 MHz RF Counter
Quick Start Tutorial
Product Reference CD-ROM. All product documentation, software, and examples
are included on the Keysight 53210A/53220A/53230A Product Reference CD-ROM.
1. Preparing for Use
Check the Web for
Connect the Power Cord. the latest firmware
Then plug in the instrument.
The Keysight 53210A counter
automatically senses standard power line
voltages and frequencies. There are no
switches to set or fuses to change.
Adjust the Carry Handle Input Terminals
Grasp the handle by the
sides and pull outward:
Channel 1
BNC (f)
Adjust the handle to the
desired position:
7.5 Vpk into 50W
50V Max (AC/DC)
Damage Level: 350 Vpk
Battery Operation: 42V Max
To remove, see instructions
on underside of handle.
© Keysight Technologies 2011, 2014
Printed In Malaysia August 2014 E0814
53210-90005 Edition 3
Channel 2
Opt. 106/115
N-Type (f)
!
Max input +27 dBm
(5 Vrms)
