Lochinvar Crest 1.5 Installation Instructions

98624665
GRUNDFOS MAGNA 3 VARIABLE SPEED PUMP WITH LOCHINVAR BOILERS

Installation and Setup Procedure

1. Refer to the installation manual provided by the pump
manufacturer to install the pump. NOTE: The boiler
MUST be installed in the Primary / Secondary piping
configuration. Refer to the installation and operation
manual provided by the boiler manufacturer to ensure the
proper system piping configuration.
2. Reference FIG. 1 to connect wiring to the boiler's low
voltage control board on the "Boiler Pump Out" terminal:
a. Connect the (+) wire from the boiler to "In"
connection on the pump 0-10V wiring terminal.
b. Connect the (-) wire from the boiler to the ground
terminal on the pump 0-10V wiring terminal.
3. Connect line voltage to the pump as shown in the
"Wiring" section of the boiler installation manual.
4. Reference Tables 1A and 1B on this instruction sheet to
determine the setpoint percentage of the pump.

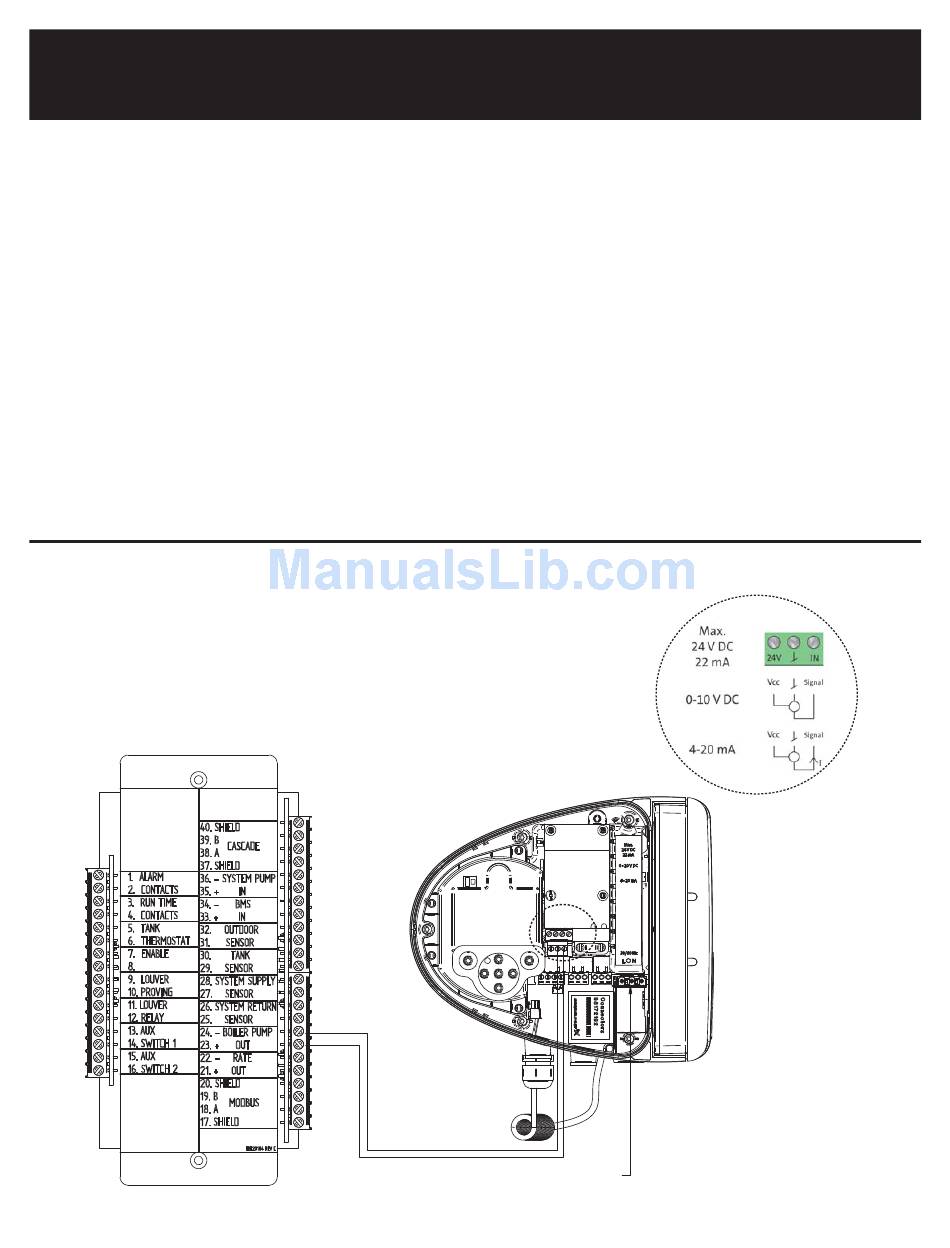

Figure 1 Wiring Connections

INSTALLATION INSTRUCTIONS
FOR CREST 1.5 - 5.0 AND KNIGHT 400 - 801
5. Follow the procedure below to apply the pump setpoint:
a) From the pump Home screen use the arrow keys to
select "Setpoint".
b) Select "OK" to go to the Setpoint screen.
c) Use the arrow keys to to assign a setpoint based on the
information provided in FIG. 2, on page 2.
d) Select "OK" to save the setting.
e) Select the "Home" button to return to the Home
screen.
6. The pump is pre-programmed for 0-10V operation, but
the boiler will require set-up to control the variable speed
pump. Follow the instructions for variable speed pump
setup in the boiler installation manual.
A
POWER CONNECTION
INS90011 Rev B
DETAIL A
