Summary of Contents for Botex DR-Pro Rack

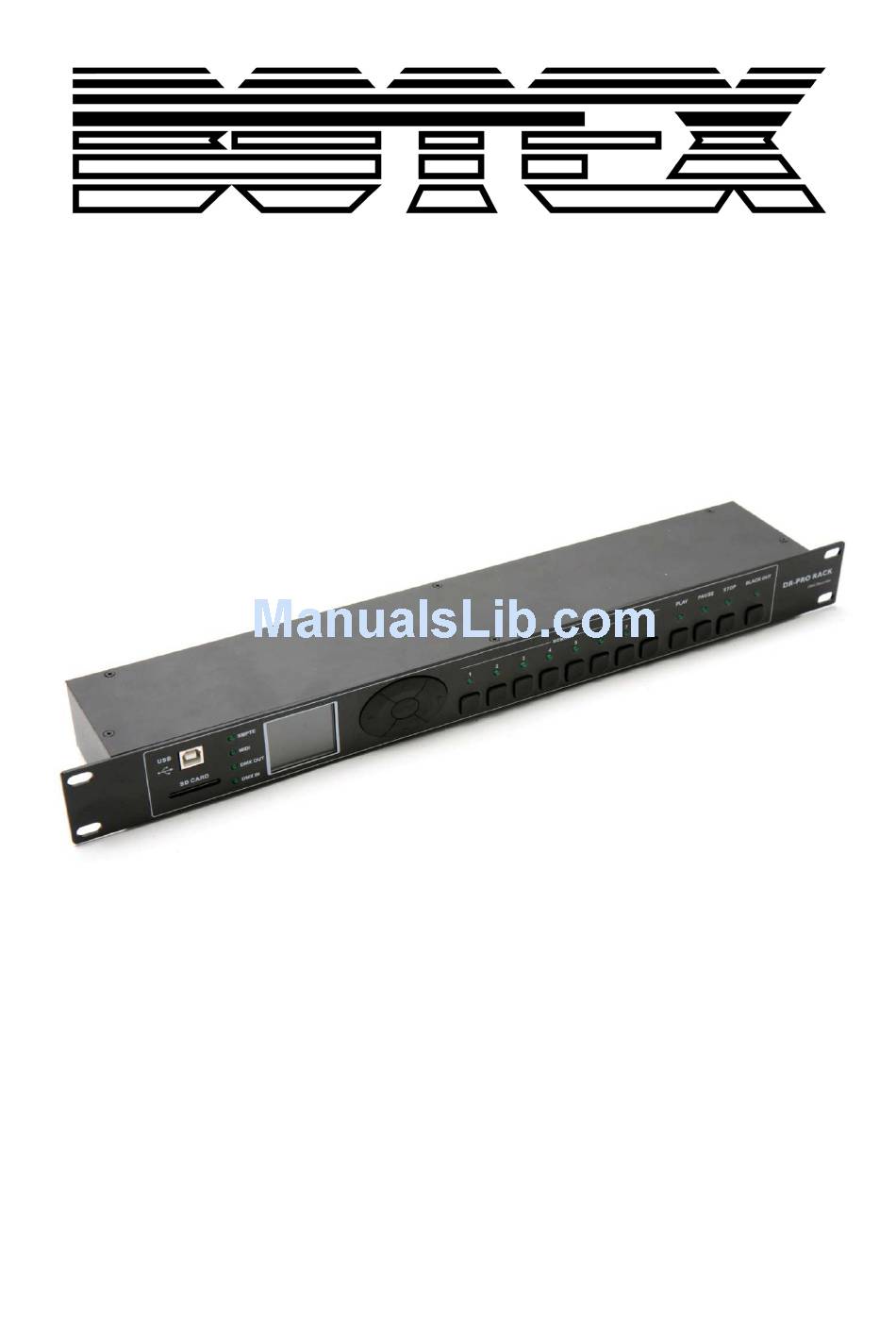

  • Page 1 Manual Recorder DMX DR-Pro Rack...

  • Page 2: Table Of Contents

    Inhaltsverzeichnis Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Overview ............................5 2.1. Front view ..........................5 2.2. Rear view ..........................6 Control .............................. 7 3.1. Operation modes ........................7 3.2. User settings ..........................7 3.3. Points of menu .........................

  • Page 3: Safety Instructions

    1. Safety instructions • Read the safety instructions and also this manual carefully. • Keep the manual. • Observe all red flags. • Observe the manual. • To prevent fire or electric shocks, protect the device against rain and humidity •...
  • Page 4 Safety Do not remove the grounding. It is for your safety. If you remove the grounding it can cause electric shocks. Accessory Please use only the accessory which is set by the manufacturer. Important Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

  • Page 5: Overview

    2. Overview 2.1. Front view 1. USB Port Here you can connect a PC for updates, etc. 2. SD Card Slot Here you can put in a SD card. 3. DMX Out Anzeige This LED lights if the device sends a DMX signal. 4.

  • Page 6: Rear View

    2.2. Rear view 1. DMX IN 2. DMX OUT 3. MIDI IN 4. SMPTE IN 5. Memory 1-8 contact loop point Here can you select by potential-free contacts the memories 1-8. 6. Play/Pause/Stop contact loop point Here you can select by potential-free contacts Play/Pause/Stop. 7.

  • Page 7: Control

    3. Control 3.1. Operation modes There are 5 different operation modes. 1. Manual Control 2. Real-Time Trigger 3. Time Code Trigger 4. External DMX Trigger 5. DMX Monitor To get to the menu press and hold the OK button for at least 2s. With the UP and DOWN buttons you can set the required operations modes.

  • Page 8: Add A Chase

    2. Auto In this mode the recorder starts the record if every DMX channel is set to 0. While the recorder receives data unequal 0 the device is in standby mode and waits for the start of the record. If all DMX channel are, after the start of the record, again 0 the recorder stops the record.

  • Page 9: Delete A Scene, Show Or Chase

    3. You can also insert or delete steps. 4. With CONFIRM&RETURN you can leave the menu. 3.3.4. Delete a scene, show or chase To delete go to the menu DELETE SCENE, SELETE SHOW or DELETE CHASE according what you want to delete. You get a list of all stored variants. Choose which you want to delete and press ENTER.

  • Page 10: Smpte/Mtc Trigger

    Important The DATELY EVENT has a higher priority as the WEEKLY EVENT. To start a WEEKLY EVENT after a DATELY EVENT has run, you have to insert a NO MEMORY TRIGGER to reset the device. Delete an Event Depending on what you want to delete, you have to confirm DELETE DATELY and DELETE WEEKLY with ENTER.

  • Page 11: Assign Memory

    Play Stop Normal output Blackout At the point NO DMX IN you could decide what should happen if there is no DMX signal. At the point NO SMPTE/MTC you could decide what should happen if there is no MTC or SMPTE signal.
  • Page 12 recorder to the SD Card. Copy of all data of the pictures from the recorder Picture SD Card to the SD Card. Copy of all data of the scenes from the recorder SD Card to the SD Card. You can also load your data from the SD Card to the recorder. If you connect your recorder via USB with your PC you will find a hard disk where you can store or load your data directly.

  • Page 13: Technical Data

    4. Technical data Power supply Voltage 9-12 V; 500 mA min. Battery Connections XLR in/out 3pol XLR Input 1 Midi in Controlling DMX512 Hardware Dimension (L/B/H) 482 x 100 x 44 mm Weight 1,2 kg 13 / 16...
  • Page 14 14 / 16...
  • Page 15 15 / 16...
  • Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 16 / 16...
