- Page 1 DR-512 USER INSTRUCTIONS ( 24-004-1126 Rev 1.1 ) SEQ 1 SEQ 2 SEQ 3 SEQ 4 NEXT MODE START-UP DR-512 POWER CF CARD DOWN ENTER CARD SHUT-DOWN PLAY PAUSE STOP RECORD E-mail: info botex.com Internet: www.botex.com...
-
Page 2: Table Of Contents
User Manual DR-512 Table of contents 1 General Instruction..................3 2 Features......................3 3 Notice Information ..................3 3.1 Warnings.....................3 3.2 Copyright.....................3 4 Control and Functions..................4 4.1 Front panel....................4 4.2 Rear panel ....................5 5 LCD display ..................... 6 6 Operation Modes .....................6 6.1 Manual mode ....................6... -
Page 3: General Instruction

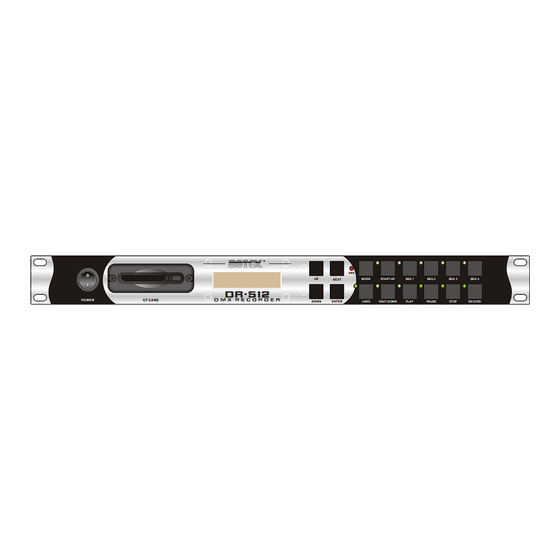

User Manual DR-512 1 General Instruction DR-512 is a professional DMX recorder with many useful functions. This unit can translate standard DMX512 signals into recorded data, and send them out at any convenient moment. These signals can be recorded to both the internal storage and the external CF card. -
Page 4: Control And Functions
User Manual DR-512 4 Control and Functions 4.1 Front panel 5 6 7 SEQ 1 SEQ 2 SEQ 3 SEQ 4 NEXT M ODE START-UP DR-512 POWER CF CARD DOWN ENTER CARD SHUT-DOWN PLAY PAUSE STOP RECORD 10 11 12 13 14 1. -
Page 5: Rear Panel
User Manual DR-512 12. CARD key : to switch between the operations for internal storage and the CF card storage. Relevant LED “on” means CF card operation is available, while LED “off” means internal operation is available. 13. SHUTDOWN key : to activate the SHUTDOWN function. -
Page 6: Lcd Display
User Manual DR-512 5 LCD Display MANUAL ■ Sh01 00:00:00 • Press “PLAY” , “►” will appear on the top right corner of the LCD; Press “PAUSE”, “ ” will appear on the top right corner of the LCD; Press “STOP”, and “■” will appear on the top right corner of the LCD. -
Page 7: Autostart Mode
User Manual DR-512 • For external storage, press CARD key, the relevant LED will light up, that means you have entered the CF card operation(CF card should be firstly formatted before use). The UP / DOWN keys can be used to choose sequences, and the PLAY / PAUSE / STOP keys can be used to control the running of sequences. -
Page 8: Dmx Trigger Mode
User Manual DR-512 • Once received effective DMX signals, the running sequences will be stopped automatically. Function upon PLAY, PAUSE and STOP keys will disabled. • Should the DMX signals be disabled, operation could be done manually. 6.4 DMX TRIGGER mode •... -
Page 9: Setup Mode
User Manual DR-512 6.6 SETUP mode Seven items are offered and can be selected in this SETUP mode as below. (1) Smpte Trig : enter this submenu to trigger the Smpte signals and to set the trigger time. Press NEXT key, and then use UP / DOWN keys to choose Yes or No (Y/N), and press ENTER key to enter the trigger time setting mode. -
Page 10: External Terminals
User Manual DR-512 7 External Terminals As the following flowchart shows, SeqA and SeqB can be used to realize the remote control upon 02. The PLAY, STOP, RECORD keys can be used to control the relevant running states. Some information about Prg-mode LED, Record LED and Play LED : When being in PRG mode, the Prg-mode LED will be “on”. -
Page 11: Troubleshooting (Faq)
User Manual DR-512 9 Troubleshooting (FAQ) • Problem : The Program mode is skipped during mode switching . Cause : In order to protect the data and prevent them from being erased, the Program mode has been locked. Recovery : press MODE key to enter the SETUP mode , select submenu 7 and set the “Lock Program”...
