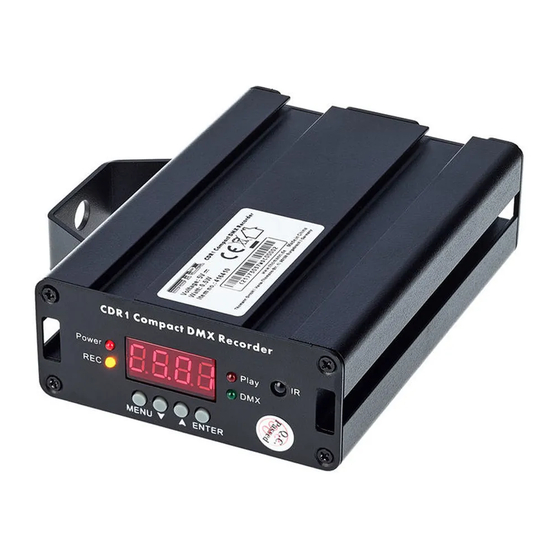

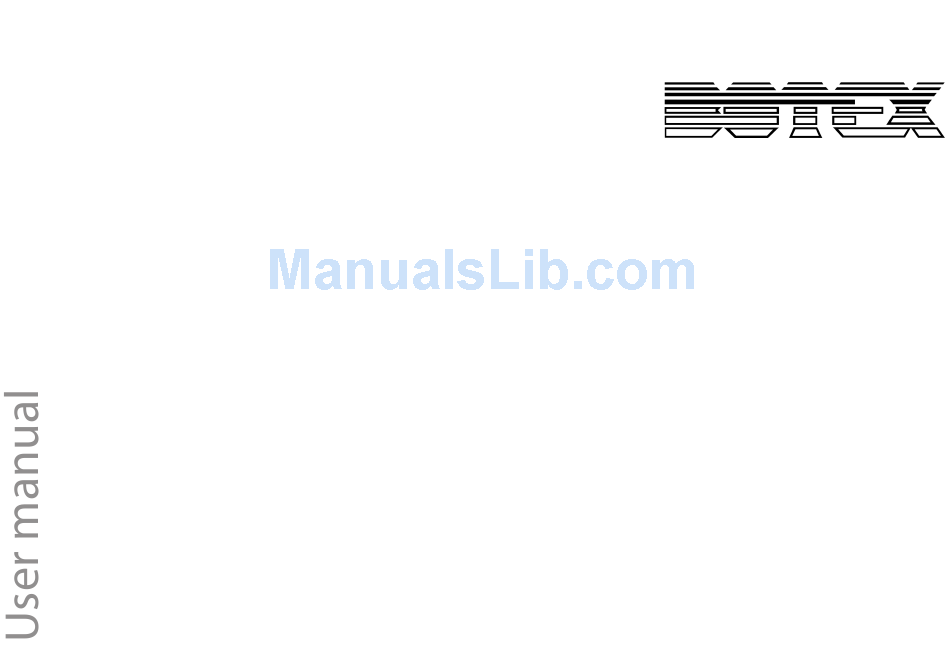

- Page 1 CDR1 DMX recorder...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 23.11.2017, ID: 416410...
-
Page 3: Table Of Contents
Features............................... 12 Installation and starting up........................ 13 Connections and controls........................16 Operating..............................21 6.1 Operating controls on the device....................21 6.2 Remote control operation......................27 Technical specifications........................28 Plug and connection assignments....................29 Protecting the environment......................30 CDR1 DMX recorder... - Page 4 CDR1 DMX recorder...
-
Page 5: General Notes
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. CDR1 DMX recorder... -
Page 6: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. CDR1 DMX recorder... -
Page 7: Notational Conventions
Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. CDR1 DMX recorder... - Page 8 NOTICE! This combination of symbol and signal word indicates a pos- sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. CDR1 DMX recorder...
-
Page 9: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. CDR1 DMX recorder... - Page 10 NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. CDR1 DMX recorder...
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. CDR1 DMX recorder...
-
Page 12: Features
Playback in endless loop possible Speed and fading between recorded scenes adjustable Sound-controlled operation via built-in microphone possible Suitable for truss or wall mounting Operation via buttons and display on the unit or the supplied infrared remote control CDR1 DMX recorder... -
Page 13: Installation And Starting Up
Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. CDR1 DMX recorder... - Page 14 Connect the output of the first DMX device (1) to the input of the second one and so on, to form a series connection. Make sure that the output of the last DMX device (n) in the chain is terminated by a resistor (110 Ω, ¼ W). CDR1 DMX recorder...
- Page 15 Slide the battery holder back into the remote until it clicks into place. When shipping, the battery is already installed in the remote and protected against discharge by a transparent plastic foil. Remove the plastic foil prior to first use. CDR1 DMX recorder...
-
Page 16: Connections And Controls
Connections and controls Connections and controls CDR1 DMX recorder... - Page 17 : increases the displayed value by one. [ENTER]: selects an option of the respective operating mode, confirms the set value. 6 [IR] Infrared sensor for the signals from the included remote control. 7 Variable fastening element for wall or ceiling mounting. CDR1 DMX recorder...
- Page 18 10 [DC IN] Micro USB port for connecting the plug-in power supply. 11 [DMX OUT] Output for the DMX signal to other DMX-controlled devices. 12 [DMX IN] Input for the DMX signal, for example from a DMX controller. CDR1 DMX recorder...
- Page 19 Selecting a chase sequence within the selected group. 24 [Fade +/–] Setting the fading speed. 25 [Master +/–] Increases or decreases the value transmitted on all DMX channels by one. 26 [Speed +/–] Setting the programme speed. CDR1 DMX recorder...
- Page 20 Connections and controls 27 [1–6], [7–12] Selects a group. 28 [REC] Starts recording. Starts / stops the playback of a chase sequence. CDR1 DMX recorder...
-
Page 21: Operating
[ENTER]. The [REC] LED flashes, the display shows the number of the currently recorded step. In your DMX controller, configure the scene you want to record and press [ENTER]. Repeat this process until the chase sequence is completely recorded. Press [MENU] to stop recording. CDR1 DMX recorder... - Page 22 ‘FAde’ . Use the arrow buttons to set a speed in the range ‘0’ … ‘100’ . Confirm with [ENTER]. Playback runs in an endless loop. To stop playback, press [ENTER], use the arrow buttons to select the option ‘no’ , and confirm with [ENTER]. CDR1 DMX recorder...
- Page 23 To adjust the sensitivity of the built-in microphone for the sound control, use the arrow but- tons to set a value in the range ‘000’ … ‘100’ . Confirm with [ENTER]. Press [MENU] to return to the main menu. CDR1 DMX recorder...
- Page 24 Press [MENU] repeatedly until the display shows ‘dISP’ . Confirm with [ENTER]. Use the arrow buttons to select whether the display is to be shown reversed (select ‘dSIP’ ) or not (select ‘dISP’ ) and confirm with [ENTER]. Press [MENU] to return to the main menu. CDR1 DMX recorder...
- Page 25 Press [MENU] to return to the main menu. Software version Press [MENU] repeatedly until the display shows ‘uer’ . Confirm with [ENTER]. Confirm with [ENTER]. The software version of the device will appear on the display. Press [MENU] to return to the main menu. CDR1 DMX recorder...
- Page 26 Operating Menu overview CDR1 DMX recorder...
-
Page 27: Remote Control Operation
Use [Speed +/–] to set the playback speed and [Fade +/–] to set the fading time. Use the arrow buttons to skip steps forward and backward during playback. You can pause or restart the current playback with CDR1 DMX recorder... -
Page 28: Technical Specifications
Technical specifications Technical specifications Voltage supply 5 V / 300 mA Dimensions (W × H × D) 100 mm × 41.5 mm × 148.5 mm Weight 0.5 kg CDR1 DMX recorder... -
Page 29: Plug And Connection Assignments
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) CDR1 DMX recorder... -
Page 30: Protecting The Environment
Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat- teries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. CDR1 DMX recorder... - Page 31 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. CDR1 DMX recorder...
- Page 32 Notes CDR1 DMX recorder...
- Page 33 Notes CDR1 DMX recorder...
- Page 34 Notes CDR1 DMX recorder...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
