JBL VRX915S Technical Manual

Technical Manual
JBL VRX915S

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 4 Ohms
• Power Capacity: Continuous / Program / Peak:
Passive: 800W / 1600W / 3200W
• Frequency Range: 35 Hz – 250 Hz (–10 dB)
• System Sensitivity: Passive Mode 91 dB SPL
• Maximum Peak SPL: 126 dB SPL
• Crossover Freq.: HPF: Butterworth 24 dB /oct, 45 Hz
LPF: Linkwitz-Riley 48 dB /oct, 80-120 HZ
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not For Sale)
• Grille: 363892-001
• Low Frequency 2265G-1, 250 mm (15 in) Differential Driver
Transducer: Woofer
• DC Resistance: 5.2 ohms ± 10%
• Crossover Network: Terminal Cup
PACKAGE
Owners Manual
353551-007
Carton
363924-001
Filler (2)
363923-001
Pkg,Microfoam (8)
49790P
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

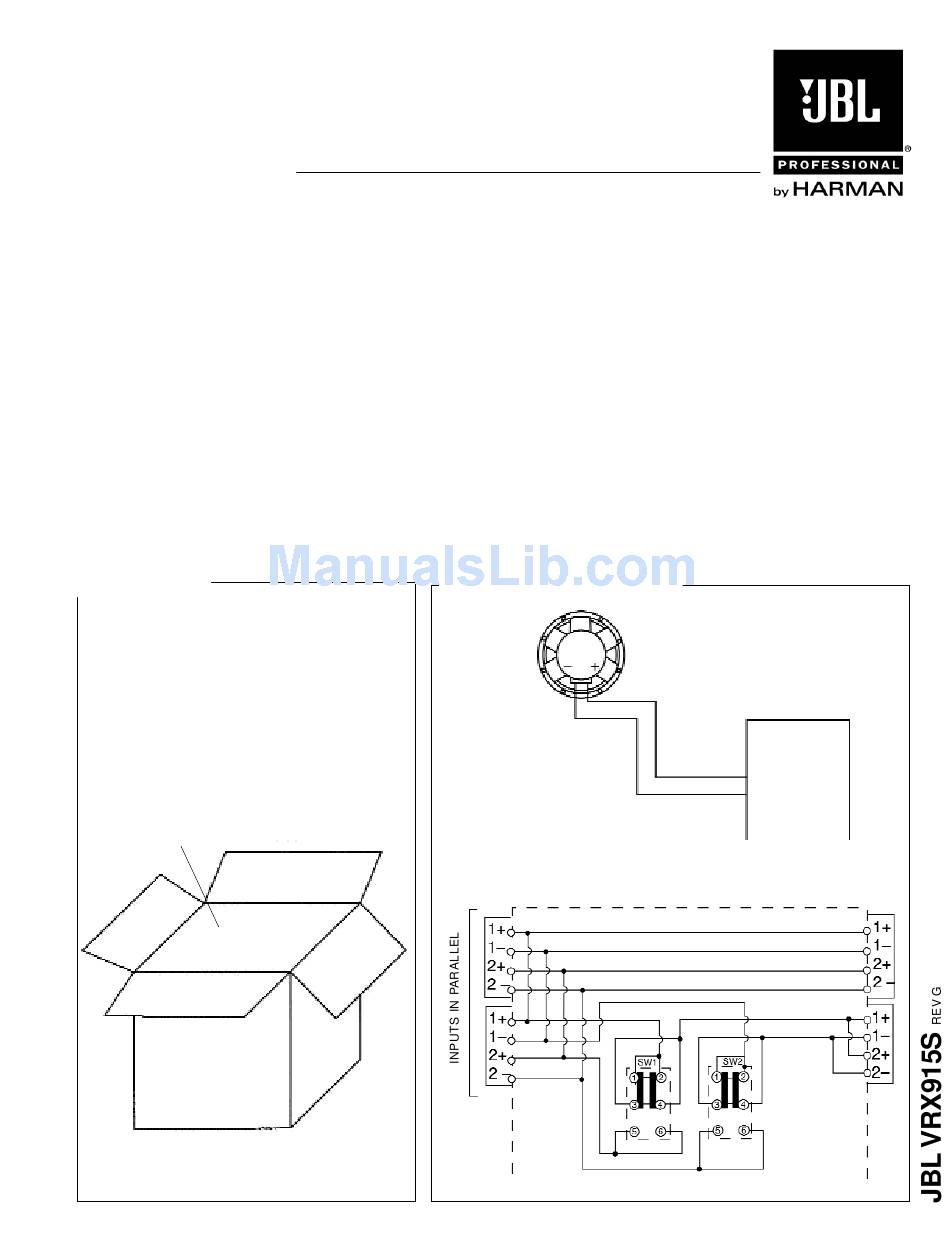

WIRING DIAGRAM

Warranty 59660
Driver,
Low Freq
2265G-1
(338343-007X)
Cone Repl
C4R2265-1
NL4MP (2)
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 10.0V Input, 20 Hz to 1 kHz
B. L.F. Aural Sweep Test: 10.0V Input, 40 Hz to 1 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 496 mm x 420 mm x 597 mm D
(19.5 in. x 16.5 in. x 23.5 in. D)
• Net Weight: 58 lbs. (26.3 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
GRN
GRN/BLK
TERMINAL CUP SCHEMATIC 353601-001
Terminal Cup
353601-001
PCB
+1/–1
+2/–2
02-13
