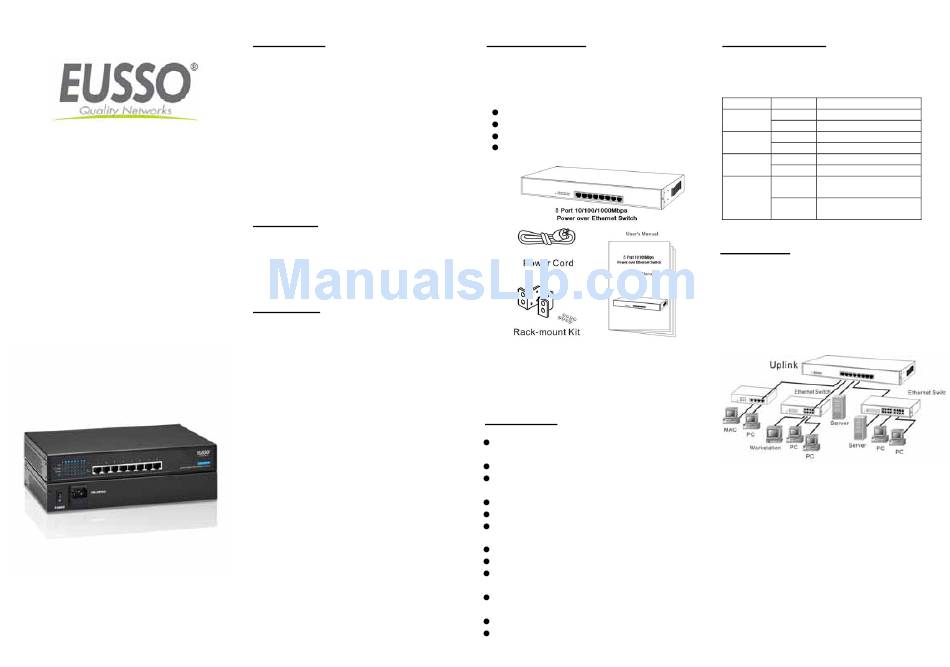

Eusso UPE5408-GE User Manual

8 Ports PoE
Gigabit LAN Switch
User's Manual

FCC Warning

This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when
the equipment is operated in a commercial
environment. This equipment generates
and radiates radio frequency energy and, if
not installed and used in accordance with the
user's manual, it may cause interference in
which case users will be required to correct
interference at their own expenses.

CE Warning

This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.

Introduction

This switch provides 8 10/100/1000M ports. It
is designed for easy installation and high
performance in an environment where traffic
is on the network and the number of users
increases continuously.
It consists of 8 PSE/PoE ports. That can solve
the limitation of the power outlet location and
offer the system designer a flexible solution to
locate the network device everywhere.
The device size is specifically designed for
medium to large workgroups. The Switch can
be installed where space is limited; moreover
it provides smooth network migration and
easy upgrade to network capacity. The PoE
switch can be rack-mount on 19" cabinet.

Package Contents

Before you start to install this switch, please
verify your package that contains the following
items:
One PoE Gigabit Ethernet Switch
One Power Cord
One User's Manual
Rack-mount Kit (Option)
Note: If any of these items is found missing or
damaged, please contact your local supplier
for replacement.

Key Features

8 Port 10/100/1000M Nway
(Auto-negotiation) Switch
8 PSE/PoE function ports
Supporting the power Max. 30 W for each
PSE/PoE port
Compact size
Auto-learn of networking configurations
Auto-detect full/half-duplex modes for any
port
Dedicated full-duplex 2000Mbps bandwidth
Store-and-Forward switching methods
IEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
Non-blocking & Non-head-of-line blocking
full wire speed forwarding
Auto-MDI/MDI-X function for any port
Smart plug & play

Front Panel (LEDs)

LED Indicators of 8 Port PoE
10/100/1000M Switch
LED Status Description
ACT On Port is for connection.
Off No connection.
10/100 Off 10M
On 100M
1000 On 1000M
Off
PoE On Port is linked to Power
Device
Off No Power Device is
connected

Connections

Switch/Hub to this 8 Port PoE Gigabit
Ethernet Switch
This switch provides automatic crossover
detection functionality for any port.
simple and friendly to up-link to another
switch without crossover cable.
It is
