INSTALLATION, OPERATING AND SERVICE MANUAL

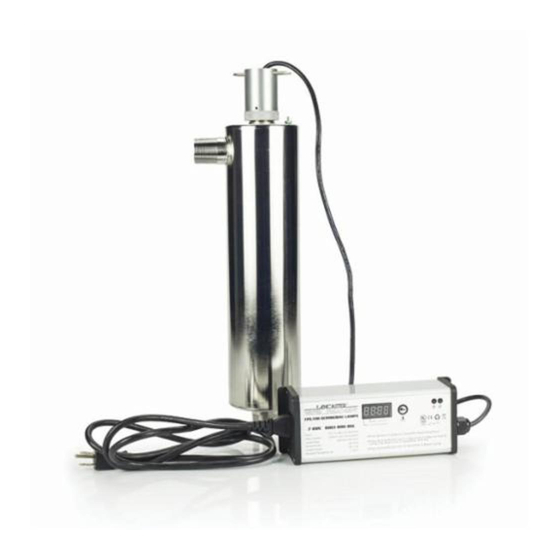

LANCASTER ULTRAVIOLET DISINFECTION SYSTEMS
PLEASE CAREFULLY READ INSTRUCTIONS BEFORE INSTALLING SYSTEM
FOLLOW ALL STATE AND LOCAL CODES AND REGULATIONS FOR PLUMBING AND ELECTRICAL.
7-LWT-UV009
7-LWT-UV016
7-LWT-UV030
Congratulations on purchasing your new Lancaster Water UV Disinfection System. This unit is
designed to give you many years of trouble free service. For servicing and future inspection purposes,
please file this booklet with your important documents.
In the event that you need assistance for servicing your UV system, please first contact the
professional contractor who installed the system.
INSTALLATION BY A CERTIFIED PLUMBER IS RECOMMENDED.
FOR
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lancaster 7-LWT-UV009
Summary of Contents for Lancaster 7-LWT-UV009
- Page 1 7-LWT-UV009 7-LWT-UV016 7-LWT-UV030 Congratulations on purchasing your new Lancaster Water UV Disinfection System. This unit is designed to give you many years of trouble free service. For servicing and future inspection purposes, please file this booklet with your important documents.
-
Page 2: Read And Follow All Safety Instructions
PLEASE CAREFULLY READ INSTRUCTIONS BEFORE INSTALLING SYSTEM FOLLOW ALL STATE AND LOCAL CODES AND REGULATIONS FOR PLUMBING AND ELECTRICAL. INSTALLATION BY A CERTIFIED PLUMBER IS RECOMMENDED. Safety Instructions: WARNING - to guard against injury, basic safety precautions should be observed, including the following: 1. -
Page 3: Product Overview
Ensure that the following components accompany the system . To ensure system performance, all replacement components should be purchased from an authorized dealer or directly from Lancaster Water Treatment. The use of components purchased from other sources will void the warranty and could cause the system to operate at a lower performance than intended. - Page 4 DIMENSIONS: OUTLET INLET MODEL F (DIA.) INLET/OUTLET 7-LWT-UV009 17-3/8 13-3/8 1-3/8 13-9/16 3-1/2 1.0 MNPT 7-LWT-UV016 25-5/8 1-3/8 3-1/2 1.0 MNPT 21-11/16 21-13/16 7-LWT-UV030 39-3/4 35-1/16 2-1/8 35-9/16 5-1/4 3-1/2 1.5 MNPT GENERAL NOTES FOR ESTIMATING ONLY. ALL DIMENSIONS ARE IN INCHES.
-
Page 5: Specifications
Contact LANCASTER WATER TREATMENT for references. (2) Models are supplied with a 5 FT. power cordset for 120V AC 60 Hz (NEMA 5-15P plug to IEC 60320/C13 connector). -
Page 6: Water Chemistry
Water Chemistry: Water quality is extremely important for the optimum performance of your UV system. The following levels are recommended for installation: • Iron:< 0.3 ppm (0.3 mg/L) • Hardness*:< 7 gpg (120 mg/L) • Turbidity: < 1 NTU • Manganese: < 0.05 ppm (0.05 mg/L) • Tannins: <0.1ppm (0.1 mg/L) • UV Transmittance: > 75% (call factory for recommendations on applications where UVT <75%) *Where total hardness is less than 7 gpg, the UV unit should operate efficiently provided the quartz sleeve is cleaned periodically. - Page 7 1. The above picture shows the installation of a typical disinfection system and the related components that may be used for the installation. The use of a by-pass assembly is recommended in case the system requires “off-line” maintenance. If this is the case, it must be noted that the system will require supplementary disinfection of the distribution system if any water is used during this by-pass condition.
-
Page 8: Disinfection Procedure
Disinfection Procedure: UV disinfection is a physical disinfection process and does not add any potentially harmful chemicals to the water. As UV does not provide a disinfection residual, it is imperative that the entire distribution system located after the UV be chemically disinfected to ensure that the water is free from any bacteriological contaminants. - Page 9 Operating & Maintenance Instructions: Caution: Prior to performing any work on the disinfection system, always disconnect the power supply first. UV LAMP REPLACEMENT: 1. To replace the lamp, there is NO need to disconnect the system from the water supply, nor to drain the water from the UV chamber. DO NOT USE WATER DURING THIS PROCEDURE. Lamp replacement is a quick and simple procedure requiring no special tools.
- Page 10 Please note that the lamp has an approximate life of one year. Although the lamp will continue to operate long past one year, the UV output continually decreases after one year and may no longer provide adequate disinfection. Use only Lancaster Water Treatment lamps to ensure proper operation and performance. RESET LAMP LIFE TIMER AFTER LAMP REPLACEMENT -...
- Page 11 ELECTRONIC BALLAST (INCLUDES POWER CORDSET AND LAMP CORDSET) BUSHING GROUND SCREW GFCI UNDER PROTECTED BALLAST CIRCUIT LAMP 120 V CONNECTOR U-CLIP GROUND WIRE FORK TERMINAL ALUMINUM GLAND NUT UV LAMP LAMP COMPRESSION SPRING O-RING QUARTZ SLEEVE GROUND GROUND WIRE RING TERMINAL STAINLESS STEEL UV CHAMBER QUARTZ SLEEVE...
-
Page 12: Troubleshooting Guide
Troubleshooting: TROUBLESHOOTING GUIDE Symptom Possible Causes Solutions • replace filter cartridge with appropriate 5 micron cartridge Note: check source water supply as fluctuations may occur Sediment pre-filter clogged in source pressure Pressure Drop • flow regulator will result in pressure drop when Flow regulator (not provided) approaching full flow •... - Page 13 A DIVISION OF C-B TOOL CO. 1340 MANHEIM PIKE ● LANCASTER PA 17601-3196 ● TEL:717-397-3521 ● FAX: 717-392-0266 3/18 www.lancasterwatergroup.com ● E-mail: info@lancasterwatergroup.com PAGE 13...
