Summary of Contents for DIGITECH Audio AR1756

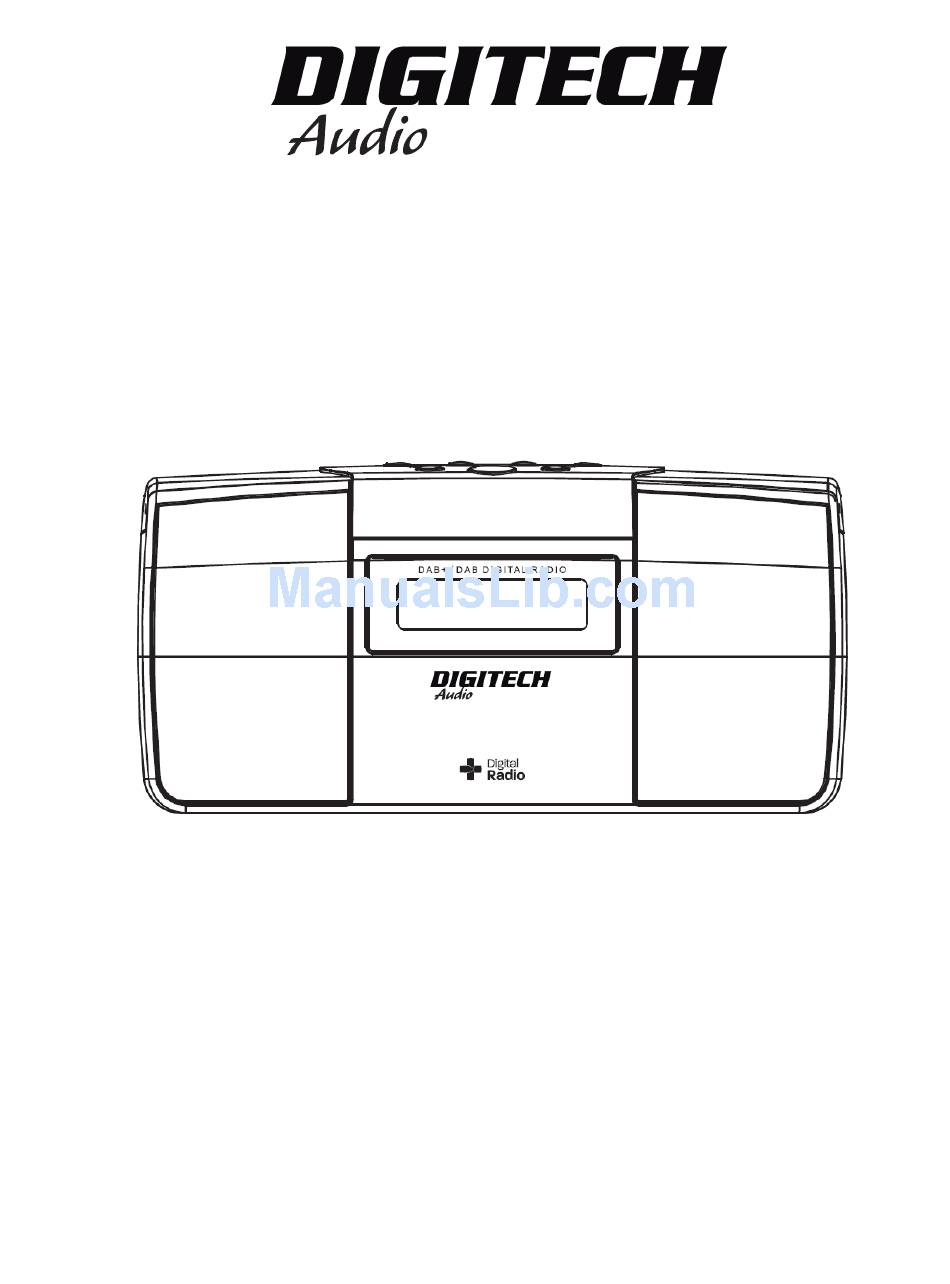

- Page 1 DIGITAL RADIO INCLUDING FM, DAB AND DAB+ INSTRUCTION MANUAL...
-
Page 2: Safety Precautions
Safety Precautions To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate the unit, this will assure you years of faithful, trouble free performance and listening pleasure. Important Notes •... -
Page 3: Safety Information
Safety Information Some Do’s And Don’ts On the Safe Use Of Equipment This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. -
Page 5: Table Of Contents
Contents Safety Precautions Safety Information Contents Package Content Controls Overview (a) ......................3 Controls Overview (b) ......................4 DAB+, DAB mode How to Get Start? ........................5 How to Show the Signal Strength? ..................5 DAB+/DAB Menu Tree ......................6 How to Update Station list? ....................6 How to Set DRC (Dynamic Range Control) Value? ............7 How to Shift the DAB Station Information? ...............8 FM Mode... -
Page 6: Package Content
Package Content Digital Radio DC Adapter Instruction manual... -
Page 7: Controls Overview (A)
Controls Overview (a) DIGITAL RADIO FRONT VIEW Battery Door DIGITAL RADIO BACK VIEW Note : For operate Software Program Jack, only limited to its original manufacturer. • Battery Operation (Batteries Not Included) Note: a. Before installing batteries, ensure that the radio is disconnected from the mains supply. Please do not mix old and new batteries. -
Page 8: Controls Overview (B)
Controls Overview (b) DIGITAL RADIO TOP VIEW Control DAB +, DAB and FM mode Press and hold to save Preset station 1-5; Press to load Preset station 5/10 MENU Press to main menu and other options INFO Display queue information DAB/FM Press to convert between DAB and FM mode Press to scroll up... -
Page 9: Dab+, Dab Mode
DAB+, DAB mode How to Get Start? 1. Extend the antenna on the rear of radio, press the STANDBY button to switch it on. 2. For initial use, it will automatically conduct a full scan and save the detected stations in its memory, perhaps it will need your little patience. -
Page 10: Dab+/Dab Menu Tree
DAB+/DAB Menu Tree How to Update Station list? 1. Press the MENU button, and then press button to ‘Full scan’. 2. Press SELECT to confirm. The radio will scan all the DAB channels and add any new stations available into the station list. -
Page 11: How To Set Drc (Dynamic Range Control) Value
How to Set DRC (Dynamic Range Control) Value? You can set the level of compression stations to eliminate the differences in dynamic range or sound level between radio stations. 1. Press the MENU button, and then press button to ‘DRC’, Press SELECT to confirm. 2. -
Page 12: How To Shift The Dab Station Information
How to Shift the DAB Station Information? To shift the information displayed by pressing the INFO button repeatedly. Dynamic Label Segment (DLS) This is scrolling text information supplied by the DAB station or by broadcaster. Program Type (PTY): This is a description of the type of program provided by the DAB station or by broadcaster. -
Page 13: Fm Mode
FM Mode How to Switch to FM Mode? 1. Switch radio on and then press the DAB/FM button if currently it isn’t in FM mode. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last FM station you were listening to will be selected. -
Page 14: How To Display Fm Station Information
How to Display FM Station Information? To change the type of displayed information by pressing the INFO button repeatedly, the display will cycle through the follow display modes. Radio text This is scrolling text information supplied by the FM station. It may comprise information on music titles or details of the program which is provided by the broadcaster. -
Page 15: Common Operation
Common Operation Setting Station Presets Your radio can store 10 DAB/DAB+ and 10 FM presets. To store the current station: 1. Press and hold either one of the preset buttons 1/6,2/7,3/8,4/9 or 5/10 button to preset station 1-5, 2. Press and hold the SNOOZE/SHIFT button until it say “Preset <6-10>”, and then press and hold relative preset buttons to preset Station 6-10, be quick, and it will display: stands for the preset station number. -
Page 16: System Setup
System setup How to Enter System Setup? 1. Press the MENU button, and then press button to < System >, press the SELECT button to confirm. 2. Press button to cycle through options, in which you can find ‘Sleep’, ‘Alarm’, ‘Time’, ‘Backlight’, ‘Factory Reset’, ‘SW version’... -
Page 17: How To Set Time
How to Set Time? • Manually set time 1. It can be activated from < System > < Time >, and then press SELECT to confirm. Note: here, press , which you can browse <Set 12/24 hour format>, <Set Time/date>, <Auto update>, and <Set date format>. -
Page 18: How To Setting Alarm
How to Setting Alarm? Note: Setting Alarm, make sure Setting Time at first. It can be active from < System > < Alarm >, press SELECT to confirm. 2. Press button to view ‘Alarm 1 Setup’ or ‘Alarm 2 Setup’, press SELECT to confirm. 3. -
Page 19: How To Set Backlight
In standby mode, the Alarm icon ( ) will be shown on screen. • To cancel Alarm temporarily When alarm come, press STANDBY to cancel it, or press SNOOZE to postpone it for 5minutes. Note: a. The alarm will be sound again after the pre-defined period of time elapsed. b. -
Page 20: How To Do Factory Reset
How to do Factory Reset? You can delete all of the preset stations and return the radio to its factory settings as following: It can be activated from < System > < Factory Reset >, press SELECT to confirm. Press button to <... -
Page 21: Specification
Specification ITEMS DESCRIPTION Specifications: DAB+, DAB，FM AC/DC Adapter: Input: 240 Vac, 50 Hz Power Requirements: Output: 9V/600mA (FM) 87.5-108MHz Frequency Range (DAB, DAB+) 174 – 240MHz Rated Output Power: 2W x 2 Speaker: 8 ohm Headphone Jack: 32 ohm Dimension: 226 x 111 x 105mm This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
