INSTALLATION, OPERATION and MAINTENANCE,
Note: The picture is illustration only. We reserved the right to make technical changes in the interest in
ORIENTAL
INSTRUCTIONS
GAS ECONOMIC RANGE
MODELS: NGER_60 SERIES
NGER_70 SERIES
NGER_130 SERIES
progress without prior notice.
Instructions Manual for Gas Economic Range
PT NAYATI INDONESIA
JI. Raya Terboyo No.19
Semarang ~ 50112
Central Java - Indonesia
Telephone : (0062) + 024 658 05 73
Telefax
: (0062) + 024 658 05 72
E-mail
: nayati@nayati.com
NAYATI
1
20141105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGER 4-60 and is the answer not in the manual?

Questions and answers

Related Manuals for NAYATI NGER 4-60

Summary of Contents for NAYATI NGER 4-60

  • Page 1: Cover

    NGER_70 SERIES NGER_130 SERIES Note: The picture is illustration only. We reserved the right to make technical changes in the interest in progress without prior notice. PT NAYATI INDONESIA JI. Raya Terboyo No.19 Semarang ~ 50112 Central Java - Indonesia...

  • Page 2: Preface

    Thank you for choosing our product as your trusted partner. We ensure you that we always give our best as we produce this appliance by using the finest materials. NAYATI Gas Economic Range is excellent choice to cook. In order to obtain maximum benefits of this appliance, please read this manual instruction carefully.

  • Page 3: Table Of Contents

    Instructions Manual for Gas Economic Range NAYATI TABLE OF CONTENT Page Cover ………........................ Preface ………......................Table of Content ……………..................General Information …………………................Safety Instructions …………………................Technical Data ………………..................• Data Tables ………………................• Overall Dimension ……………… ..............

  • Page 4: General Information

    GENERAL INFORMATION Please read this manual instruction carefully before operating this appliance. NAYATI Gas Economic Range is an excellent cooking appliance. This appliance is using gas. NAYATI Gas Economic Range designed for cooking both Western and Oriental cuisine like sautéing, shallow frying, frying, until boiling It is very important to keep this instruction book together with the appliance for future consultation.

  • Page 5: Safety Instructions

    Very important!: Before installing, place the appliance on solid, flat, stable and horizontal surface and connection availability. Read this manual instruction carefully before using NAYATI Gas Economic Range. This appliance is for food preparation only. Below are safety instructions that strictly conformed: •...
  • Page 6 Instructions Manual for Gas Economic Range NAYATI EXPLOSION RISK ! DO NOT cover the burners or drawers below or the air holes on the sidewalls with Aluminum or silver foil or similar materials. This may cause a wrong air circulation and gas combustion and lead to overheat.

  • Page 7: Technical Data

    TECHNICAL DATA NAYATI Gas Economic Range is made of stainless steel. This appliance used for cooking both Oriental and Western cuisine. With Dual function, the cooking ring can accommodate pan and wok. This appliance equipped with Safety device Thermocouple for user’s safety.
  • Page 8 Instructions Manual for Gas Economic Range NAYATI Table 2: Technical Specification for NGER 15-60 and NGER 20-60 Technical Specification Model NGER 15-60 NGER 20-60 Width Depth Height Width Depth Height Overall Dimension (mm) 1500 850 / 950 2000 850 / 950 Gas Connection R ¾”...
  • Page 9 Instructions Manual for Gas Economic Range NAYATI Table 3: Technical Specification for NGER 7-70, NGER 13-70 and NGER 20-70 Model NGER 7-70 NGER 13-70 NGER 20-70 Overall Dimension (mm) Width Depth Height Width Depth Height Width Depth Height 850 / 1150...
  • Page 10 Instructions Manual for Gas Economic Range NAYATI Table 4: Technical Specification for NGER 13-130 and NGER 20-130 Model NGER 13-130 NGER 20-130 Overall Dimension (mm) Width Depth Height Width Depth Height 1300 1300 2000 1300 Drain Gas Inlet Water Inlet...

  • Page 11: Overall Dimension

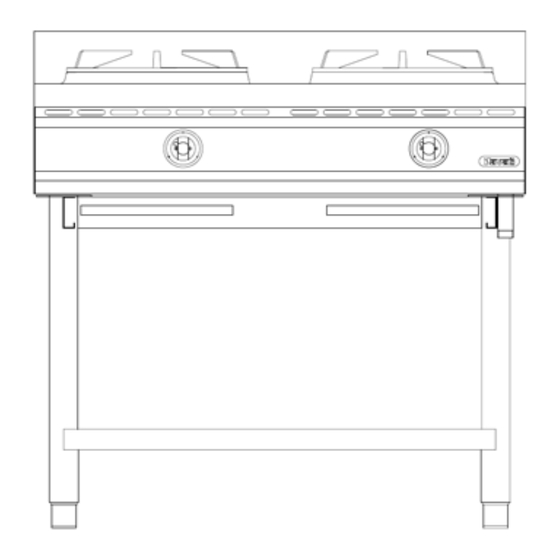

    Instructions Manual for Gas Economic Range NAYATI • Overall Dimension NGER 4-60 ORIENTAL 20141105...
  • Page 12 Instructions Manual for Gas Economic Range NAYATI NGER 9-60 ORIENTAL 20141105...
  • Page 13 Instructions Manual for Gas Economic Range NAYATI NGER 15-60 ORIENTAL 20141105...
  • Page 14 Instructions Manual for Gas Economic Range NAYATI NGER 20-60 ORIENTAL 20141105...
  • Page 15 Instructions Manual for Gas Economic Range NAYATI NGER 7-70 ORIENTAL 20141105...
  • Page 16 Instructions Manual for Gas Economic Range NAYATI NGER 13-70 ORIENTAL 20141105...
  • Page 17 Instructions Manual for Gas Economic Range NAYATI NGER 20-70 ORIENTAL 20141105...
  • Page 18 Instructions Manual for Gas Economic Range NAYATI NGER 13-130 ORIENTAL 20141105...
  • Page 19 Instructions Manual for Gas Economic Range NAYATI NGER 20-130 ORIENTAL 20141105...

  • Page 20: Technical Data Plates

    Instructions Manual for Gas Economic Range NAYATI TECHNICAL DATA PLATES Figure 1: Technical plate reports the current gas setting, nominal data of Gas Economic Range and table with gases, categories, and pressures for other CE countries. Fig. 1 ORIENTAL 20141105...
  • Page 21 Instructions Manual for Gas Economic Range NAYATI ORIENTAL 20141105...
  • Page 22 Instructions Manual for Gas Economic Range NAYATI ORIENTAL 20141105...
  • Page 23 Instructions Manual for Gas Economic Range NAYATI Figure 2: Technical Plate reports warnings in European languages and destined languages. Fig. 2 Figure 3: Technical plate reports warning and current setting on appliance packaging. Fig. 3 ORIENTAL 20141105...

  • Page 24: Component List

    Instructions Manual for Gas Economic Range NAYATI COMPONENT LIST • NGER 60 SERIES ORIENTAL 20141105...
  • Page 25 Instructions Manual for Gas Economic Range NAYATI NO PART NUMBER DESCRIPTION QTY NGER SERIE 60 4-60 9-60 15-60 20-60 GS.4023 Burner NS 9001 GS.4030 Burner Head NS 9000 GS.4357B Air Chamber Mixing Jumbo Burner GS.4358C Primary Air Adjuster Plate GS.2826 Air Chamber Pipe 1”...
  • Page 26 Instructions Manual for Gas Economic Range NAYATI • NGER 70 SERIES ORIENTAL 20141105...
  • Page 27 Instructions Manual for Gas Economic Range NAYATI NO PART NUMBER DESCRIPTION QTY NGER SERIE 70 7-70 13-70 20-70 GS.4023 Burner NS 9001 GS.4030 Burner Head NS 9000 GS.4232 Plug 3/8 x ¼ mm GS.4357B Air Chamber Mixing Jumbo Burner GS.4358C Primary Air Adjuster Plate GS.2826...
  • Page 28 Instructions Manual for Gas Economic Range NAYATI • NGER 130 SERIES ORIENTAL 20141105...
  • Page 29 Instructions Manual for Gas Economic Range NAYATI NO PART NUMBER DESCRIPTION QTY NGER SERIE 130 13-130 20-130 GS.4023 Burner NS 9001 GS.4030 Burner Head NS 9000 GS.4232 Plug 3/8 x ¼ mm GS.4357B Air Chamber Mixing Jumbo Burner GS.4358C Primary Air Adjuster Plate GS.2826...

  • Page 30: Water System Components

    Instructions Manual for Gas Economic Range NAYATI Water System Components • NGER 70 SERIES DESCRIPTION NGER NGER NGER 7-70 13-70 20-70 GS.2305C Faucet Soptap w/ Plastic Handle GS.2458A2 Water Tap Head GS.8046S Short Faucet Wall Type Assy GS.3847 Nozzle Spryer...
  • Page 31 Instructions Manual for Gas Economic Range NAYATI • NGER 130 SERIES DESCRIPTION NGER 13-130 NGER 20-130 GS.2305C Faucet Soptap w/ Plastic Handle GS.2458A2 Water Tap Head GS.3847 Nozzle Spryer ORIENTAL 20141105...

  • Page 32: Installation (For The Installer)

    Instructions Manual for Gas Economic Range NAYATI INSTALLATION (for the installer) Very important!: Before installing, place the appliance on solid, flat, stable and horizontal surface and connection availability. The following instructions are intended for authorized and qualified installer. Before doing installation, adjustment, and maintenance operations, the installer must follow local and legal regulations.

  • Page 33: Position And Fixing

    Instructions Manual for Gas Economic Range NAYATI Warning ! NEVER USE FREE FLAME TO FIND GAS LEAKS! • Position and Fixing Authorized personnel must do the installation. Install the appliance according to National Safety Standard about gas-heated standard. Place the appliance in good ventilated room with permanent ventilation ducts to guarantee sufficient exchange of air and keep the work place healthy.

  • Page 34: Gas Supply Connection

    Instructions Manual for Gas Economic Range NAYATI • Gas Supply Connection Before installing and connecting Gas Economic Range to gas supply, carefully control the fixed part of gas system, which conformed to National Building Regulation. Verify gas pipes sections to guarantee sufficient supply for all gas heated appliances.

  • Page 35: Checking Gas Pressure And Nominal Heat Input

    Instructions Manual for Gas Economic Range NAYATI • Checking Gas Pressure and Nominal Heat Input (Fig. 4) For the first installation, specialized technician must control Gas Economic Range nominal heat input, maintenance, and gas conversion. DO NOT improve Gas Economic Range performance and increase nominal heat affirmed by the manufacturer.

  • Page 36: Primary Air Adjuster

    Instructions Manual for Gas Economic Range NAYATI • Primary Air Adjuster The Primary Air is fixed and sealed by the factory according to the destined country and the gas type. The adjustment is attached on the packing and the type shield. If there is any conversion, the...

  • Page 37: Install Pipe Leg

    Instructions Manual for Gas Economic Range NAYATI • Install Pipe Legs Put 4 pipes on the under shelf Tightened with external tooth washer, flat washer and nut M8. Install (2 pcs side, 1 pc front, 1 pc back) stopper leg at the top of the pipe leg Tightened with external tooth washer, flat washer, and nut M6.

  • Page 38: Use Instructions (For User)

    Instructions Manual for Gas Economic Range NAYATI USE INSTRUCTIONS (for user) • Warning This appliance is a gas cooker for professional use. It shall be used by authorized people only. Before starting, please make sure that the appliance is in good condition and put it in a good ventilated room.

  • Page 39: Turn On / Off

    Instructions Manual for Gas Economic Range NAYATI • Turn ON / OFF Gas Economic Range Turn ON Burner a. Open the gas valve to supply gas. b. Turn and hold the knob anticlockwise until heard sound ‘click’. c. Turn the knob clockwise to adjust the flame until heard sound ‘clicks’ for several times.

  • Page 40: Routine Cleaning And Maintenance

    Instructions Manual for Gas Economic Range NAYATI ROUTINE CLEANING and MAINTENANCE Clean the appliance to keep the functionality and durability. In the case of any failures, do not attempt to solve the problem but call your dealer immediately to ask for help. Do not attempt to dismantle the appliance, specialized mechanics must do all job.
  • Page 41 ! If you find the lighting and control devices are difficult to use, please contact the manufacturer immediately, which will provide you necessary assistance or call NAYATI dealer. ! Please check the appliance periodically. Contact your dealer that will supply assistance to repair and set interval.

  • Page 42: Trouble Shooting

    Instructions Manual for Gas Economic Range NAYATI TROUBLE SHOOTING PROBLEM CAUSE CORRECTIVE ACTION Pilot flame does not ignite - Gas pipe to Pilot clogged - Check and repair - Pilot clogged - Check and repair - Pilot head clogged - Clean with fine steel brush...

  • Page 43: Warranty

    Instructions Manual for Gas Economic Range NAYATI WARRANTY NAYATI gives 12 months guarantee with certain conditions. NAYATI will decline any claims of accidents caused by improper use, disobey rules, and/ or disobey warnings. Below are cases, which invalidate the guarantee: 1.
