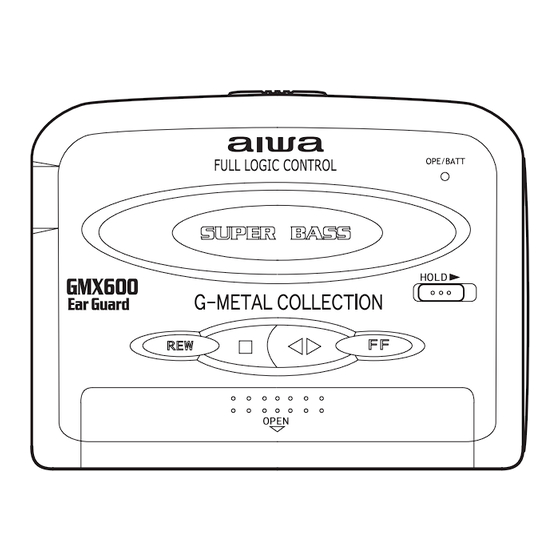

Aiwa HS-GMX600 Service Manual

Stereo cassette player basic tape mechanism : cl-850-5 sil
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
STEREO CASSETTE PLAYER
•
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-99C-425-7T1)
HS-GMX600
HS-PX107
BASIC TAPE MECHANISM : CL-850-5 SIL
S/M Code No. 09-002-425-7R1
Y
YU, Y

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-GMX600 and is the answer not in the manual?

Questions and answers

Related Manuals for Aiwa HS-GMX600

Summary of Contents for Aiwa HS-GMX600

  • Page 1 HS-GMX600 HS-PX107 YU, Y SERVICE MANUAL STEREO CASSETTE PLAYER BASIC TAPE MECHANISM : CL-850-5 SIL • This Service Manual is the "Revision Publishing" and replaces "Simple Manual" (S/M Code No. 09-99C-425-7T1) S/M Code No. 09-002-425-7R1...

  • Page 2: Specifications

    SPECIFICATIONS Maximum output: 4 mW + 4 mW (EIAJ 16 ohms)<Y> 5 mW + 5 mW (EIAJ 32 ohms)<YU> Load impedance: 16 – 32 ohms<Y> Power source: DC 3 V using two R6 (AA) dry cell batteries, AC house current using the optional AC adaptor AC-D302 Battery life(EIAJ 1 mW output): Aprox.

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST TRANSISTOR ILLUSTRATION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION S701 87-A90-665-280 C-SW,TACT LS7A2M S702 87-A90-665-280 C-SW,TACT LS7A2M 87-002-677-080 C-IC,TA2002F S703 87-A90-665-280 C-SW,TACT LS7A2M...
  • Page 4 WIRING (MAIN)

  • Page 5: Schematic Diagram

    SCHEMATIC DIAGRAM...
  • Page 6 IC BLOCK DIAGRAM IC DESCRIPTION IC, TA2002F IC, TMP47C443LDM-1B45(EL) Pin No. Pin Name Description XOUT Connected to 4MHz crystal oscillator. RESET Input reset signal. EJECT SW Input EJECT SW."H": OFF, "L": ON. BUZR Output buzzer sound. TEST Input test mode. "H": Test ON. (connected to GND) HOLD Input HOLD SW.
  • Page 7 ADJUSTMENT MAIN C.B VOLUME VR101 SFR401 J101 PHONES 1. Tape Speed Adjustment Settings : • Test tape : TTA – 100 (Tape center) • Test point : Phones Jack (J101) • Adjustment location : SFR401 • Super Bass : • Direction : •...

  • Page 8: Test Mode

    TEST MODE This model has a test mode function in the disassembled condition. Screw TP701 TEST Screw 1. How to use the test mode: • Short the test land in the MAIN C.B. • Auto-stop function is not detected by micro-computer while test mode is active. Note: Make sure that the test land is opened after the test mode is de-activated.

  • Page 9: Mechanical Exploded View

    MECHANICAL EXPLODED VIEW 1/1 MECHANICAL PARTS LIST 1/1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION 8A-HKG-013-010 LID,CASS P L-BLU EG<[LM]107Y,[LM]600Y> 8A-HKF-001-010 LID,CASS P SIL<YU> 8A-HKF-018-010 LID,CASS P SIL EG<[S]107Y,[S]600Y>...

  • Page 10: Tape Mechanism Exploded View

    TAPE MECHANISM EXPLODED VIEW 1 / 1 TAPE MECHANISM PARTS LIST 1/1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION S8-HR8-003-010 FRAME CENTER S8-505-240-000 GEAR SHAFT S8-505-070-000 REEL GEAR T...
  • Page 11 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9920594 0251431 Printed in Singapore...
