Summary of Contents for Aiwa HS-GS392
Page 1

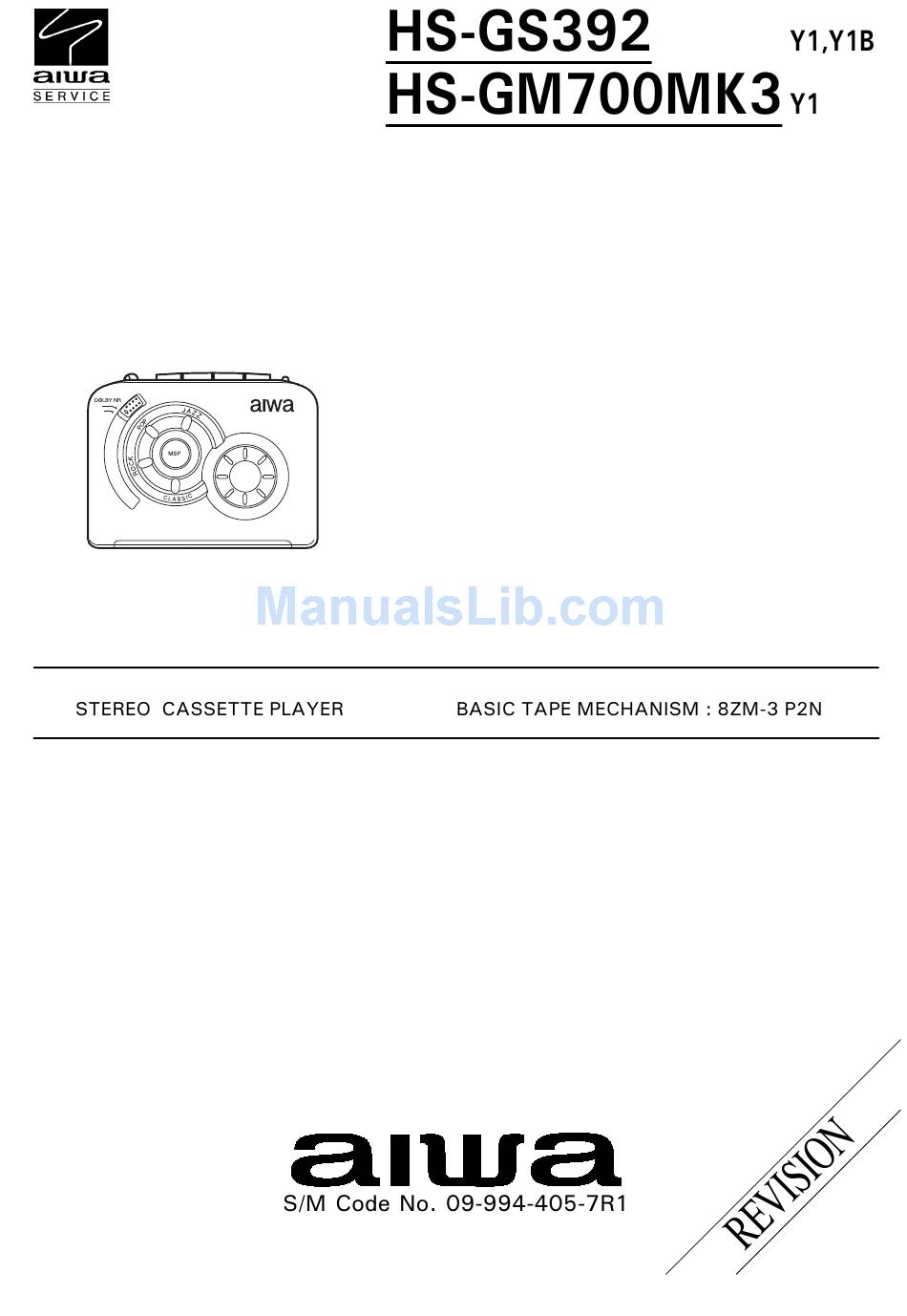

SERVICE MANUAL...
Page 3: Chip Resistor Part Code
C 3 1 2 87-016-462-080 C-CAP,S 1-16 ZF C 3 1 3 87-016-462-080 C-CAP,S 1-16 ZF 87-A20-460-040 IC,MM1336CF C 3 1 4 87-016-462-080 C-CAP,S 1-16 ZF 87-017-805-080 IC,AN7375NS(OP AMP) C 3 2 1 87-A10-952-080 C-CAP,TN 22-4 M A MCM C 3 2 2 87-010-196-080 CHIP CAPACITOR,0.1-25 TRANSISTOR...
Page 5: Schematic Diagram - 1 (Main)
SCHEMATIC DIAGRAM - 1 (MAIN)
Page 6
<TAPE SECTION> Tape speed : 3015Hz ± 60Hz Wow : Less than 0.5% (RMS) MAIN C.B Take-up torque : 24 ~ 45g-cm (FWD) F.F torque : 70 ~ 150g-cm REW torque : 70 ~ 150g-cm Back tension : 1.5 ~ 4.0g-cm (FWD) S/N ratio : More than 42dB (PB, DC) Distortion :...
Page 7: Color Name Table
8Z-HG6-007-010 LID,CASS P GRY<700Y1> 8Z-HG6-008-010 LID,CASS P GRY EG<392Y1B,392Y1> 8Z-HRB-217-010 SPR-T,CASS 8Z-HRB-207-010 SPR-P,CASS 8Z-HRB-003-010 FRAME,CENTER GRY 8Z-HRB-002-010 WINDOW,CASS 8Z-HRB-014-010 KNOB,SL OPEN 8Z-HG9-201-010 HLDR,HP JACK 8Z-HRB-209-010 BAT-CONTACT,M 8Z-HRB-005-010 LID,BAT SIL 1 0 8Z-HRB-208-010 BAT-CONTACT,P 1 1 8Z-HG9-202-010 RACK,MSP 1 2 8Z-HG9-203-010 SPR,CLIC MSP 1 3 8Z-HG6-010-010 CABI,REAR 392 SIL EG<392Y1B,392Y1>...
Page 8
8Z-HRB-003-010 FRAME,CENTER GRY 3 1 88-ZM3-267-010 SHAFT,PULLEY TWIN 8Z-HRB-207-110 SPR-P,CASS 3 2 88-ZM3-234-010 PULLEY,BELT TWIN 88-ZM3-253-110 SPR-C,BT L 3 3 88-ZM3-212-010 LEVER,LOCK 88-ZM3-274-010 GEAR,REEL A 3 4 88-ZM3-245-110 SPR-T,LOCK 8Z-HRB-014-010 KNOB,SL OPEN 3 5 88-ZM3-201-110 CHAS ASSY,OUTSERT P W-P1.16-2.8-0.4 8Z-HRB-204-110 LEVER,EJECT 3 6 88-ZM3-216-010 LEVER,SW...
Page 9
1 8Z-HG6-908-010 IB,Y(EDPHNCZ) S<Y1B,392Y1> 1 8Z-HG6-907-010 IB,Y(EGFSI) S 2 8Z-HRB-050-010 CLIP,BELT ASSY 3 87-B30-255-010 HEADPHONE,HP-M007B(S)
