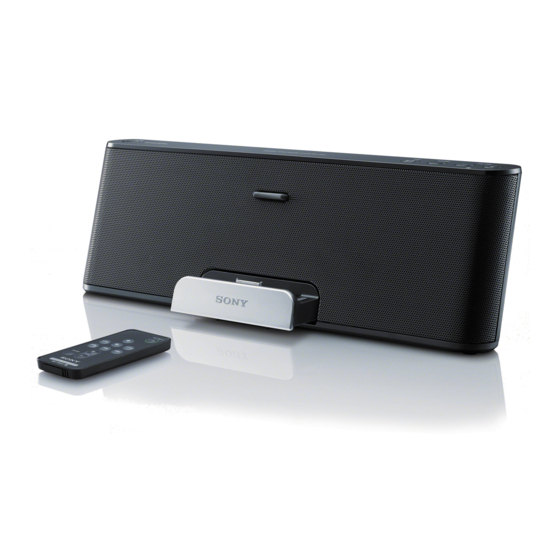

Sony RDP-T50iP Operating Instructions

Personal audio.
Hide thumbs


Advertisement

Personal Audio
Docking System
©2012 Sony Corporation
Printed in China
RDP-T50iP
been designed to connect specifically to iPod,
WARNING
iPhone or iPad, respectively, and has been
certified by the developer to meet Apple
performance standards. Apple is not responsible
To reduce the risk of fire or electric
for the operation of this device or its compliance
shock, do not expose this apparatus to
with safety and regulatory standards. Please note
rain or moisture.
that the use of this accessory with iPod, iPhone or
iPad may affect wireless performance.
To reduce the risk of fire, do not cover the
ventilation of the apparatus with newspapers,
tablecloths, curtains, etc. And do not place lighted
Precautions
candles on the apparatus.
To reduce the risk of fire or electric shock, do not
 To disconnect AC power, grasp the plug itself,
expose this apparatus to dripping or splashing,
not the cord.
 Since a strong magnet is used for the speaker,
and do not place objects filled with liquids, such
as vases, on the apparatus.
keep credit cards using magnetic coding or
spring-wound watches, CRT-based TVs, or
Do not install the appliance in a confined space,
projectors, etc., away from the unit to prevent
such as a bookcase or built-in cabinet.
possible damage from the magnet.
Do not expose the batteries (battery pack or
 Do not leave the unit in a location near a heat
batteries installed) to excessive heat such as
source such as a radiator or airduct, or in a
sunshine, fire or the like for a long time.
place subject to direct sunlight, excessive dust,
mechanical vibration, or shock.
As the main plug of AC adaptor is used to
 Allow adequate air circulation to prevent
disconnect the AC adaptor from the mains,
internal heat build-up. Do not place the unit on
connect it to an easily accessible AC outlet.
a surface (a rug, a blanket, etc.) or near
Should you notice an abnormality in it,
materials (a curtain) which might block the
disconnect it from the AC outlet immediately.
ventilation holes.
The unit is not disconnected from the AC power
 Should any solid object or liquid fall into the
source (mains) as long as it is connected to the
unit, unplug the unit and have it checked by
wall outlet, even if the unit itself has been turned
qualified personnel before operating it any
off.
further.
 During a thunderstorm, do not touch the
The nameplate and important information
antenna (aerial) and plug.
concerning safety are located on the bottom
 Do not touch the unit with wet hands.
exterior of the main unit and on the surface of the
 Do not place the unit anywhere near water.
AC adaptor.
NOTES ON LITHIUM BATTERY
You are cautioned that any changes or
 Wipe the battery with a dry cloth to assure a
modifications not expressly approved in this
good contact.
manual could void your authority to operate this
 Be sure to observe the correct polarity when
equipment.
installing the battery.
 Do not hold the battery with metallic tweezers,
CAUTION
otherwise a short-circuit may occur.
Danger of explosion if battery is incorrectly
Note
replaced. Replace only with the same type.
 In the Operating Instructions, "iPod" is used as
On copyrights
a general reference to functions on an iPod,
iPad, iPhone, iPod, iPod classic, iPod nano, and iPod
iPhone or iPad, unless otherwise specified by
touch are trademarks of Apple Inc., registered in the
the text or illustrations.
U.S. and other countries.
If you have any questions or problems concerning
"Made for iPod, " "Made for iPhone, " and "Made
your unit, please consult your nearest Sony dealer.
for iPad" mean that an electronic accessory has
4-437-622-31(1)

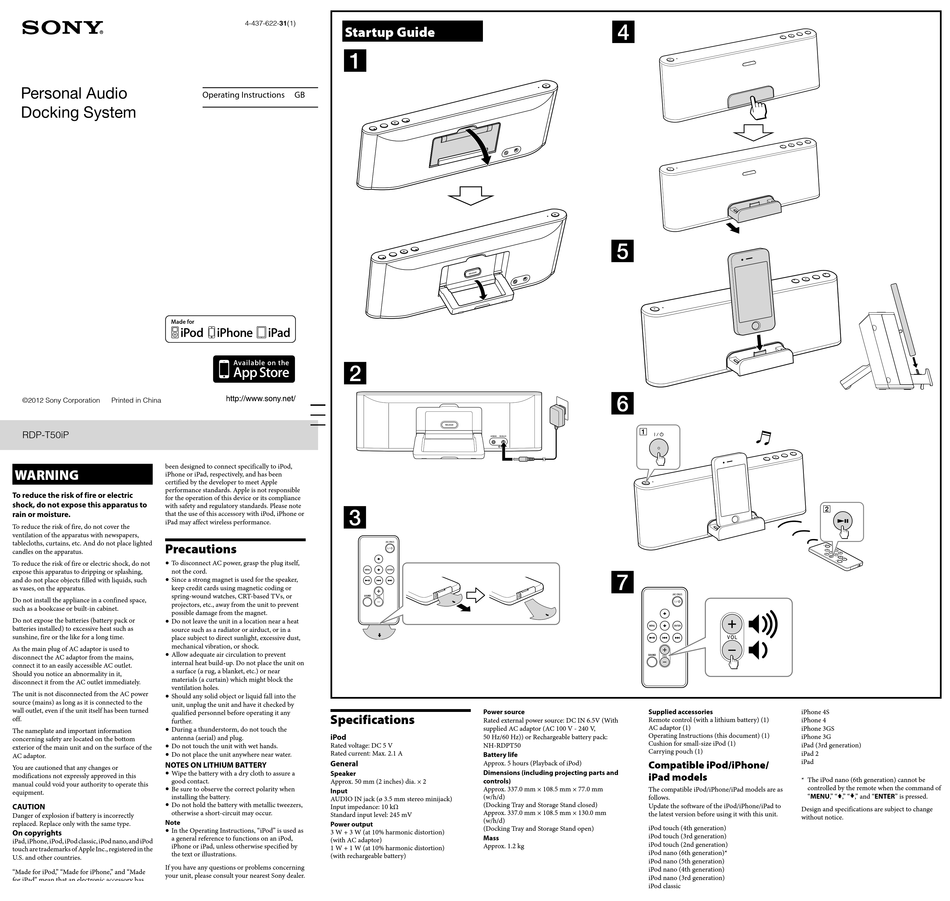

Startup Guide
Operating Instructions
GB

Specifications

iPod
Rated voltage: DC 5 V
Rated current: Max. 2.1 A
General
Speaker
Approx. 50 mm (2 inches) dia. × 2
Input
AUDIO IN jack (ø 3.5 mm stereo minijack)
Input impedance: 10 kΩ
Standard input level: 245 mV
Power output
3 W + 3 W (at 10% harmonic distortion)
(with AC adaptor)
1 W + 1 W (at 10% harmonic distortion)
(with rechargeable battery)
Power source
Supplied accessories
Remote control (with a lithium battery) (1)
Rated external power source: DC IN 6.5V (With
AC adaptor (1)
supplied AC adaptor (AC 100 V - 240 V,
Operating Instructions (this document) (1)
50 Hz/60 Hz)) or Rechargeable battery pack:
Cushion for small-size iPod (1)
NH-RDPT50
Carrying pouch (1)
Battery life
Approx. 5 hours (Playback of iPod)
Compatible iPod/iPhone/
Dimensions (including projecting parts and
iPad models
controls)
Approx. 337.0 mm × 108.5 mm × 77.0 mm
The compatible iPod/iPhone/iPad models are as
(w/h/d)
follows.
(Docking Tray and Storage Stand closed)
Update the software of the iPod/iPhone/iPad to
Approx. 337.0 mm × 108.5 mm × 130.0 mm
the latest version before using it with this unit.
(w/h/d)
(Docking Tray and Storage Stand open)
iPod touch (4th generation)
iPod touch (3rd generation)
Mass
iPod touch (2nd generation)
Approx. 1.2 kg
iPod nano (6th generation)*
iPod nano (5th generation)
iPod nano (4th generation)
iPod nano (3rd generation)
iPod classic
iPhone 4S
iPhone 4
iPhone 3GS
iPhone 3G
iPad (3rd generation)
iPad 2
iPad
* The iPod nano (6th generation) cannot be
controlled by the remote when the command of
"MENU, " ", " ", " and "ENTER" is pressed.
Design and specifications are subject to change
without notice.
