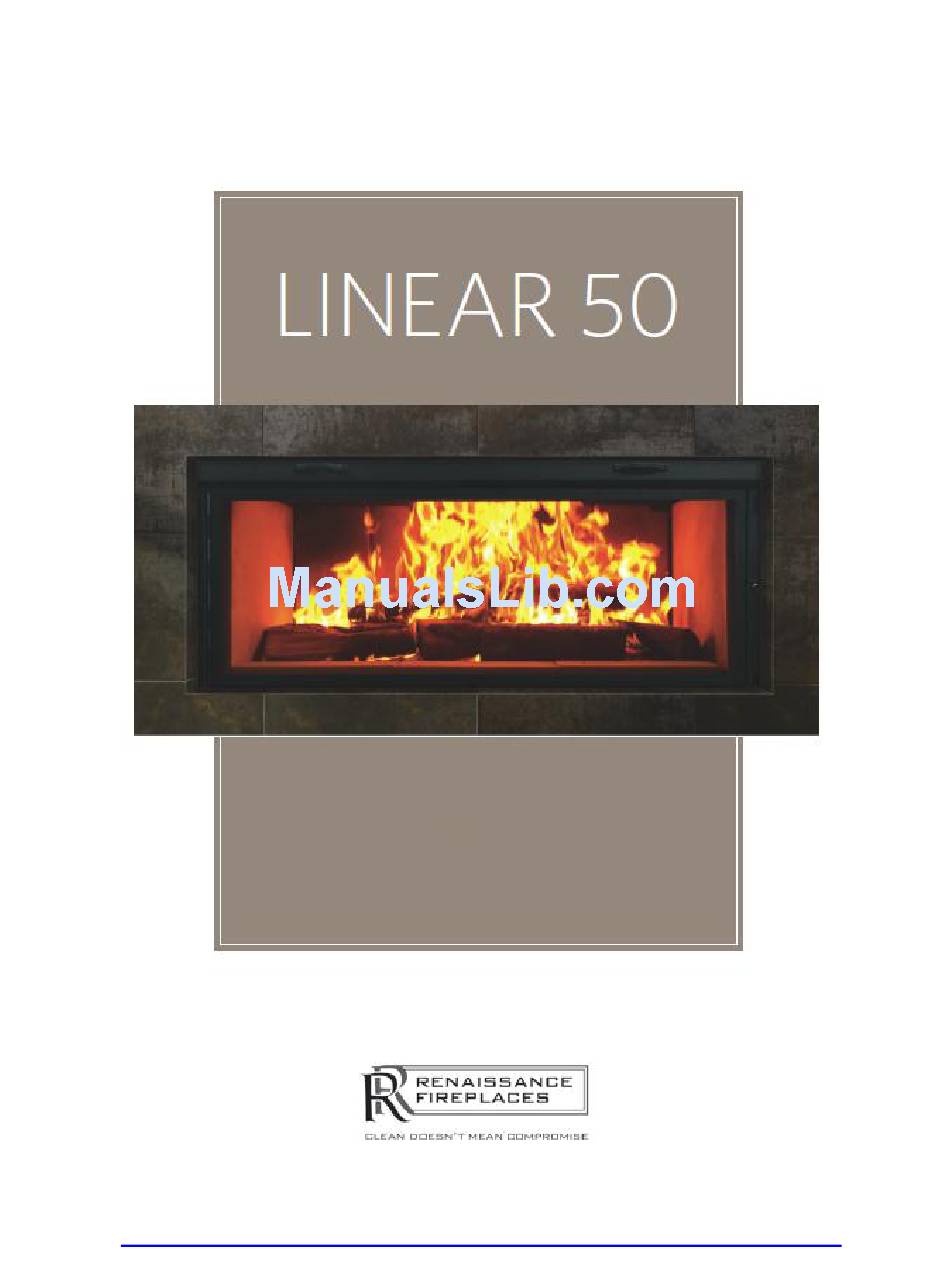

- Page 1 Architectural Handbook THIS BOOKLET IS NOT TO BE USED AS THE INSTALLATION MANUAL IT IS MERELY A GUIDE TO ASSIST WITH THE DESIGN PROCESS The Product Installation Manual can be downloaded in its entirety at www.renaissancefireplaces.com/en/installation-manuals...
-
Page 2: Table Of Contents
The LINEAR 50 is unique in its design. The 50" wide opening provides an enormous linear space to watch the fire. It combines technology with elegance, allowing you to enjoy an open fire in a modern fashion. -
Page 3: Dimensions And Clearances
DIMENSIONS AND CLEARANCES IMENSIONS The fireplace bottom standoff and bottom casing are mandatory for all installations. They MUST be installed regardless of whether the fireplace is installed on combustible or non-combustible flooring or platforms. Figure 1 Fireplace Dimensions Page 3 FOR REFERENCE ONLY! REFER TO MANUAL PRIOR TO INSTALLATION... -
Page 4: Clearances
LEARANCES Figure 2 Fireplace Clearances HRS Air Intake HRS Heat Outlet Figure 3 HRS (Heat Redistribution System) Page 4 FOR REFERENCE ONLY! REFER TO MANUAL PRIOR TO INSTALLATION... - Page 5 Table 1 Unit Clearances and Specifications (Figure 2) Distance to combustible material from side and back 0" (0.0 mm) standoffs Framing header on top standoffs or Top standoff requirement above, if used, must be steel. Minimum distance from side wall to the side of the 24"...
-
Page 6: Planning Installation
LOOR EQUIREMENTS Before installing the LINEAR 50, make sure the floor surface and floor structure are level and can sustain the weight of the complete fireplace and whatever finishing material you will use to cover the facing of your fireplace. - Page 7 YSTEM LANNING The HRS is mandatory for all Linear 50 installations. The HRS is composed of ducts that circulate air from the home through the fireplace in order to redistribute heat and to maintain a safe temperature around the fireplace.
-
Page 8: Finishing
The non-combustible flooring material must have the same minimum dimensions as the hearth extension (see (D-E)). If the LINEAR 50 is installed on a non-combustible floor, none of the protection above is needed. AISED... - Page 9 Regular Hearth Extension Raised Hearth Extension Raised Fireplace Hearth Extension Figure 5 Hearth Extension Examples Page 9 FOR REFERENCE ONLY! REFER TO MANUAL PRIOR TO INSTALLATION...
- Page 10 RL50 - 2015-11...
