Installation
Connecting Auxiliary Contacts
If desired, there are Auxiliary Contacts on the transfer
switch to operate customer accessories, remote advisory
lights, or remote annunciator devices. A suitable power
source must be connected to the common terminal (D).
See
Figure
3-1.
Contact operation is shown in the following chart:
Common to Normally Open
Common to Normally Closed
NOTE: Auxiliary Contacts are rated 10 amps at 125 or
250 volts AC.
CAUTION
Equipment damage. Exceeding rated voltage
and current will damage the auxiliary contacts.
Verify that voltage and current are within specification
before energizing this equipment.
8
Switch Position
Utility
Standby
Open
Closed
Closed
Open
(000134a)
A
C

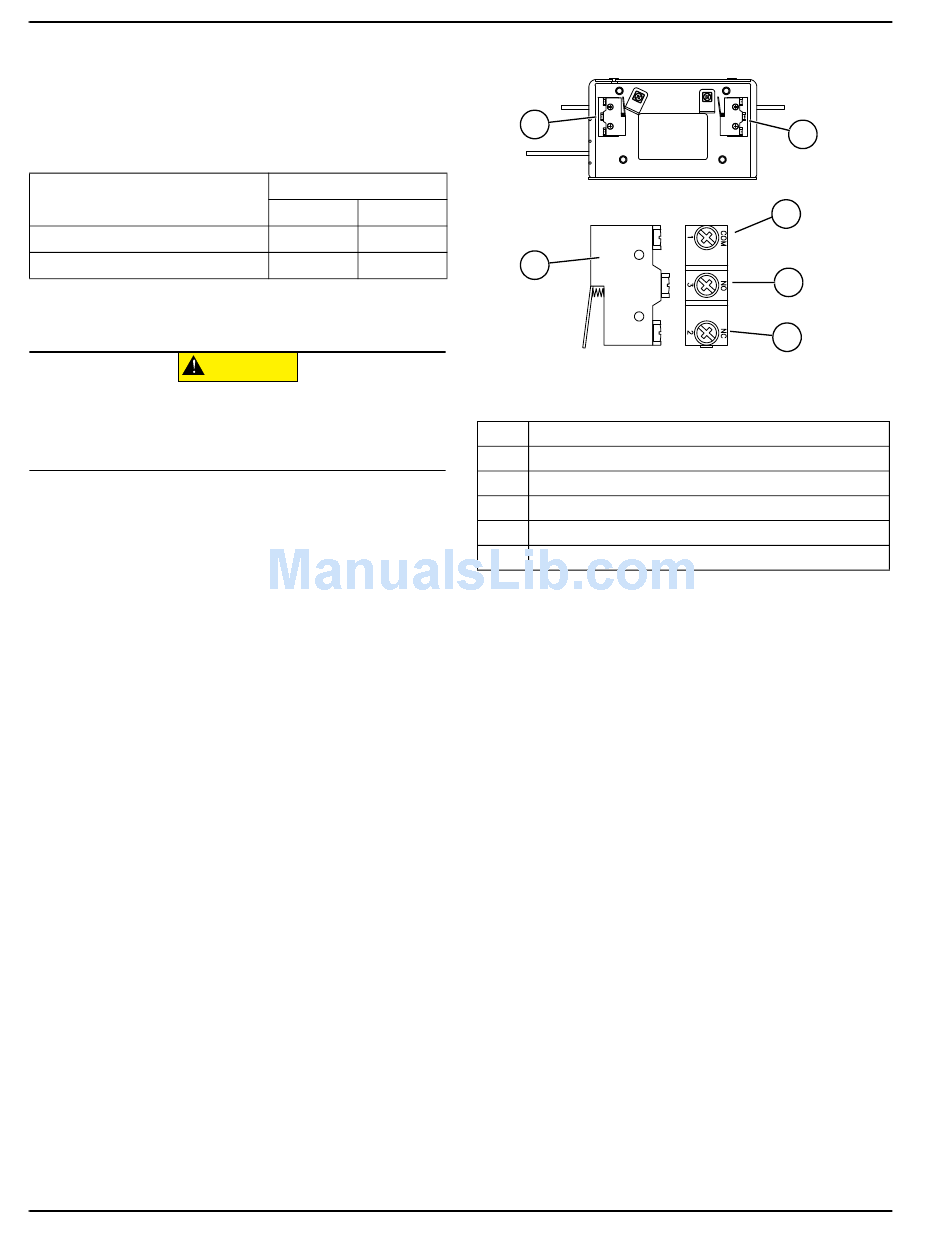

Figure 3-1. Auxiliary Contacts
A
Auxiliary Contact (Actuated)
B
Auxiliary Contact (Non-Actuated)
C
Single Contact (Utility Position)
D
Common Terminal
E
Normally Open Terminal
F
Normally Closed Terminal
Automatic Transfer Switch Owner's Manual
B
D
E
F
000140
