IP Power 1U : all four series apply same main device.

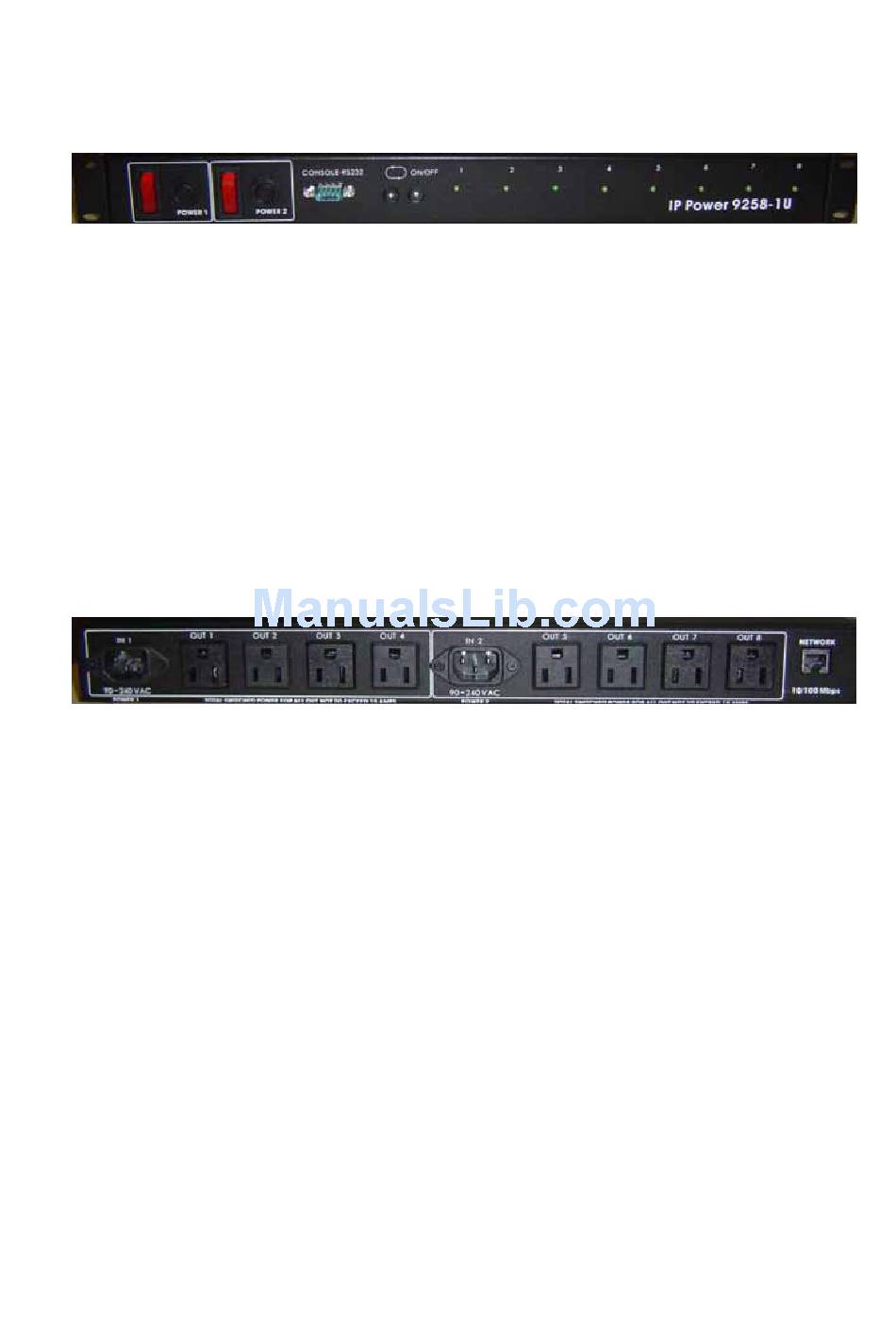

* Front panel show as below:
From left to the right:
1. Power 1: Power switch (RED) for outlet 1- 4 switch ON /OFF and Self-protect AC reset button to cut off the
power supply of outlets automatically if there is a shortcut or current overload. After user having
solved the problem, push the reset button, the AC power supply will become normal.
2. Power 2: Power switch (RED) for outlet 5- 8 switch ON /OFF and Self-protect AC reset button to cut off the
power supply of outlets automatically if there is a shortcut or current overload. After user having
solved the problem, push the reset button, the AC power supply will become normal.
3. RS232 port: Detect each output state and get IP address to re-update if update fails.
4. On & Off: Hardware power ON /OFF setup. Please do refer page 12 for detail operation
5. LED: 8 LED indicator lights (Outlet 1- 8). If the LED is on, means the corresponding outlet is power on.
* Rear panel shown as below:
From left to the right:
1. 90-240VAC power input port
2. OUT 1- 4: 4 individually switched AC outlets
3. 90-240VAC power input port
4. OUT 5- 5: 4 individually switched AC outlets
5. RJ45 Ethernet port: Link to the net wire.
