Summary of Contents for Quackenbush 15QD

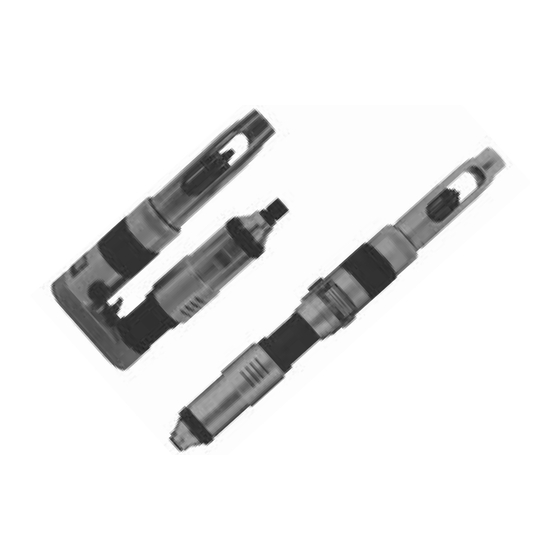

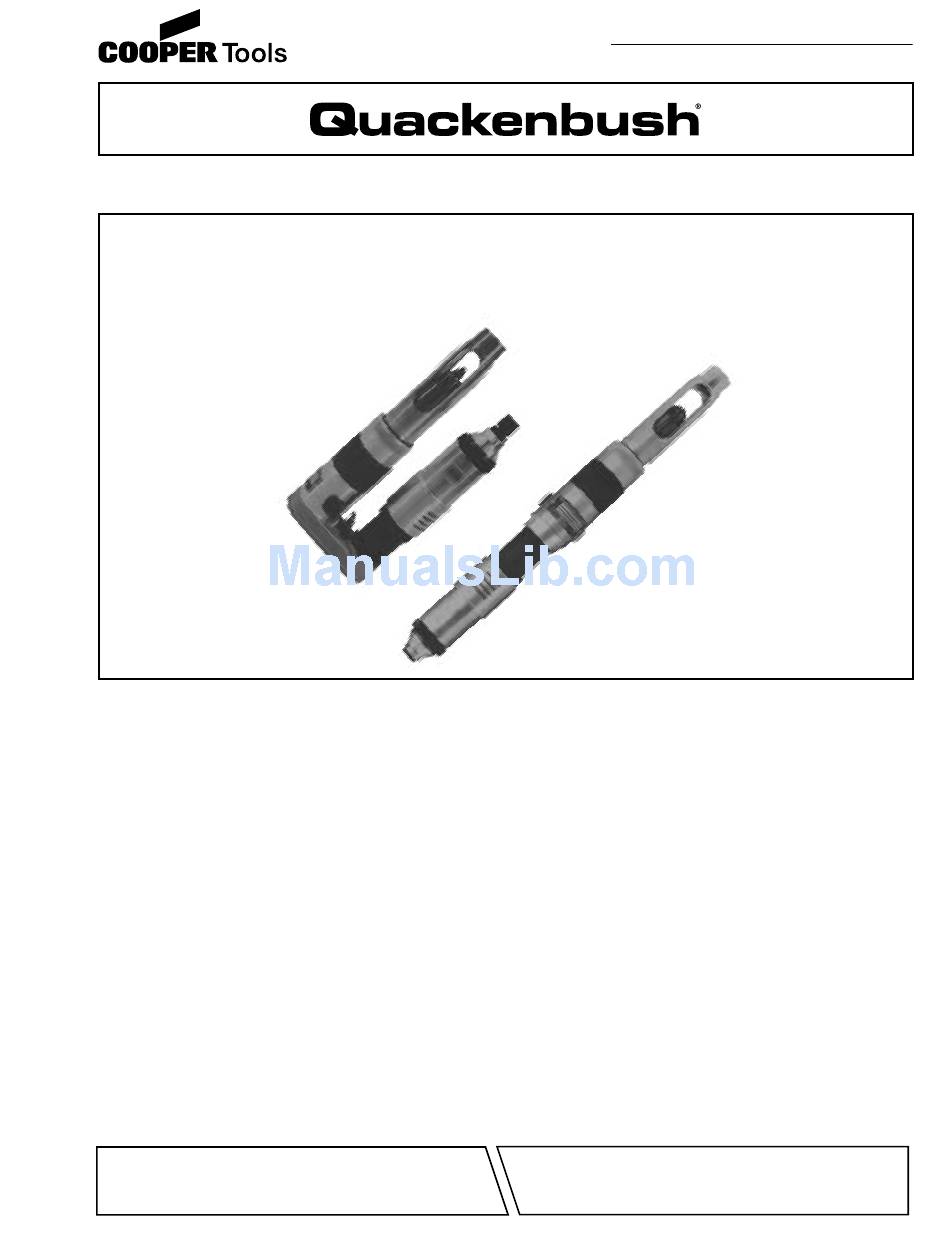

- Page 1 Operation & Service Manual 823158 2/01 15QD & 15QDB - S125 POSITIVE FEED DRILLS Houston Operation Recoules Operation 7007 Pinemont Zone industrielle - B.P. 28 Houston, TX 77040 Avenue Maurice Chevalier 77831 Ozoir-la-Ferriere Cedex France...
- Page 2 Quackenbush drills are de- Some non-ferrus metal chips (or dusts) are signed to operate on 90psig (6.2 CAUTION Do not wear loose fitting clothes, combustible.
- Page 3 Safety Recommendations Quackenbush drills Any tool operator should be aware of the following warning signs CAUTION are often used with and symptoms so that a problem can be addressed before it lubricant or cooling becomes a debilitating injury. Any user suffering from prolonged Slip and fall hazard.
-
Page 4: Operating Instructions
In the event that it becomes necessary to store the tool for an extended period of time (overnight, weekend, etc.), it should re- The 15QD & 15QDB-S125 Positive Feed Drill is designed to ceive a generous amount of lubrication at that time and again operate on 90 psi air pressure using a 5/16'' hose up to 10' in when returned to service. - Page 5 adaptor, No. 613550 (left hand threads). Unscrew the spindle nut, REASSEMBLY No. 613073, and rest the rear face of the adaptor on the vise jaws and tap the third reduction spider, No. 613553, out of the spider The tool is reassembled in the reverse order of disassembly. All bearing, No.
- Page 7 NAME OF PART QTY . 612928 Bearing Retainer Ring 612975 Grip Ring 612976 Idler Gear Bearing 613312 Grease Fitting 619122 15QD Drive Shaft 619145 Motor Adapter 619156 Worm Pin 619157 Worm Retainer Ring 619212 Gear Housing Cover 619213 Gear Housing...
- Page 8 PARTS LIST #15 DRILL HEAD NAME OF PART PART NO. QTY . 615985 Extension Spindle 617081 617408 Spacer Snap Ring 617409 619016 Snap Ring Shaft Housing 619115 619117 Gear Body Plug 619118 Pinion and Shaft 619119 Plug 619120 Lead Screw - See Feed Chart 619121 Spur Gear Spacer 619123...
- Page 9 #15 DRILL HEAD...
- Page 10 #15 POWER UNITS...
- Page 11 PARTS LIST — #15 POWER UNITS QUANITY PART NAME OF PART 1000 1400 2000 3000 611534 Gear Case 612983 Exhaust Screen 613058 Throttle Valve Spring 613059 Throttle Ring Retainer 613060 Throttle Valve Cap 613063 Throttle Pin Bushing 613066 Air Inlet Screen 613073 Spindle End Nut (Not Shown) 613226...
- Page 12 CooperTools 7007 Pinemont Houston, Texas 77040 Phone: (713) 462-4521 Fax: (713) 460-7008 www.cooperindustries.com...
