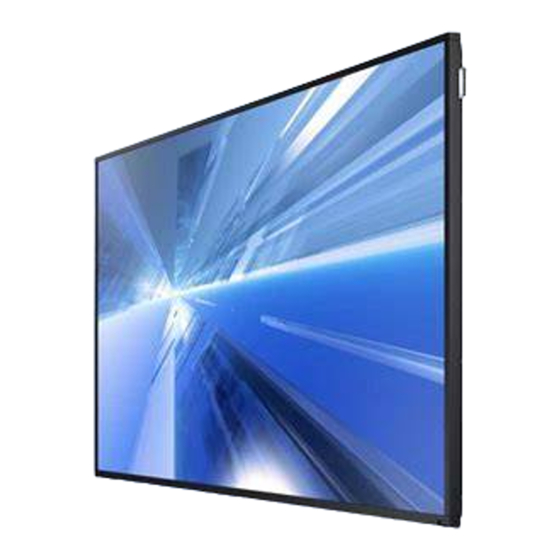

Samsung DM40E Quick Setup Manual

Hide thumbs Also See for DM40E:

Advertisement

Quick Links

Quick Setup Guide

DM40E DM48E DM55E
DH40E DH48E DH55E
- The colour and the appearance may differ depending on the product, and the specifications
are subject to change without prior notice to improve the performance.
- Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.

Checking the Components

Contact the vendor where you purchased the product if any
components are missing.
Warranty card
Quick Setup Guide
Regulatory guide
(Not available in some locations)
MagicInfo Software
Batteries
Power cord
DVD
(Not available in some locations)
Remote Control
D-SUB cable
RS232C(IN) adapter
AV/Component
AUDIO adapter
COVER-JACK
adapter
Screw (M3L8, 1EA)
(M4L8, 4EA)
BN68-07243J-00

Control Panel

Speaker
Power on the product.
1
If you press the
button when the product is turned on, the control
menu will be displayed.
Move to the upper or lower menu. You can also adjust the value of an option.
2
Move to the left or right menu.
3
Remote sensor
4
Press a button on the remote control pointing at the sensor on the
front of the product to perform the corresponding function.
Reverse Side
1
2
3
4
5
6
RGB IN
DP OUT
HDMI IN 2
0
!
1
Connects to MDC using an RS232C adapter.
- For details on how to use the MDC programme, refer to Help after
installing the programme.
The MDC programme is available on the website.
2
Supplies power to the external sensor board or receives the light
sensor signal.
3
Receives sound from a PC via an audio cable.
Connects to the audio of a source device.
4
Connect to an SD memory card.
5
Connect to a USB memory device.
6
DVI: Connects to a source device using a DVI cable or HDMI-DVI cable.
7
MAGICINFO IN: Use the (dedicated) DP-DVI cable when connecting a
network box (sold separately).

Troubleshooting Guide

Issues
Solutions
The screen keeps
Check the cable connection between the
switching on and off.
product and PC, and ensure the connection is
secure.
No Signal is displayed
Check that the product is connected correctly
on the screen.
with a cable.
Check that the device connected to the
product is powered on.
Not Optimum Mode
This message is displayed when a signal
is displayed.
from the graphics card exceeds the product's
maximum resolution and frequency.
Refer to the Standard Signal Mode Table and
set the maximum resolution and frequency
according to the product specifications.
The images on the
Check the cable connection to the product.
screen look distorted.
The screen is not clear.
Adjust Coarse and Fine.
The screen is blurry.
Remove any accessories (video extension
cable, etc) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears
Check that the resolution and frequency of the
unstable and shaky.
PC and graphics card are set within a range
compatible with the product. Then, change the
There are shadows or
screen settings if required by referring to the
ghost images left on the
Additional Information on the product menu
screen.
and the Standard Signal Mode Table.
7
8
9
IR
RJ45
COMPONENT IN
OUT
@
#
$
%
8
Connects to a PC using a DP cable.
9
Connects to a source device using an HDMI cable.
0
Connects to a source device using a D-SUB cable.
!
Connects to another product using a DP cable.
- To use old and new models together, first contact the dealer the
product was purchased from to check if they are compatible.
@
Connects to a source device using an HDMI cable.
- The DH40E, DH48E and DH55E models do not support the
HDMI IN 2 port.
Connects to a source device using the AV/Component adapter.
#
Receives the remote control signal via the external sensor board and
$
outputs the signal via LOOP OUT.
Connects to MDC using a LAN cable.
%
Issues
Solutions
The screen is too bright.
Adjust Brightness and Contrast.
The screen is too dark.
Screen colour is
Go to Picture and adjust the Colour Space
inconsistent.
settings.
White does not really
Go to Picture and adjust the White
look white.
Balance settings.
There is no sound.
Check the connection of the audio cable or
adjust the volume.
Check the volume.
The volume is too low.
Adjust the volume.
If the volume is still low after turning it up to
the maximum level, adjust the volume on
your PC sound card or software programme.
The remote control does
Make sure that the batteries are correctly in
not work.
place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is connected.
Check for any special lighting or neon signs
switched on in the vicinity.
