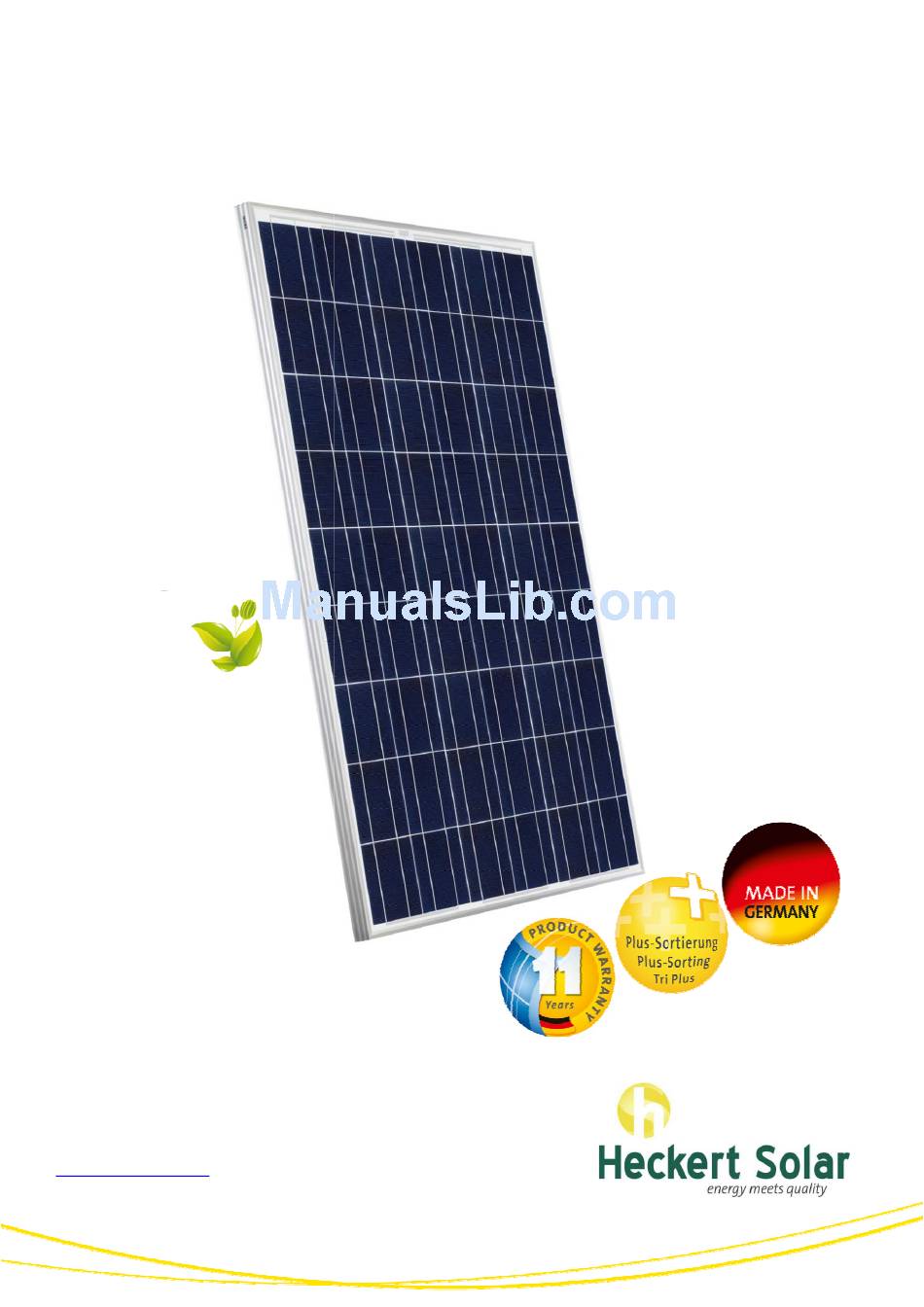

- Page 1 Installation and Operating Instructions Installation and Operating Instructions Manufactured with sustainable energy www.heckert-solar.com 03.12.2014...
- Page 2 (PV) systems consisting of high-performance, polycrystalline or monocrystalline solar modules from the range supplied by Heckert Solar GmbH. They are designed to ensure that the PV system concerned delivers optimum performance throughout its working life. All Heckert Solar-brand modules are manufactured in Germany, and are among the highest- quality PV units of their type to be found anywhere in the world.
- Page 3 Exercise great care when carrying out work of any kind on the power inverter and/or its wiring system. Heckert Solar-brand modules are designed for employment as Class A applications: Systems with dangerous output (> 240W), designed for generally unrestricted access, with the presence of hazardous voltages (IEC 61730: > 50V DC;...
- Page 4 3. Delivery and handling of modules Check the delivery on arrival to ensure that all items are complete and undamaged. Heckert Solar will only recognise transit damage if it has been recorded on the driver’s delivery note and reported immediately in writing. Our modules are normally delivered in an upright position on a non-returnable pallet, so that one person can remove the individual units without risk of back injury.
- Page 5 Certification, Performance data Heckert Solar GmbH is one of the few suppliers in the sector that still produces absolutely all of its own-brand modules in Germany, placing great value on the certification of its product quality. For details of the performance specifications of our modules please refer to the data sheets of the corresponding series.
- Page 6 Please consult with Heckert Solar before considering any other type of installation. The modules must not be subject to strain of any kind during or after fitting. They are not designed to act as rigid connecting or reinforcing elements.
- Page 7 Module load capacity ® Heckert Solar’s standard modules are certified by TÜV Rhineland to handle loads of up to 5400 Pa. SOLRIF -type and ® frameless solar modules have been tested at loads of up to 2400 Pa. The load capacity of the SOLRIF...
-
Page 8: Pin Connector
Pin connector (+) Pin connector (-) Sleeve connector Sleeve connector (-) Fig. 5: Connection box and cable • Modules can be connected to each other using this cable. The use of a single cable prevents a situation where plug- in connections are constantly exposed to water. •... - Page 9 Wiring layout Each string requires two cables for connecting the solar generator to the power inverter. We recommend the use of special solar cable conforming to standard IEC 60228, Class 5 for this purpose. It should have a minimum cross-section of 4 mm². Cable losses should be <1%.
- Page 10 7. Return and recycling Heckert Solar GmbH u ndertakes t o a ccept t he r eturn, free of charge, of modules produced by the company, when they reach the end of their service life. For details of returns for other reasons, please refer to the document entitled “Return_Recycling.pdf”, which can be found on our website at www.heckert-solar.com.
- Page 11 Technology Department will be pleased to deal with any further queries that you might have, on plications Technology Department will be pleased to deal with any further queries that you might have, on +49(0)371/458568-0. Appendix: Installation instructions Tyco Heckert Solar GmbH • Carl-von-Bach-Strasse 11 • D Strasse 11 • D-09116 Chemnitz • Germany...
- Page 13 3. Assembly Steps Using appropriate wire stripping tool, strip the wire 9mm + 1mm without damaging the strands. Insert stripped wire into the terminal wire crimp barrel until it stops. While holding the wire in place, squeeze the crimp tool handles together until the ratchet releasses.
