Summary of Contents for Heckert Solar NeMo 3.0

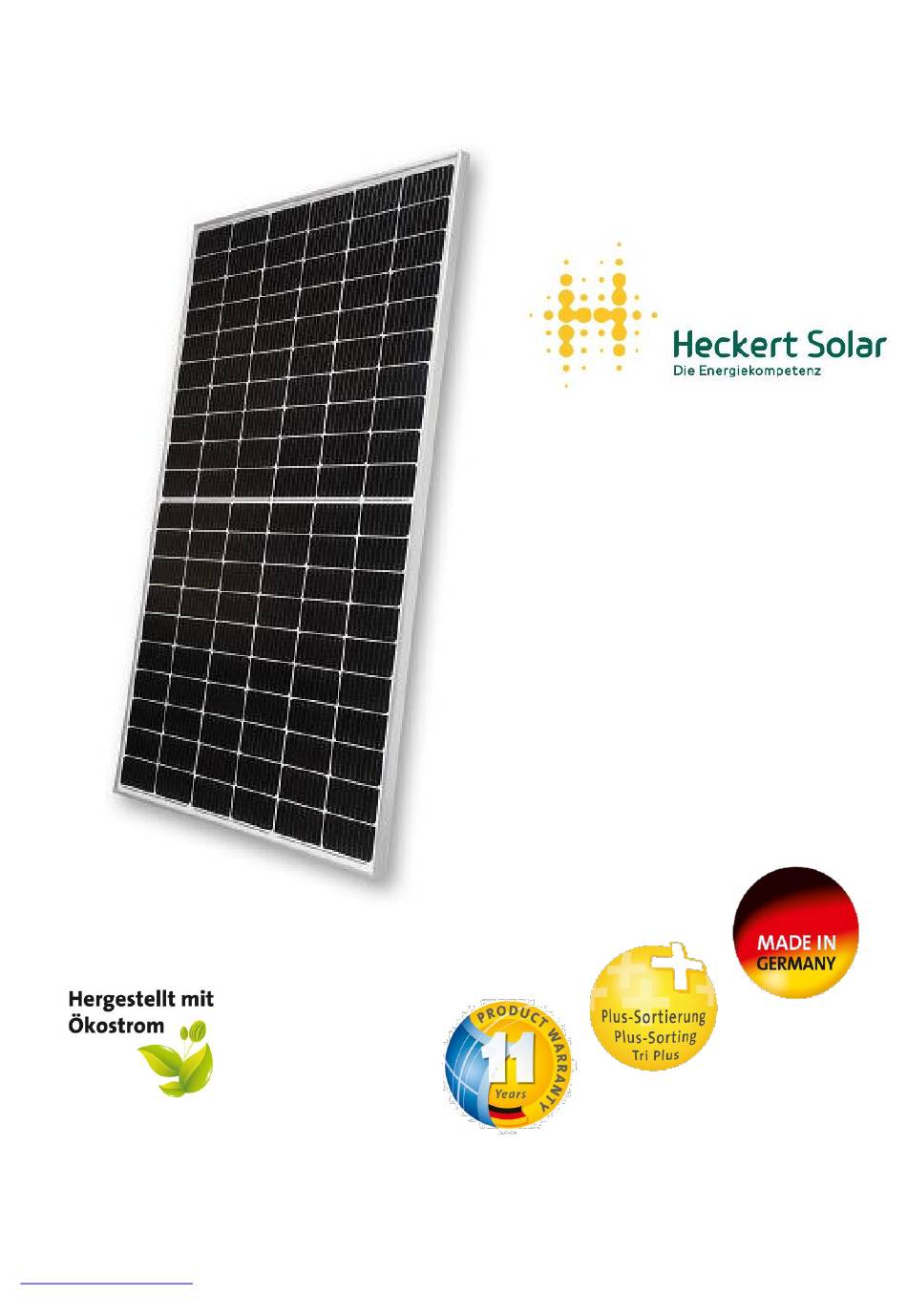

- Page 1 Installation and operating manual www.heckert-solar.com Status 08/2021...
- Page 2 This installation manual should form part of the plant documentation, and should be available to the plant operator at any given time. Heckert Solar reserves the right to amend the present document at any time without prior notice. Please use the most current copy. You can find this on our homepage under http://www.heckertsolar.com/de/downloads/partner-download-center/montage.html.
-
Page 3: Rear Ventilation
A deadly electric arc can result when opening a closed section (e.g. when separating the DC cable from the inverter under load): Never separate the solar generator from the invertor if the latter is connected to the grid! Work on the roof Please observe the applicable accident prevention regulations. -
Page 4: Standard Packaging
3. Delivery & handling of the modules The goods must be checked immediately upon delivery to ensure completeness and integrity. Only damages which are noted on the driver’s delivery receipt and are immediately communicated in written form to Heckert Solar can be recognised as transport damages. - Page 5 Figure 2: Picking packaging: Pallet with 19 modules or fewer Exercise caution when working with the modules! Carry the modules with both hands. Do not use the connection sockets or cables(s) as a handle. During the transport and installation, take care that no pressure or tension is exerted on connection sockets and cables. ...
- Page 6 (Tested with Heckert Solar rails and a support spacing of max. 1m) Ensure that the maximum mechanical load is not exceeded, in particular while also taking into account the site- dependent loads, e.g.
- Page 7 6. Connecting the modules The Heckert Solar solar modules are equipped with Original MC4 connectors (Stäubli – MultiContact) Only connectors in accordance with DIN EN 62852 (VDE 0126-300) may be used. In addition, only connectors from the same manufacturer may be plugged together.
- Page 8 Please note that it is imperative to avoid tensile force on the connection cables. Please note that only the manufacturer’s connectors may be connected. Even “compatible” connectors can loosen the connection and cause an electric arc. This is especially important to consider when using power optimizers! Any change in the connector socket can lead to the warranty being rendered null and void, and therefore may only be carried out by trained and skilled personnel.
- Page 9 The connectors comply with IEC 62852. Please be sure to observe the requirements set out in DIN VDE 0298-3 for cable routing, in particular the smallest permissible bending radii (Figure 6; R>5 x cable Ø) and the guidelines for cable fastening and routing. Figure 6: Bending radii ...
-
Page 10: Electrical Installation
The installation of on-roof systems can affect the fire safety of a building; improper installations can result in a hazard in case of fire. Please observe LBO Building Law requirements. In the event of on-roof systems, the Heckert Solar brand modules must be installed above a fire-resistant surface (“hard roofing” in accordance with DIN 4102-4). The... - Page 11 These installation and operating instructions apply to general installations. All information is supplied without guarantee. Heckert Solar GmbH shall assume no liability for the usability and functionality of the system if there are deviations from the instructions contained in this user information. Given that neither compliance with this user information, nor the...
- Page 12 Excerpt from MC4 crimping instructions (Multi-contact source)
- Page 17 Heckert Solar GmbH • Carl-von-Bach-Straße 11 • D-09116 Chemnitz...
